Zundapp 281 - Page 46

Carburettors for Engines 267, 276
(KS
50
Super,
Sport-Combinette
and
Super-Combinette
433)

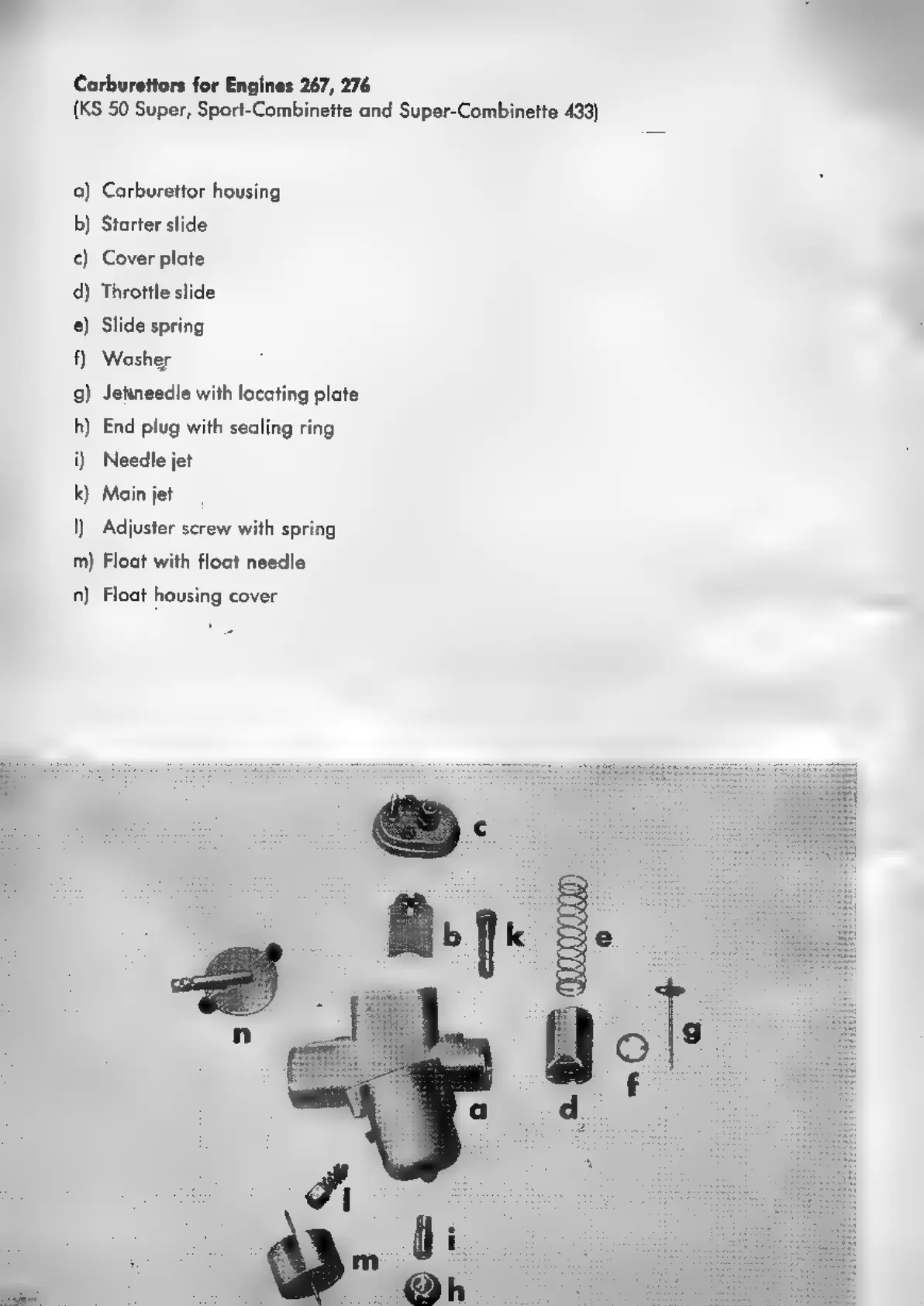

a) Carburettor housing
b) Starter slide
d Cover plate
d) Throttle slide
e) Slide spring
D Washer
g) Jehneedle with locating plate
h) End plug with sealing ring
i) Needle jet
k) Main jet
1) Adjuster screw with spring
m) Float with float needle
n) Float housing cover
