Zundapp 281 - Page 47

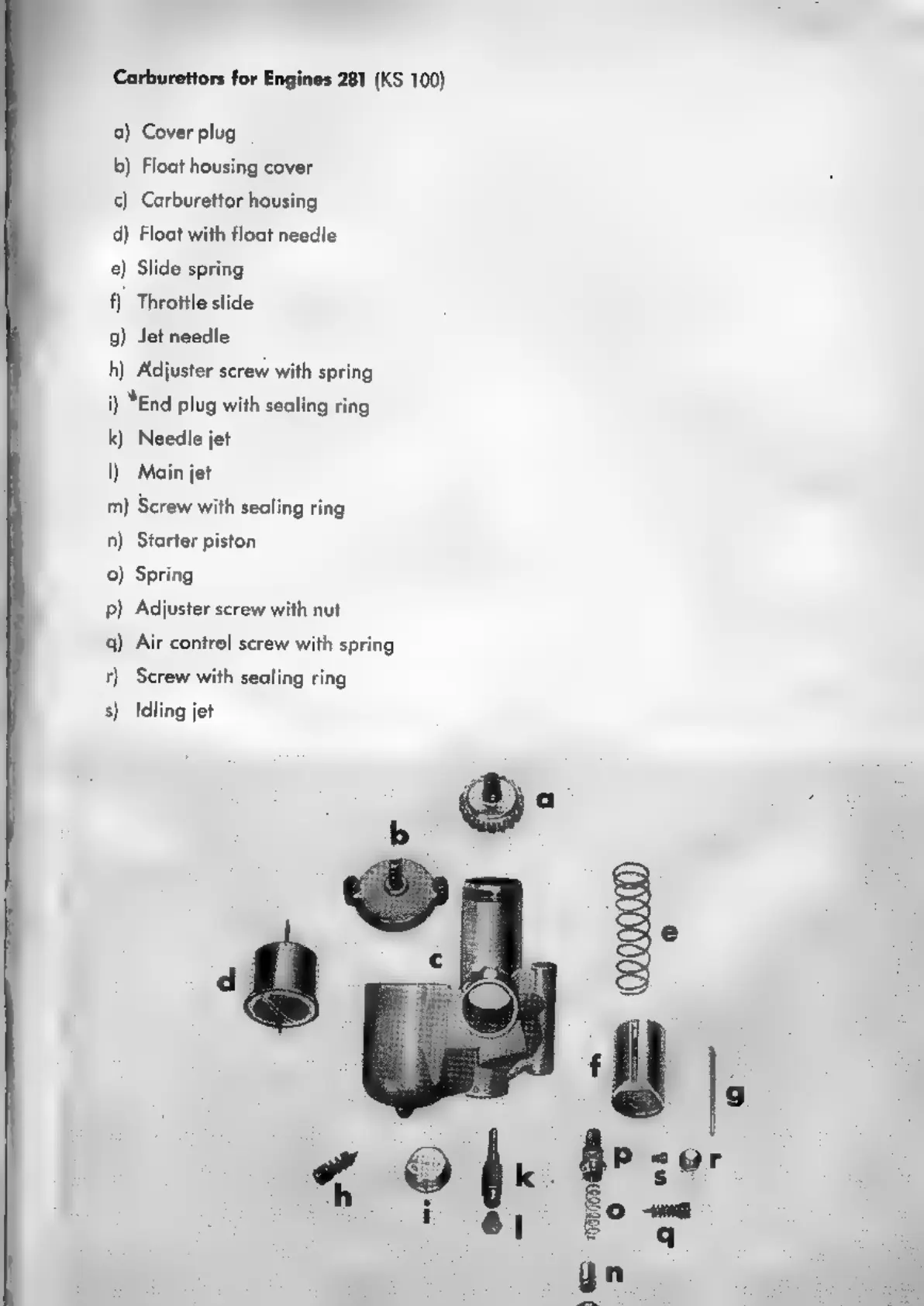

Carburettors
for
Engines
281
(KS
100)
a) Cover plug
b) Float housing cover
d Carburettor housing
d) Float with float needle
e) Slide spring
f) Throttle slide
g) Jet needle
h) Adjuster screw with spring
i) *End plug with sealing ring
k) Needle jet
I) Main jet
m) Screw with sealing ring
n) Starter piston
o) Spring
p) Adjuster screw with nut
a)
Air
control
screw
with
spring
r)
Screw
with
sealing
ring
s) Idling jet
