Zundapp 281 - Page 8

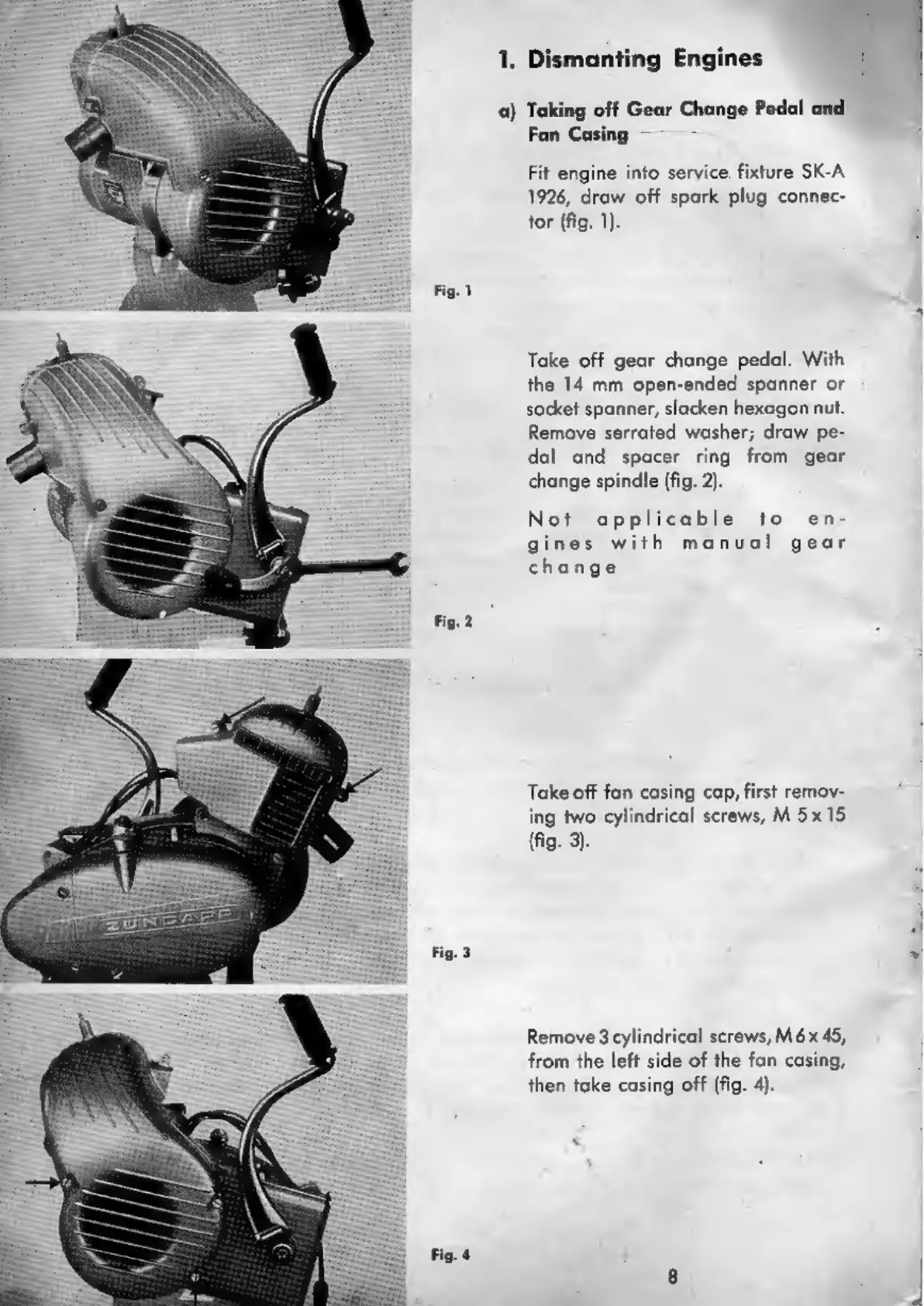

Fig. 1
Fig. 2
Fig. 3
Fig. 4
1. Dismanting Engines
a) Taking off Gear Change Pedal and
Fan Casing
Fit engine into service fixture SK-A
1926, draw off spark plug connec-
tor (fig. 1).
Take off gear change pedal. With
the 14 mm open-ended spanner or
socket spanner, slacken hexagon nut.
Remove serrated washer; draw pe-
dal and spacer ring from gear
change spindle (fig. 2).
Not applicable to en-
gines with manual gear
change
Take off fan casing cap, first remoy-
ing two cylindrical screws, M 5x 15
(fig. 3).
Remove 3 cylindrical screws, M6x 45,
from the left side of the fan casing,
then take casing off (fig. 4).
2
|
|
