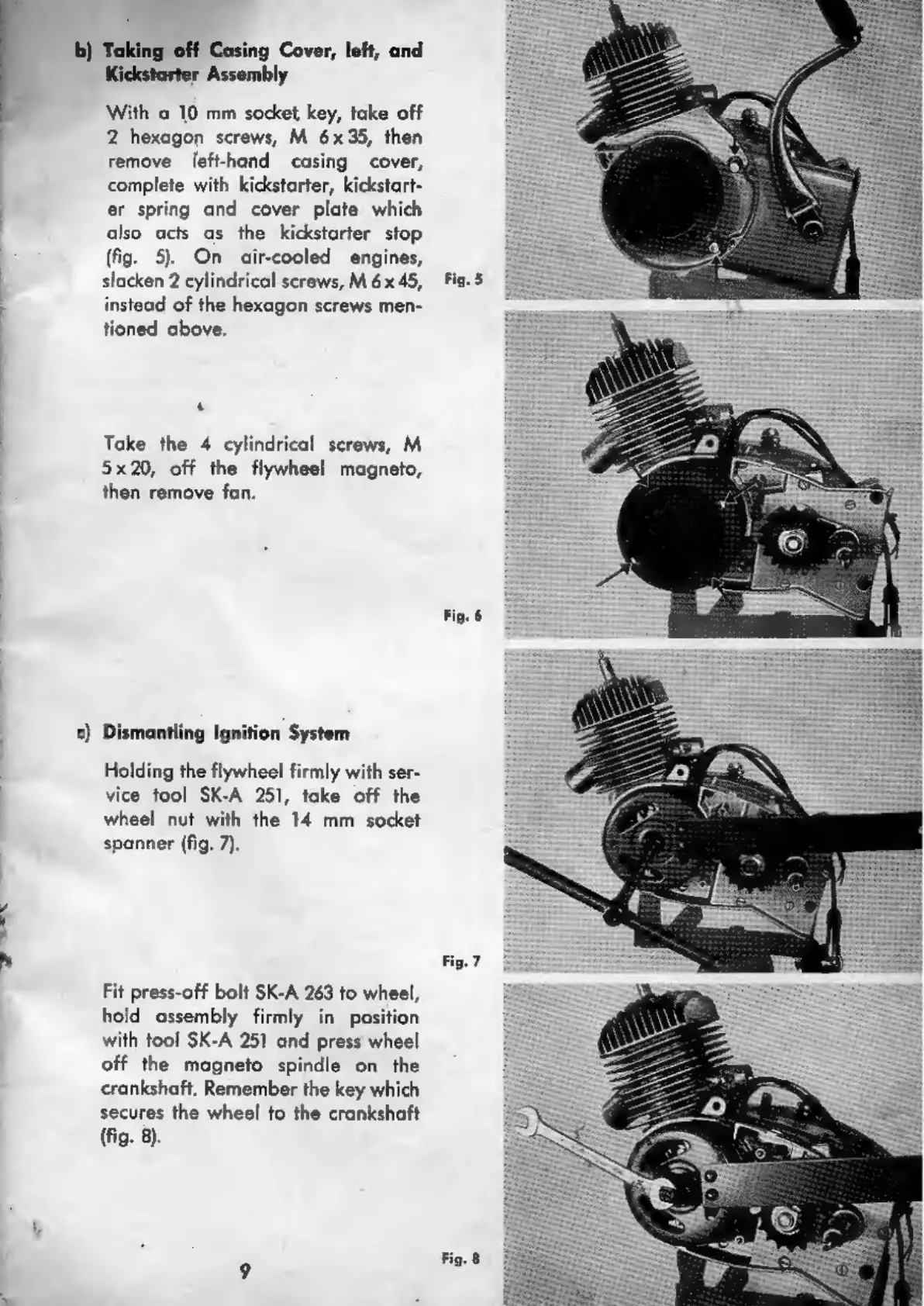

b) Taking off Casing Cover, left, and
Kickstarter Assembly
With a 10 mm socket key, take off
2 hexagon screws, M 6x35, then
remove left-hand casing cover,
complete with kickstarter, kickstart-
er spring and cover plate which
also acts as the kickstarter stop
(fig. 5). On air-cooled engines,
slacken 2 cylindrical screws, M 6x 45,
instead of the hexagon screws men-
tioned above.
Take the 4 cylindrical screws, M
5x20, off the flywheel magneto,
then remove fan.
d
Dismantling Ignition System
Holding the flywheel firmly with ser-
vice tool SK-A 251, take off the
wheel nut with the 14 mm socket
spanner (fig. 7).
Fit press-off bolt SK-A 263 to wheel,
hold assembly firmly in position
with tool SK-A 251 and press wheel
off the magneto spindle on the
crankshaft, Remember the key which
secures the wheel to the crankshaft
(fig. 8).
Fig. 5
Fig. 6
Fig. 7
Fig. 8
