6
PROCEPTOR
OWNER'S MANUAL

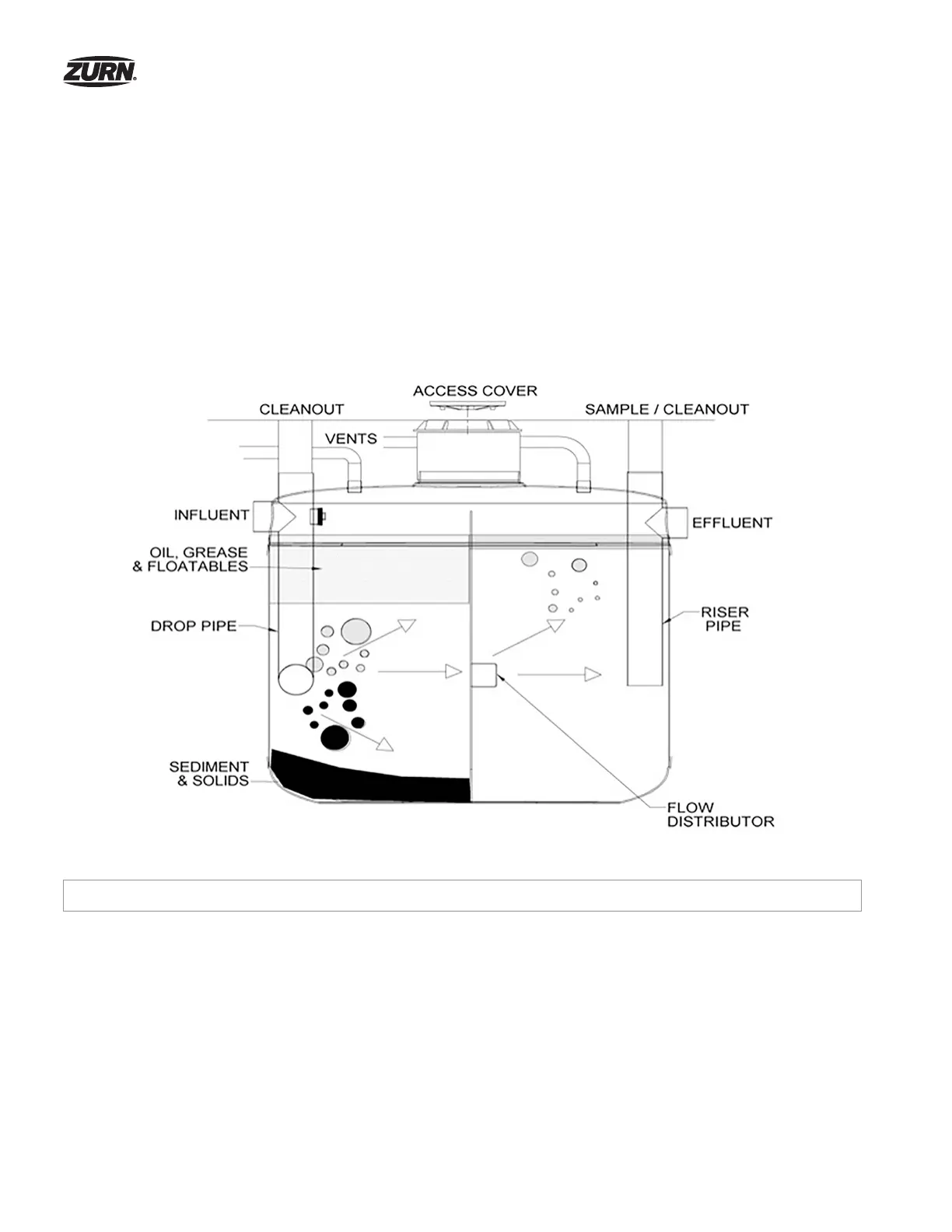

Figure 3: Proceptor operation: process flow dynamic
1.4 OPERATION
Wastewater enters the unit through an inlet drop pipe, typically a 4" or 6" PVC sewer pipe, which discharges the wastewater
below the normal liquid surface in the tank (see Figure 3). The inlet drop pipe is configured to discharge wastewater
horizontally along the tank walls.
Upon entering the tank, oil, grease and other liquids with a specific gravity less than water rise to the surface in the first
chamber, while suspended solids settle to the bottom by gravity. The wastewater then flows into the second chamber by a
means of a flow distributor on the bae wall (or riser pipe into the second tank), ensuring a smooth flow path, where further
separation occurs. Cleaner water from the middle elevation of the tank is displaced through the riser pipe into the downstream
sewer system.
Maintenance is performed by a licensed liquid disposal company using a vacuum or pump truck.
