18
PROCEPTOR®
TECHNICAL MANUAL
BACK TO TOC

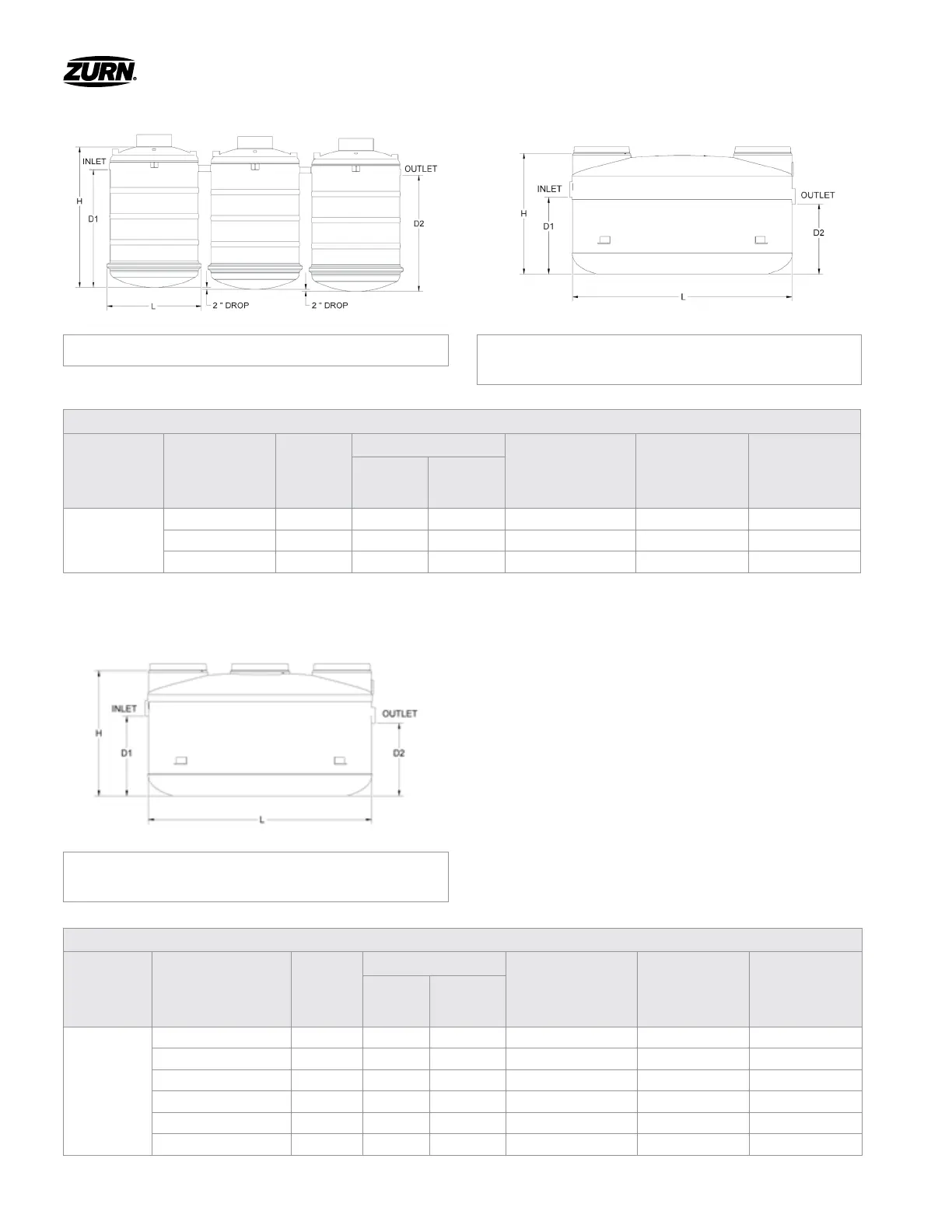

System 3 : Three Tanks in Series Systyem 4 : UPC | IAPMO Approved
(Dual Accessway, Single Tank or Two Tanks in Se ries Design)
Standard Oil Separator with Single Accessway
System
Type
Model
Number
Total
Liquid
Capacity
(US gal)
Storage Capacity Tank Dimension
L x W x H
(inches)
Inlet to Tank
Bottom, D1
(inches)
Outlet to Tank
Bottom, D2
(inches)
Oil
(US gal)
Sediment
(US gal)
System 3:
Three Tanks
in Series
OMC 8000(3) 8,000 3,810 2,707 3 (94 x 94 x 132) 102 100
OMC 9000(3) 9,000 4,324 3,139 3 (94 x 94 x 143) 113 111
OMC 10000(3) 10,000 4,795 3,700 3 (94 x 94 x 166) 125 123
Systyem 5 : UPC | IAPMO Approved
(Triple Accessway, Single Tank or Two Tanks in S eries Design)
UPC / IAPMO Oil Separator with Triple Accessway (US onlv)
System
Type
Model
Number
Total
Liquid
Capacity
(US gal)
Storage Capacity Tank Dimension
L x W x H
(inches)
Inlet to Tank
Bottom, D1
(inches)
Outlet to Tank
Bottom, D2
(inches)
Oil
(US gal)
Sediment
(US gal)
System 5:
Three Tanks
in Series
OMC 500 UPC 500 279 125 96 x 62 x 55 33 30
OMC 750 UPC 750 521 125 96 x 62 x 68 46 43
OMC 1000 UPC 1,000 782 125 96 x 62 x 82 60 57
OMC 1300 UPC 1,300 1,061 125 96 x 62 x 97 75 72
OMC 2000(2) UPC 2,000 1,564 250 2 (96 x 62 x 82) 60 57
OMC 2600(2) UPC 2,600 2,122 250 2 (96 x 62 x 97) 75 72
3.4.4 UPC | IAPMO OIL SEPARATOR CAPACITY AND DIMENSIONS
