Side Eects
Use of the Mouthpiece may trigger a
pharyngeal reflex (laryngeal spasm) in
hypersensitive patients, or if it is not
placed correctly within the oral cavity.
How Supplied
Isolite
The Isolite Illuminated Dental Isolation
System contains: Titanium Control Base,
LED Smart Stick, 6 Vacuum Light Pipes,
Power Hose, Power Supply, Plug Adapter
Kit (for specific countries), Instructions
for Use.
Accessories: Suction Line Plug, Mouthpiece
Lubricant, Y-adapter Kit, Double End Tube
Brush, and O-ring Maintenance Kit.
Mouthpieces
Mouthpieces (sold separately) are supplied
in convenient operatory boxes. Each
Mouthpiece is individually packaged.
Installation
Isolite is designed to install easily in most
dental operatories (Figure 1). Installation
and usage instructions, including a video
demonstration, are also available at
zyris.com.
Step 1 Connect the Power Hose to the
vacuum canister by fitting the end of the
vacuum hose onto an auxillary HVE port
on the vacuum canister. If an auxillary HVE
port is not available, use the provided
Y-adapter, so that the standard HVE hose
may remain connected.
Control
Head
Vac Canister
Hose
HVE Port 2
HVE Port 1
Power
Jack
Standard
HVE Hose
Power Hose
Vac Canister

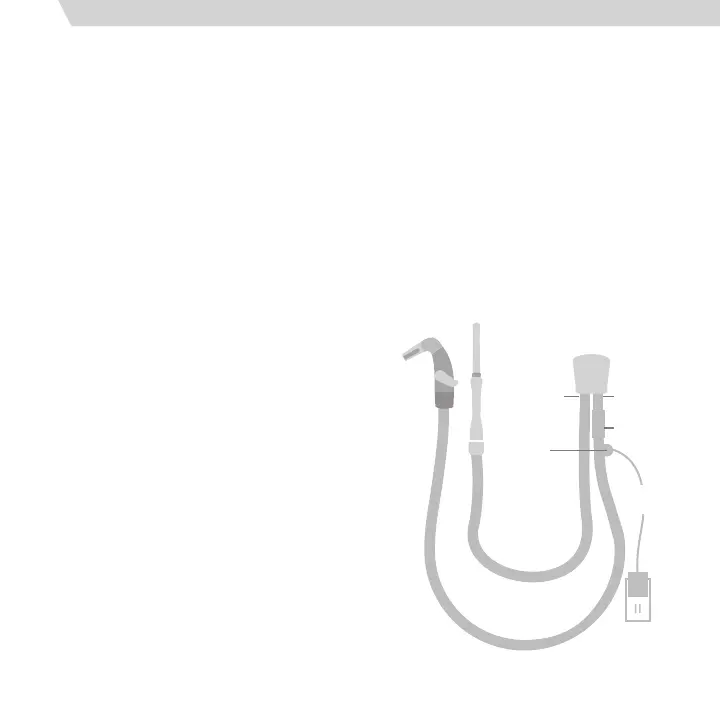

Figure 1. Installation
Power
Adapter
