Power supply, ignition, and IO signal
The power supply should come from batteries or direct current.
1. When in a vehicle, power supply can come from the vehicle batteries through the fuse box.
2. When using a battery or DC power supply, the output voltage range should be within 9-36V.
3. ACC should connect to vehicle ignition controller.
Speed signal and Serial ports
The vehicle speed can be read from an CAN port or GPS.

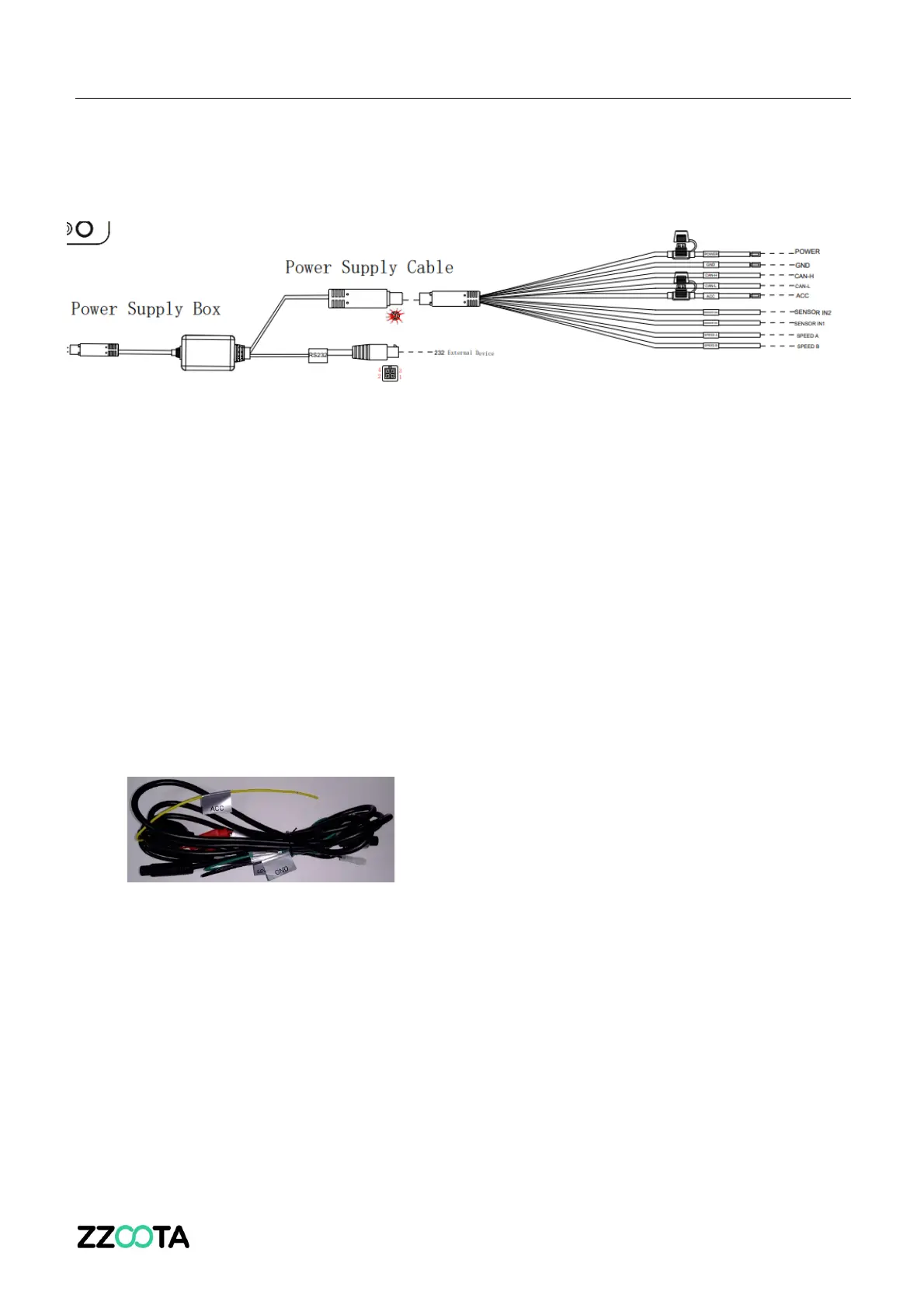

Connect power supply and ignition signal wire
1. Connect the ACC line on the 10PIN power cord with the vehicle ignition signal line.
Important hint:
1. Before connecting the ACC cable to the ignition wire of the vehicle, make sure that the
vehicle is turned off.
2. The power cord should be directly connected to the vehicle battery. The power cord is
still 9-36V after the ACC is turned off.
