7
2

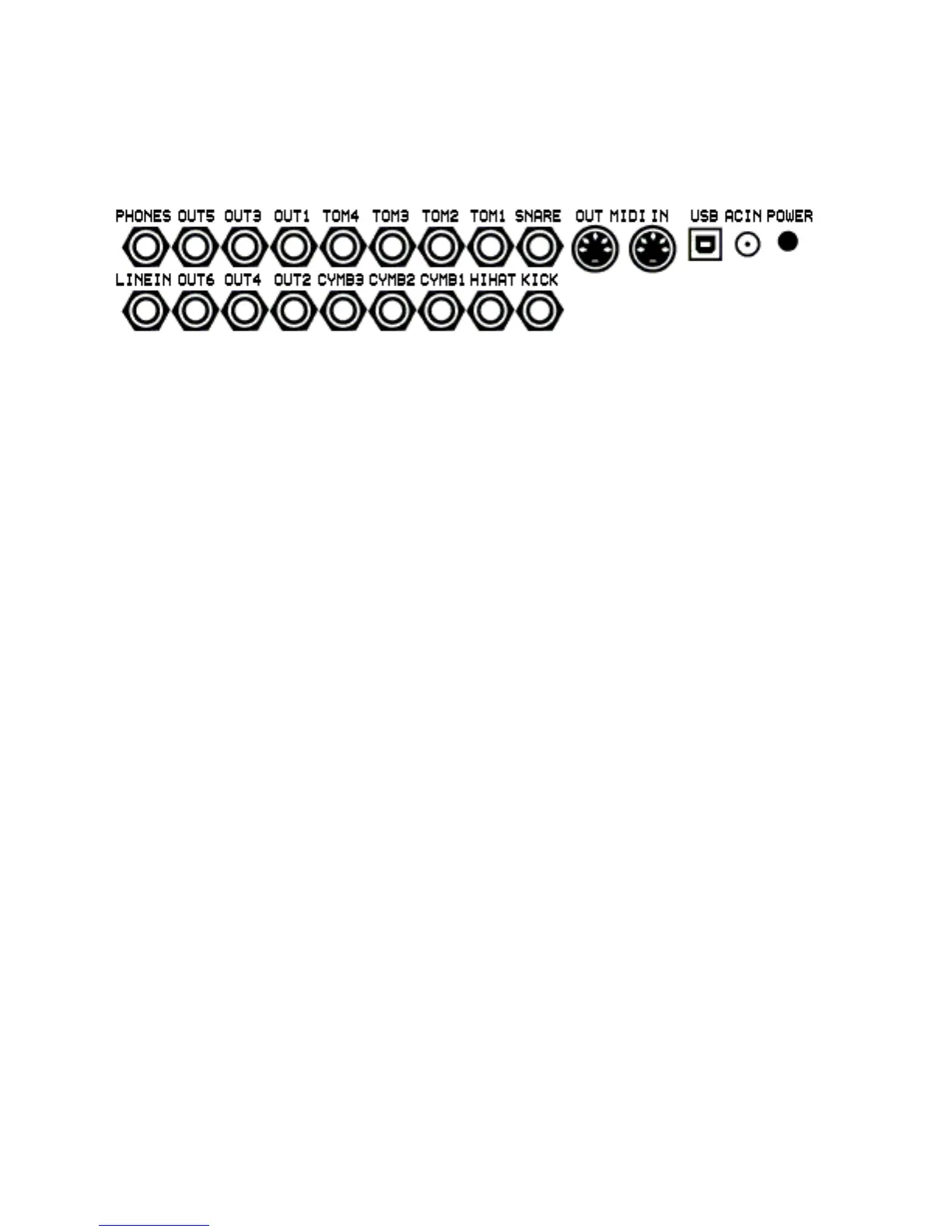

Rear Panel
Layout
Power
POWER Power on / off button.
AC IN Input for the 18 V AC power adapter.
Warning! Connecting a power adapter with a voltage higher
than 18 V AC or any DC voltage can damage the DrumIt Five.
Data Ports
USB USB device port for connecting to a USB host.
MIDI IN Input for data from other MIDI equipment.
MIDI OUT Output for data to other MIDI equipment.
The USB version is 1.1 full-speed (12 Mbits / sec), compatible with
USB 1.1 and 2.0 hosts. The DrumIt Five is implemented as a
standard USB mass storage device, so no device drivers are needed
for the major operating systems. When the DrumIt Five is in USB
mode and connected to a host computer, it will appear as an
external storage device.
