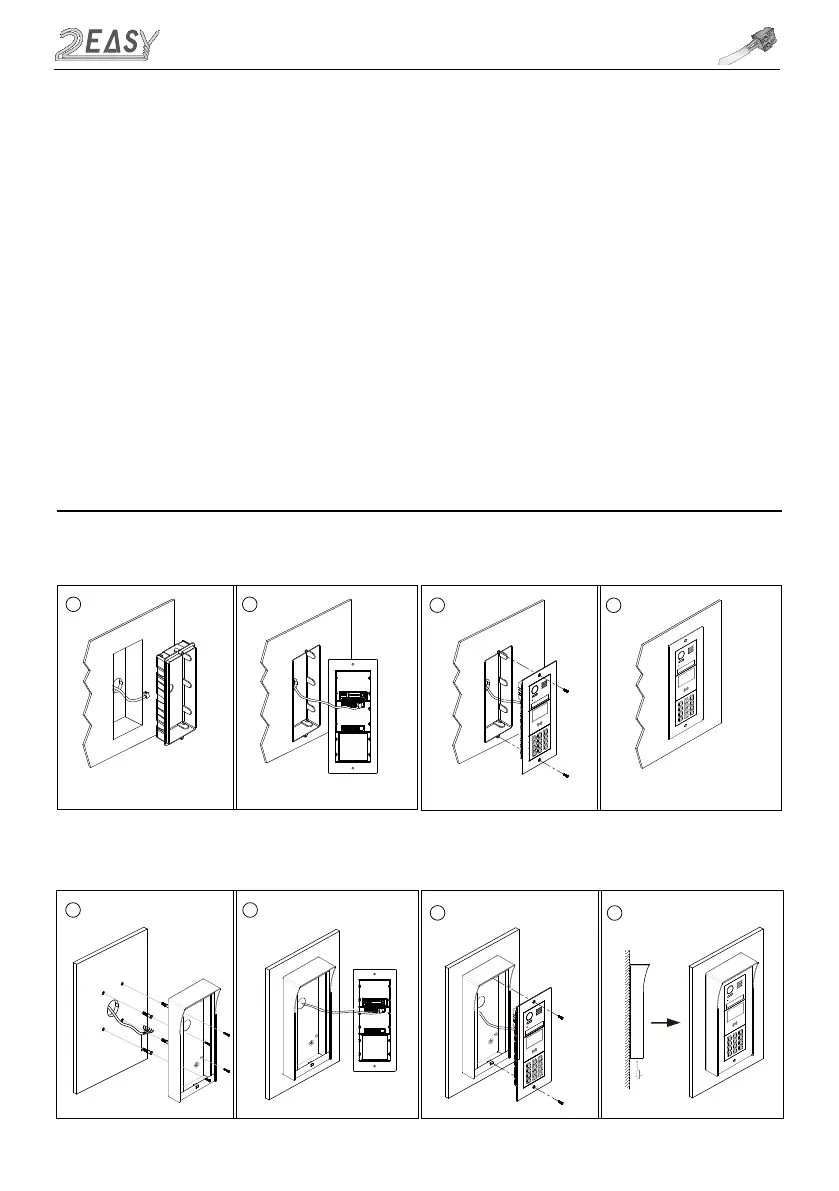

4. Mounting
INSTALLATION GUIDE
Flush mounting
Surface mounting
1 2
3
4
Cut a hole and install the wall box
Final result
Use screws to fasten the panel
Connect and plug bus line connector with cable
1 2
3
4
Unlock timing: 1~99s
Working temperature: - 20ºC ~ +55ºC
Wiring: 2 wires (no-polarity)
Dimension: H316×W133×D48mm(3-Modules)
H232×W133×D48mm(2-Modules)
