16 CHAPTER 1: INTRODUCING THE SUPERSTACK 3 SWITCH 3226 AND SWITCH 3250
Switch — Rear
View Detail

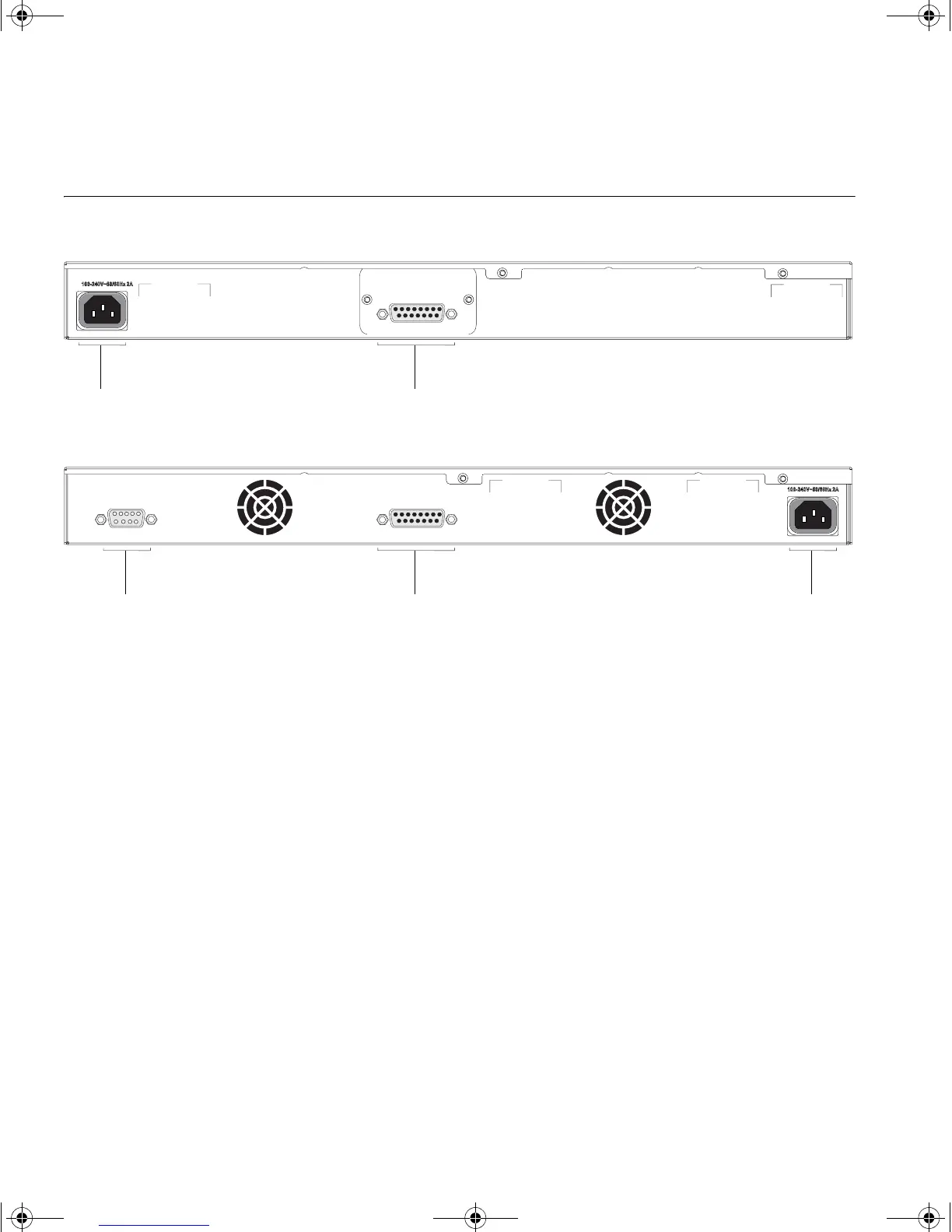

Figure 3 Switch 3226 — rear view
Figure 4 Switch 3250 — rear view
Power Socket The Switch automatically adjusts its power setting to any supply voltage
in the range 100-240 VAC.
Redundant Power
System Socket
To protect against internal power supply failure, you can use this socket
to connect the Switch to a SuperStack 3 Advanced Redundant Power
System. See “Connecting a Redundant Power System” on page 24.
Console Port
(Switch 3250)
The console port allows you to connect a terminal and perform remote or
local out-of-band management. The console port uses a standard null
modem cable and is set to auto-baud, 8 data bits, no parity and 1 stop
bit.
Power Socket Redundant Power System Socket
Console Port Redundant Power System Socket
Console
19200,8,1,N
Power Socket
