7

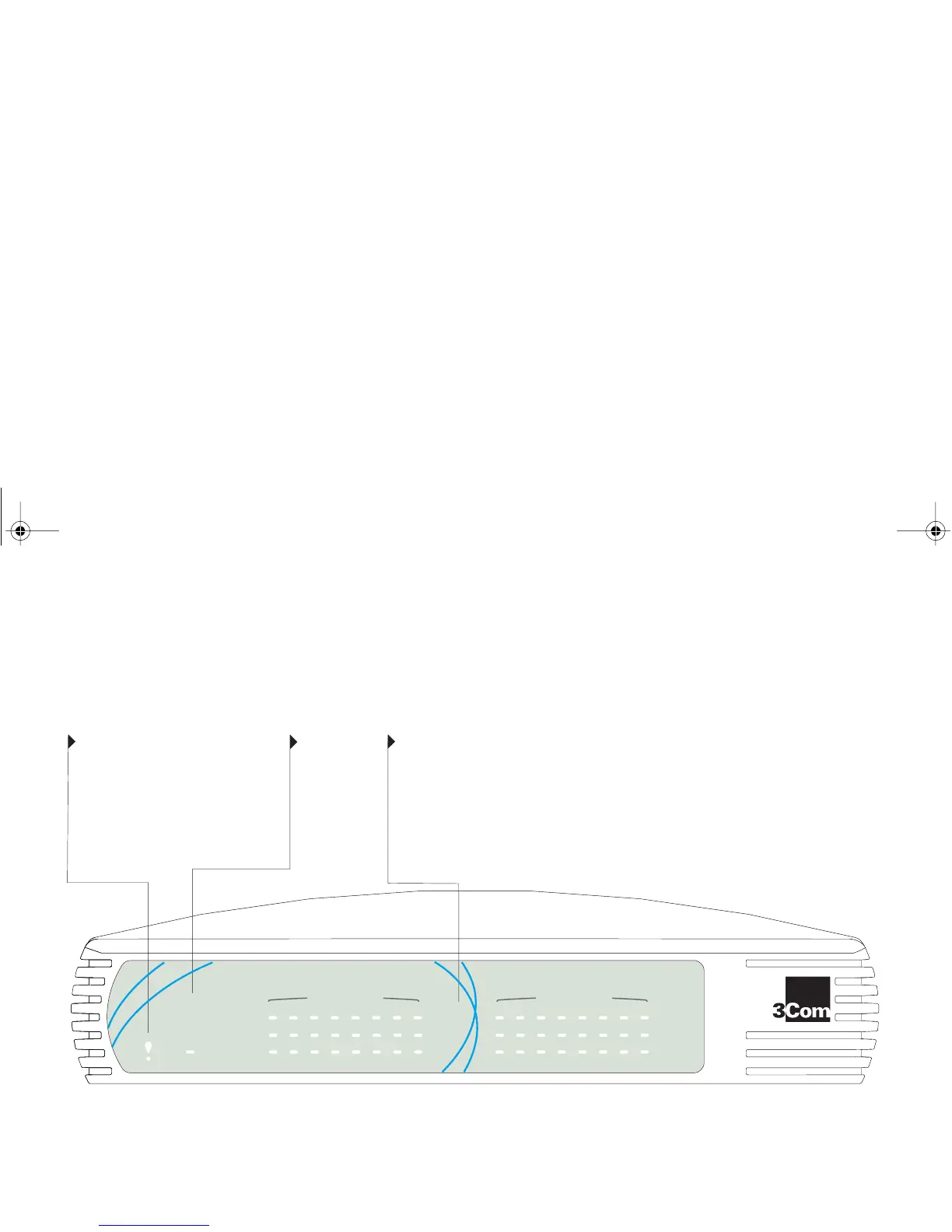

Dual Speed Switch 8 and Dual Speed 16—Front
Alert
Power
1
2
3
4
5
6
7
8
10/100 Base - TX
9
10
11
12
13
14
15
16
OfficeConnect Dual Speed Switch 16
10/100 Base - TX
Link : On=OK, Flash=Activity
Speed : On=100M
Duplex : On=Full
Alert LED
orange
Off when the unit is operating correctly.
Flashes for a short period of time after
power on, for self test.
If the LED is continuously lit, there may
be a problem. Refer to the “Problem
Solving” section.
Power LED
green
Indicates that
the power
supply to the
switch is
present.
Link/Activity, Duplex and Speed LEDs
If the is on (green), the link between the port and the next piece of network
equipment is OK. The LED flashes each time a packet passes through the port.
If the LED is off, the port does not have anything connected to it, or the connected device is
switched off. If you have made a connection to the port and the LED is off, there may be a problem
with the connection (refer to the “Problem Solving” section).
If the is on (yellow), the port is in full duplex mode. If off, it’s half duplex.
If the is on (green), the port is operating at 100Mbps. If off, it’s 10Mbps.
Link/Activity LED
Duplex LED
Speed LED
3C16734_Booklet.book Page 7 Tuesday, July 13, 1999 11:05 AM
