46 CHAPTER 5: CONFIGURING THE ROUTER
Internet Settings From these pages, you can configure the settings for your DSL
connection.
Connection Type The Internet Settings screen is used to configure the parameters for your
DSL connection. The information necessary to complete these screens
should be obtained from your ISP. Check with your ISP as for what type of
connection you should choose.

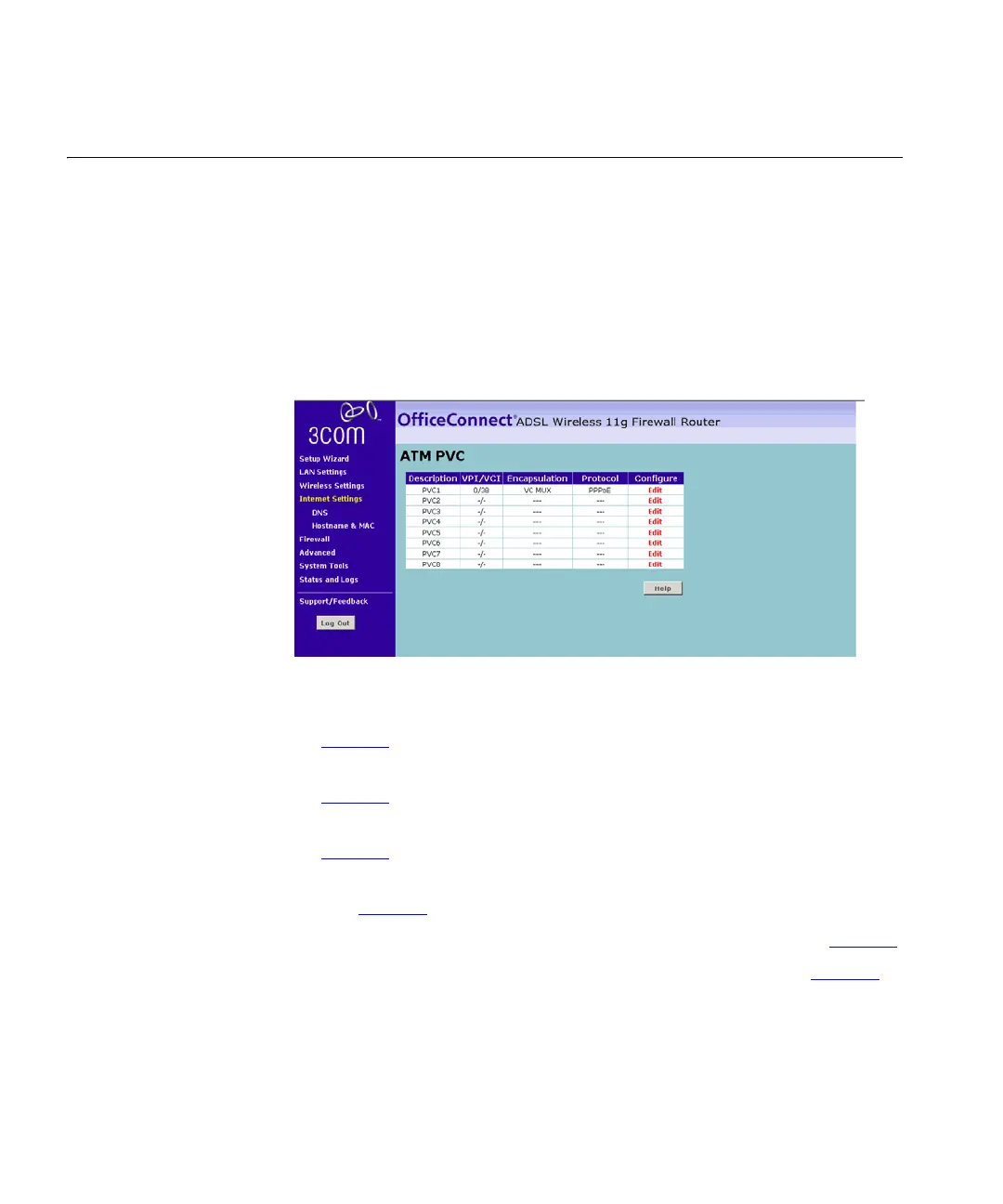

Figure 37 Internet Settings Screen
There are six options available for the DSL connection mode:
■ PPPoE — PPP over Ethernet, providing routing for multiple PCs (see
page 47
)
■ PPPoA — PPP over ATM, providing routing for multiple PCs (see
page 49
)
■ Bridge Mode — RFC1483 Bridged Mode, for single PCs only (see
page 51
)
■ Routing Mode over ATM — RFC1483 Routed Mode, for multiple PCs
(see page 52
)
■ Dynamic/Fixed IP in 1483 Bridge Mode (for multiple PCs) (see page 53)
■ Disable — To disable the Internet connection function (see page 55)
Click Edit to set the detail settings.
