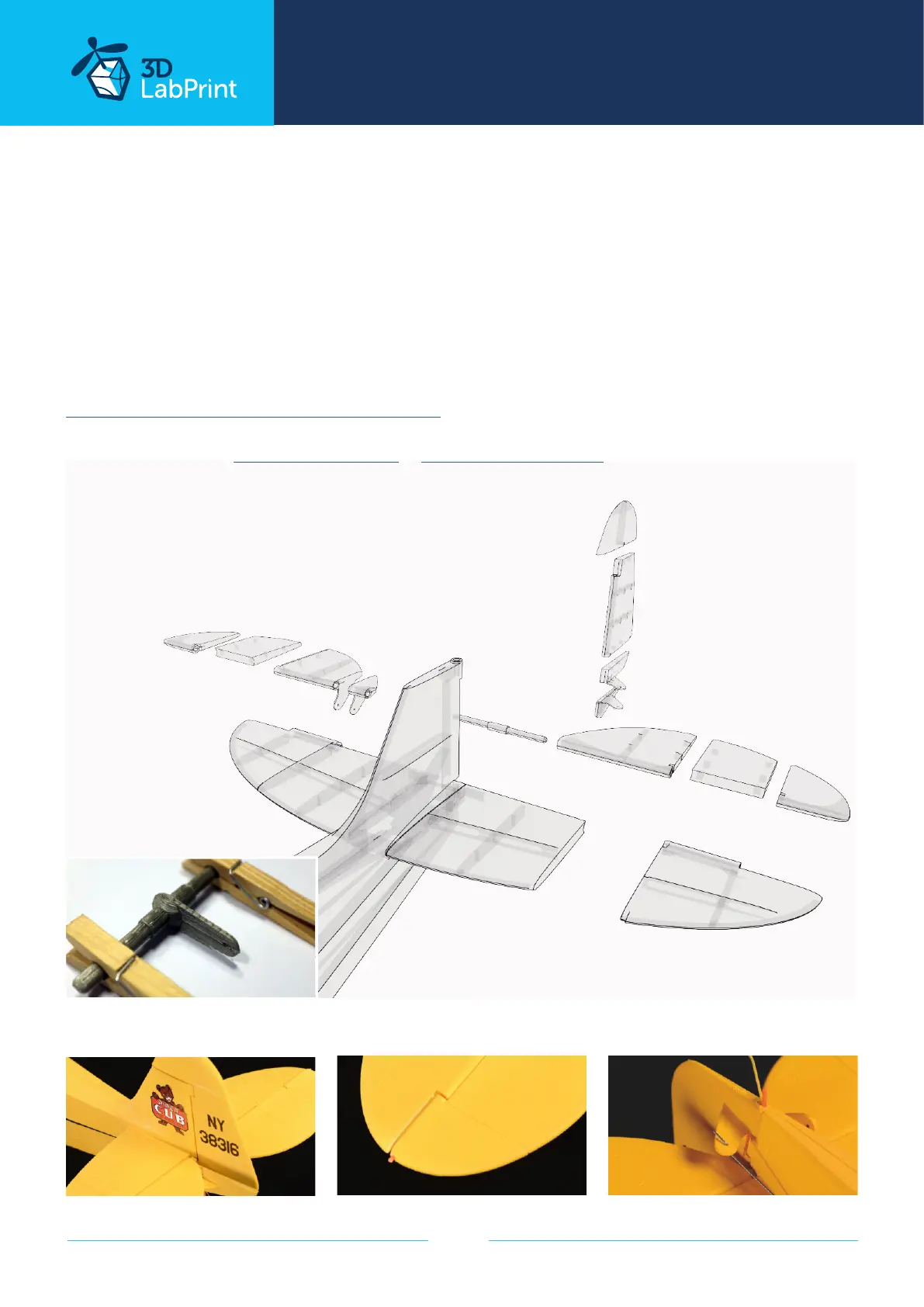

5.2.2 Tail assembly Piper J-3 Cub
Glue L1 and L2 parts of the stabilizer and elevator. The profile is symmetric, so the left and
right sides are identical. Glue the stabilizers perfectly perpendicular to the fuselage. Assemble
both sides of the elevator with the elevator arm on a flat surface. Make a Z bend on the
elevator and rudder 0,5 mm pushrod wire. Mount the elevator assembly to the stabilizer
using the piece of PET filament. Elevator should move freely controlled by the pushrod and
servo. Glue rudder part together and mount to the fuselage by piece of PET filament. Check
the functionality of the elevator and rudder assembly carefully.
See video guide Piper J-3 Cub tail assembly
you will need: CA Glue - medium + Activator for CA Glue
Snap knife, SandPaper Some cloth for wiping CA glue...
2x 0,5 mm steel wire for pushrods
stabiliser L1
2,5g/0.09oz LW
elevator L1
2,1g/0.07oz LW
elevator R
1A, 1B, 2, 3
stabiliser R
complete
elevator L2
1,0g/0.04oz LW
elevator L3
0,9g/0.03oz LW
elevator arm
normal PLA!
1,4g/0.05oz
elevator arm – normal PLA!
Tip: After gluing, the elevator coupling is smoothed into a perfect shape using a drill and sandpaper.
stabiliser L2
2,5g/0.09oz LW
rudder 1
0,5g/0.02oz LW
rudder 3
1,0g/0.04oz LW
rudder2
0,5g/0.02oz LW
rudder 4
1,2g/0.04oz LW
