10 78-8127-6830-3-C

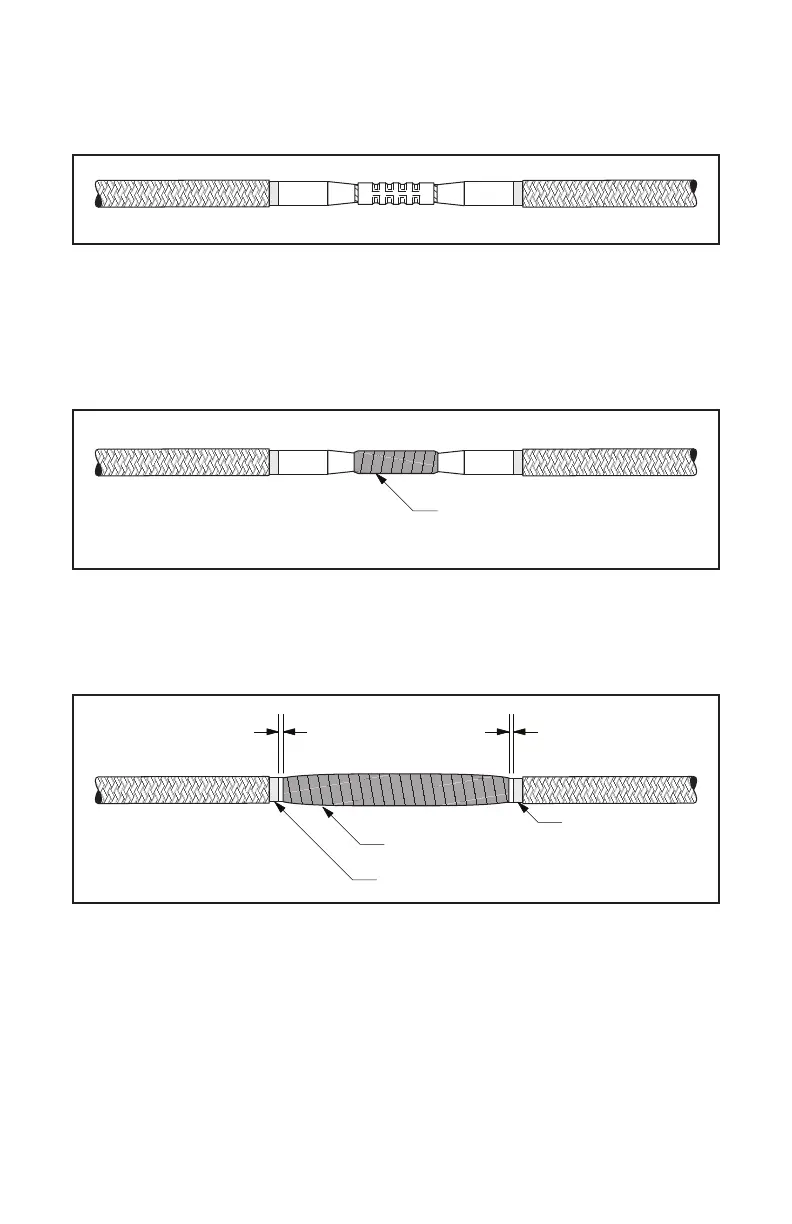

7.0 Connect Phase Conductors
7.1 Join power conductors with proper connectors and appropriate crimping tool.
Make certain conductors butt center indents of connector.
Figure 20
8.0 Apply Primary Insulation
8.1 Apply one half-lapped layer of 3M
™
Temflex
™
Vinyl Electrical Tape 1700P from
edge of taper to edge of taper.
NOTE: Scotch
®
Glass Cloth Tape 27, while not included, may be used at this time.
3M
™
Temflex
™
Electrical Vinyl Tape 1700P
Figure 21
8.2 Apply half-lapped layers of two-thirds-stretched Scotch Linerless
®
Rubber
Splicing Tape 130C (tacky side DOWN) over 1700P tape and up onto tapers.
Build up half-lapped layers of 130C tape until equal to or greater than original
and extending ½" (13 mm) onto existing insulation.
Scotch
®
Linerless Rubber Splicing Tape 130C
Tacky Side DOWN
Color coding
Color coding
1/8"
3 mm
1/8"
3 mm
Figure 22
To Next Page
