3M 3100 - Page 4

4 78-8127-6830-3-C

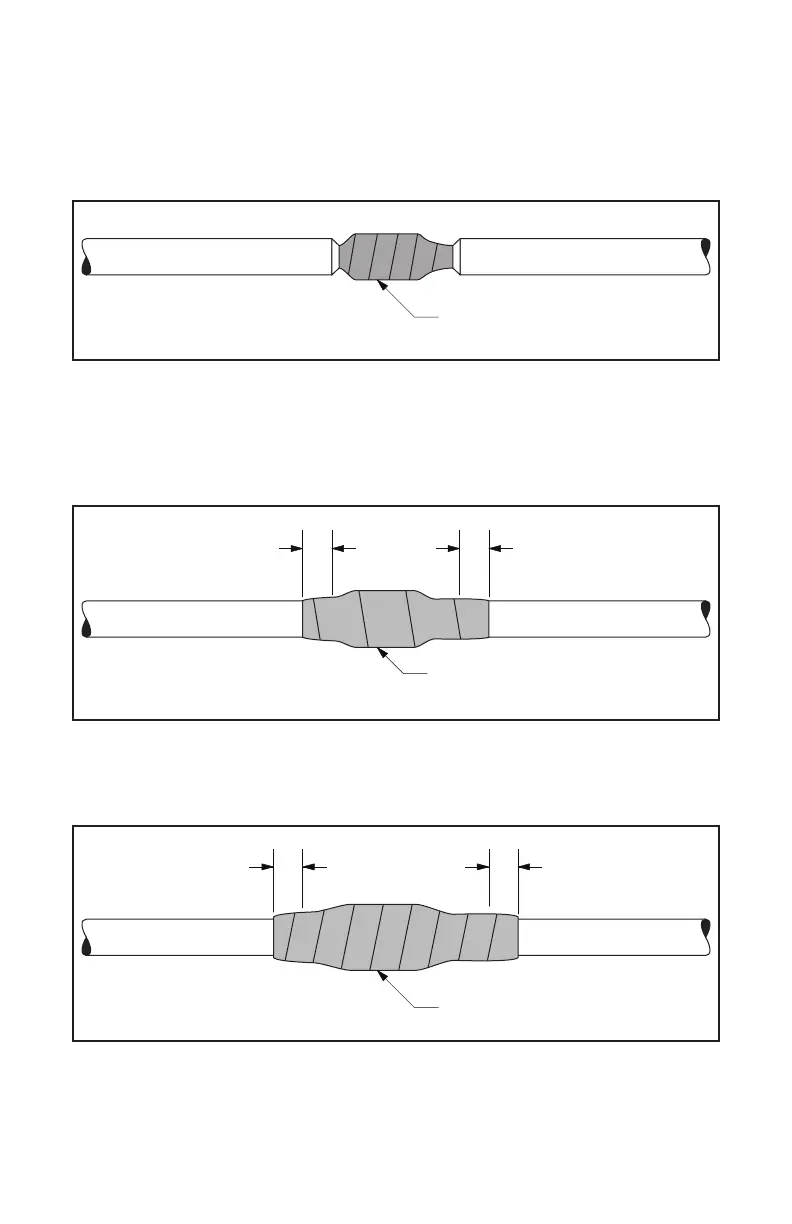

3.0 Replace Insulation
3.1 Apply one half-wrapped layer of 3M
™
Temflex
™
Vinyl Electrical Tape 1700P
from edge of taper to edge of taper.
Note: Scotch
®
Glass Cloth Tape 27 or Scotch
®
Glass Cloth Tape 69, while not
included, may be added and used at this time.
3M
™
Temflex
™
Electrical Vinyl Tape 1700P
Figure 5
3.2 Apply highly-stretched half-lapped layers of Scotch
®
Linerless Rubber Splicing
Tape 130C (tacky side DOWN) over 1700P tape and up onto tapers. Build up
half-lapped layers of tape gradually going out on existing insulation ½" (13 mm)
past top of tapers. Tape should be wrapped to a thickness equal to or greater than
the original insulation.
Scotch
®
Linerless Rubber Splicing Tape 130C
Tacky Side DOWN
½" (13 mm)
past end of taper
½" (13 mm)
past end of taper
Figure 6
3.3 Starting ½" (13 mm) past end of 130C tape apply one half-lapped layer of
1700P tape over the 130C tape, extending ½" (13 mm) past the other end of the
130C tape.
3M
™
Temflex
™
Vinyl Electrical Tape 1700P
½" (13 mm)
past end of
previous layer
½" (13 mm)
past end of
previous layer
Figure 7
