14

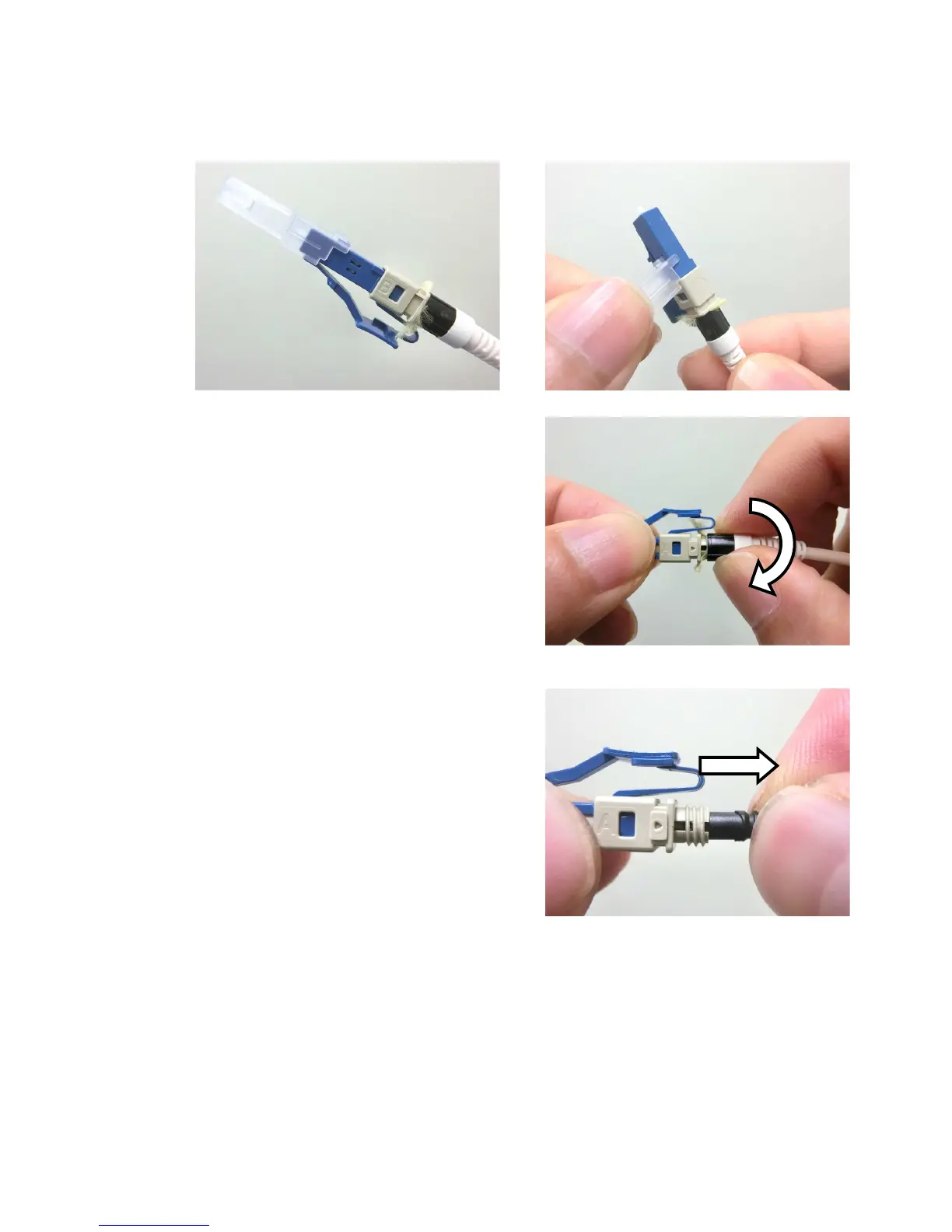

4.0 Connector re-open
4.1 Insert two folks on the dust cap into slots on back side of connector
4.2 Unscrew and remove boot from connector.
4.3 Pull out buffer clamp with fingers then remove fiber
from the connector
