3M APIF100 - Page 29

7-3
Ref.
No.
Description
APIF100
APIF100J
APIF100M
APIF100PT
APIF100MPT
APIF100MJ
APIF150
APIF150J
APIF150M
APIF150PT
APIF150MPT
APIF150MJ
APIF200
APIF200J
APIF200M
APIF200PT
APIF200MPT
APIF200MJ
APIF300
APIF300J
APIF300M
APIF300PT
APIF300MPT
APIF300MJ
1 Control Valve, Complete, Less Bypass Valve W217530-003-0N W217530-003-0N W217750-003-0N W217000-003-0N
2 Bypass Valve V3006 V3006 V3006 V3006
3 Threaded Tank Adapter FA45TX FA45TX FA45TX FA45TX
4 Tank Adapter Coupling 4” x 8 x 2.5” - 8 - - - 2752-2, FA45RX
5 O-ring (Included with Item #3) ORG-234 ORG-234 ORG-234 ORG-234
6 Clamp Assembly FC45XX FC45XX FC45XX FC45XX
7 Media Tank w/ Base MTP1044FB MTP1054FB MTP1254FB MTP1465B
8 Distributor Tube C37S-16-44 C37S-16-54 C37S-16-54 C37S-16-65
9 Filter Media Standard Models
Manganese Models (M)
MC-10P
MC10-MP
MC-075P (X2)
MC-075MP (X2)
MC-10P (2)
MC-10MP (2)
MC-10P (X3)
MC-10MP (X3)
10 Gravel Underbed QC-15P QC-15P QC-18P QC-25P
11 Hydro-charger, Complete HC10 HC10 HC10 HC10
12 Quick Release Clip QRC20 QRC20 QRC20 QRC20
13 Air Check Cap HC10-2 HC10-2 HC10-2 HC10-2
14 Air Check HC10-10 HC10-10 HC10-10 HC10-10
15
O-ring; Bypass Screw HC10-4 HC10-4 HC10-4 HC10-4
16
Bypass Screw HC10-5 HC10-5 HC10-5 HC10-5
17
Screw Retainer HC10-6 HC10-6 HC10-6 HC10-6
18 Nipple; 1” NPT (Qty 2, Includes Items #12 & 20) PKNPL100 PKNPL100 PKNPL100 PKNPL100
19 Nipple; 1” Barbed (Qty 2, Includes Items #12 & 20) PKNPL100-BARB PKNPL100-BARB PKNPL100-BARB PKNPL100-BARB
20 O-ring ORG-214 ORG-214 ORG-214 ORG-214
21 Nipple Kit (Includes Items #12, 18, 19, & 20) IKIT-BARB IKIT-BARB IKIT-BARB IKIT-BARB
22 Repair Kit (Includes Items #14 & 15) HC10-RK HC10-RK HC10-RK HC10-RK

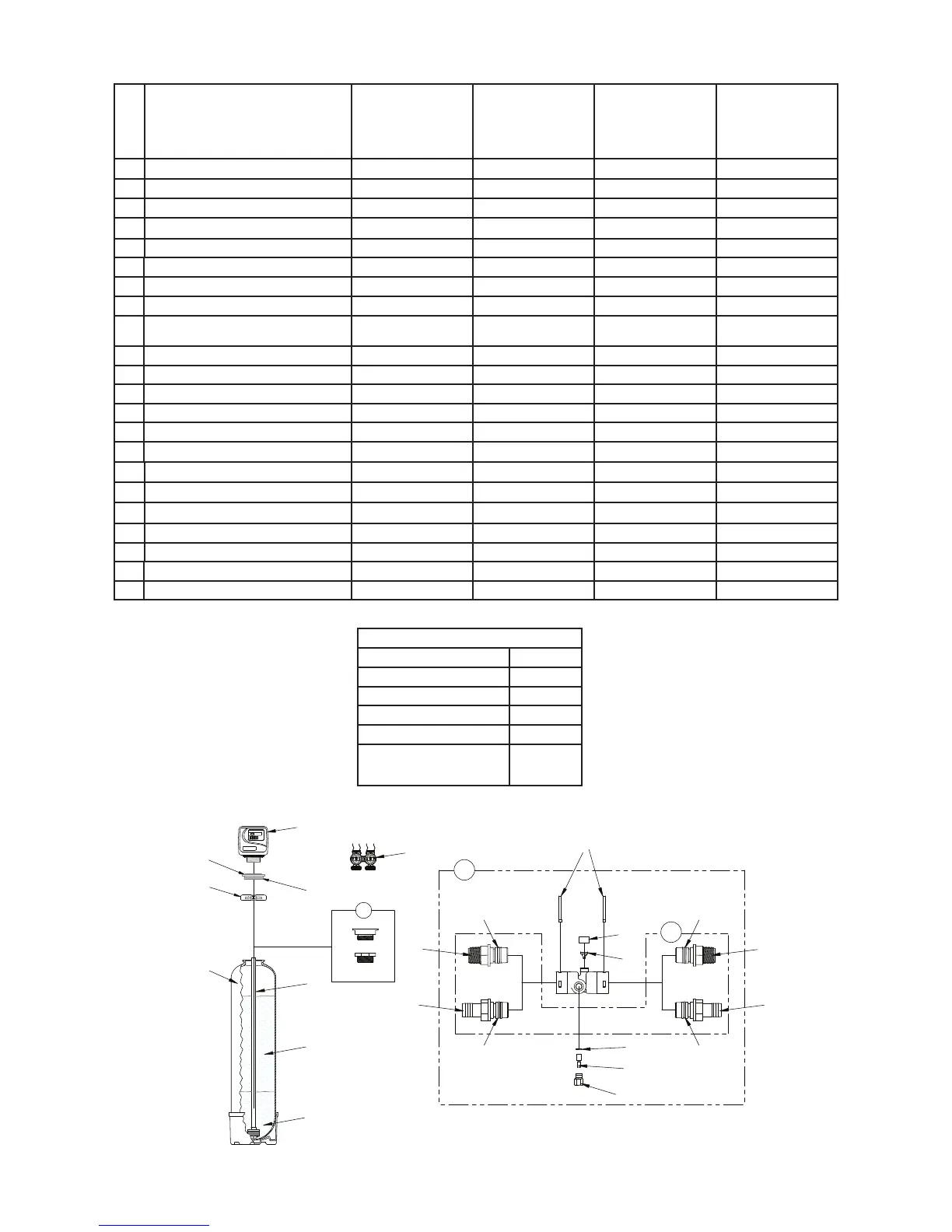

SECTION 7: COMPONENT PARTS LIST
1
10
7
6
3
9
8
5
2
11
21
12
13
14
15
16
17
18
19
18
19
2020
20
20
4
OFF
OFF
OFF
OFF
Items Not Shown
Description of Item Part Number
Wrench V3193-01
Vertical Bypass Adapter V3191-01
Funnel U1006
Tube Extension Device and Cap CENTERTOOL
1” Plumbing Connection Fitting
- Straight Male NPT Fitting
- Straight Brass Sweat Connection
V3007-04
V3007-02
* see assembly drawings for individual components.
