SECTION 7: COMPONENTS ASSEMBLIES

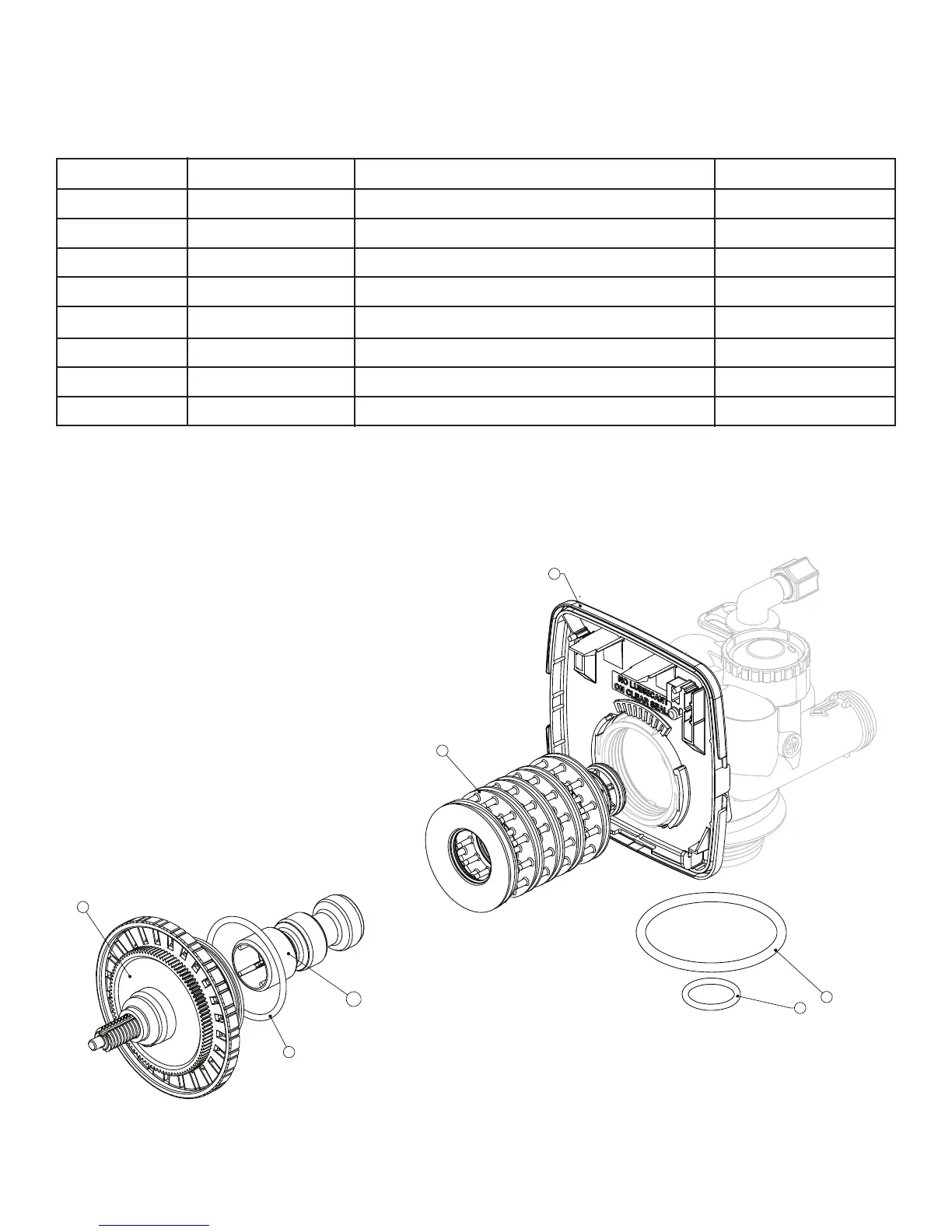

IRON REDUCTION SYSTEM ASSEMBLIES AND COMPONENTS DRIVE CAP ASSEMBLY,
DOWNFLOW PISTON, AND SPACE STACK ASSEMBLIES
Reference No. Part No. Description Quantity
1 V3005 Spacer Stack Assembly 1
2 V3004 Drive Cap Assembly 1
3 V3178 Drive Back Plate 1
4 V3001 Piston Downfl ow Assembly 1
6 V3135 O-ring 228 1
7 V3180 O-ring 337 1
8 V3105 O-ring 215 Pilot Tube 1
NOT SHOWN V3001 Downfl ow body Assembly 1
7-4
2
4b
6
1
7
3
8
4a
4
