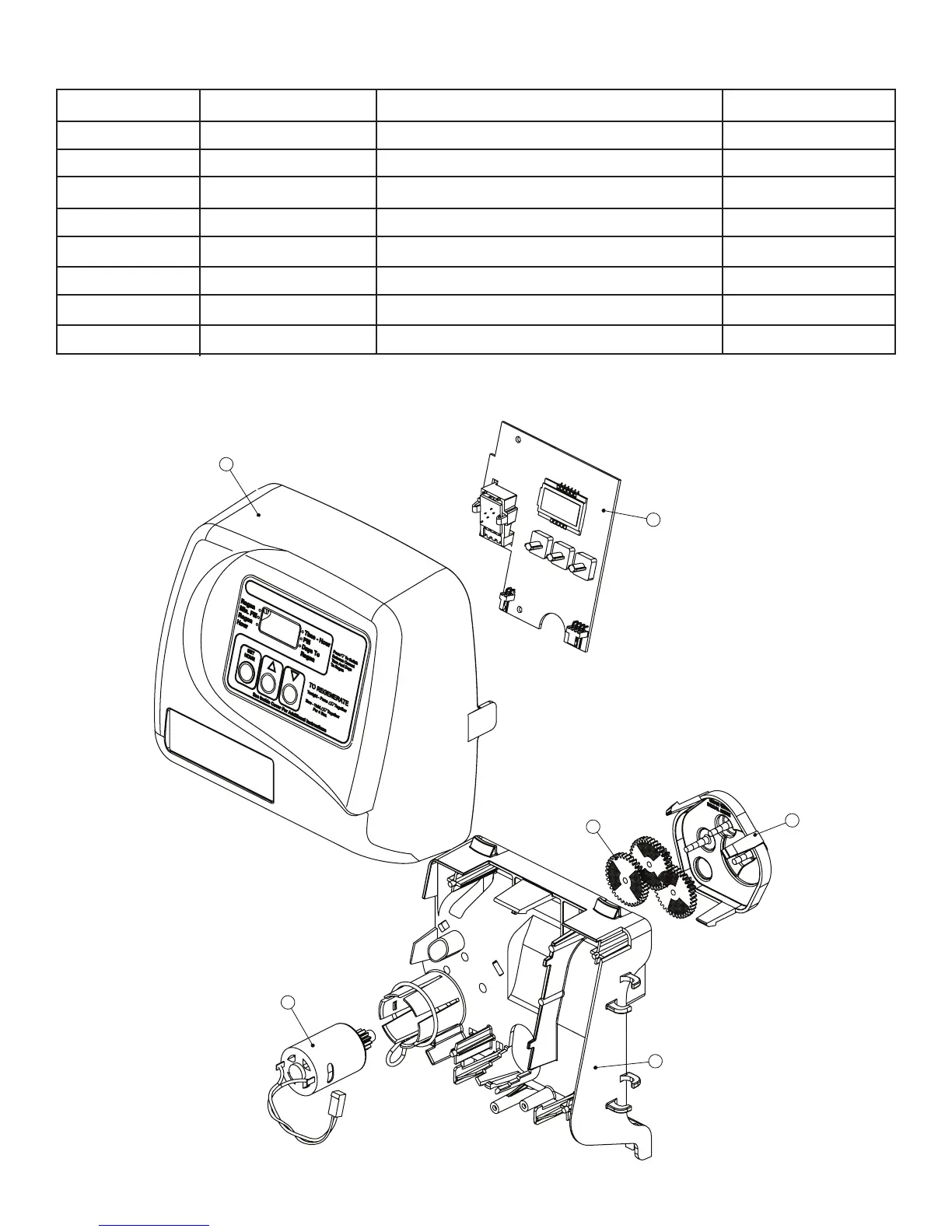

SECTION 7: FRONT COVER AND DRIVE ASSEMBLY
Reference No. Part No. Description Quantity
1 V3175TC-01 Time Clock Front Cover Assembly 1
2 V3107-01 Motor 1
3 V3106-01 Drive Bracket & Spring Clip 1
4 V3108TC Time Clock PC Board 1
5 V3110 Drive Gear 12 x 36 1
6 V3109 Time Clock Cover 1
V3002TC Time Clock Drive Assembly 1
NOT SHOWN V3186 AC Adapter 110V - 12V 1
Drawing number parts 2 through 6 may be purchased as a complete assembly, part V3202.
7-5
1
4
3
2
6
5
