3M APIF100 - Page 34

7-8
4
6
5
2
7
1
3
Water
Flow

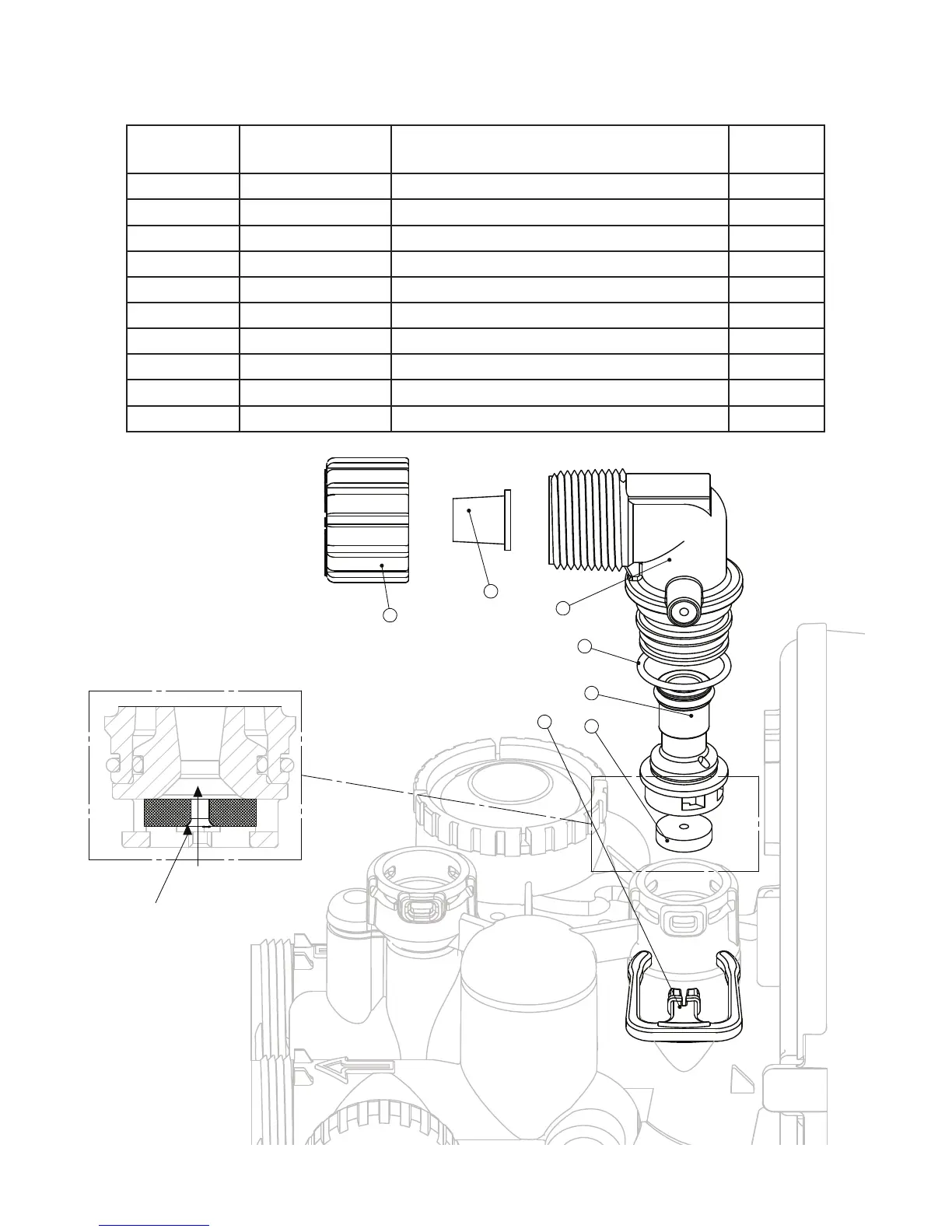

Proper DLFC orientation
directs water flow towards
the washer face with
rounded edge.
Reference
No.
Part No. Description Quantity
1 H4615 Elbow Locking Clip 1
2 PKP10T58S-BLK 5/8” Insert Sleeve 1
3 V3192 Quick Connect 3/4” Drain Elbow Nut 1
4 V3158-01 Quick Connect 3/4” Drain Elbow 1
5 V3163 O-ring 019 1
6 V3159-01 Drain Line Flow Control Retainer Assembly 1
7 V3162-042 4.2 gpm Drain Line Flow Control Button 1
7 V3162-053 5.3 gpm Drain Line Flow Control Button 1
7 V3162-075 7.5 gpm Drain Line Flow Control Button 1
7 V-3262-100 10.0 GPM Drain Line Flow Control Button 1
