SECTION 7: INSTALLATION FITTING AND ASSEMBLIES

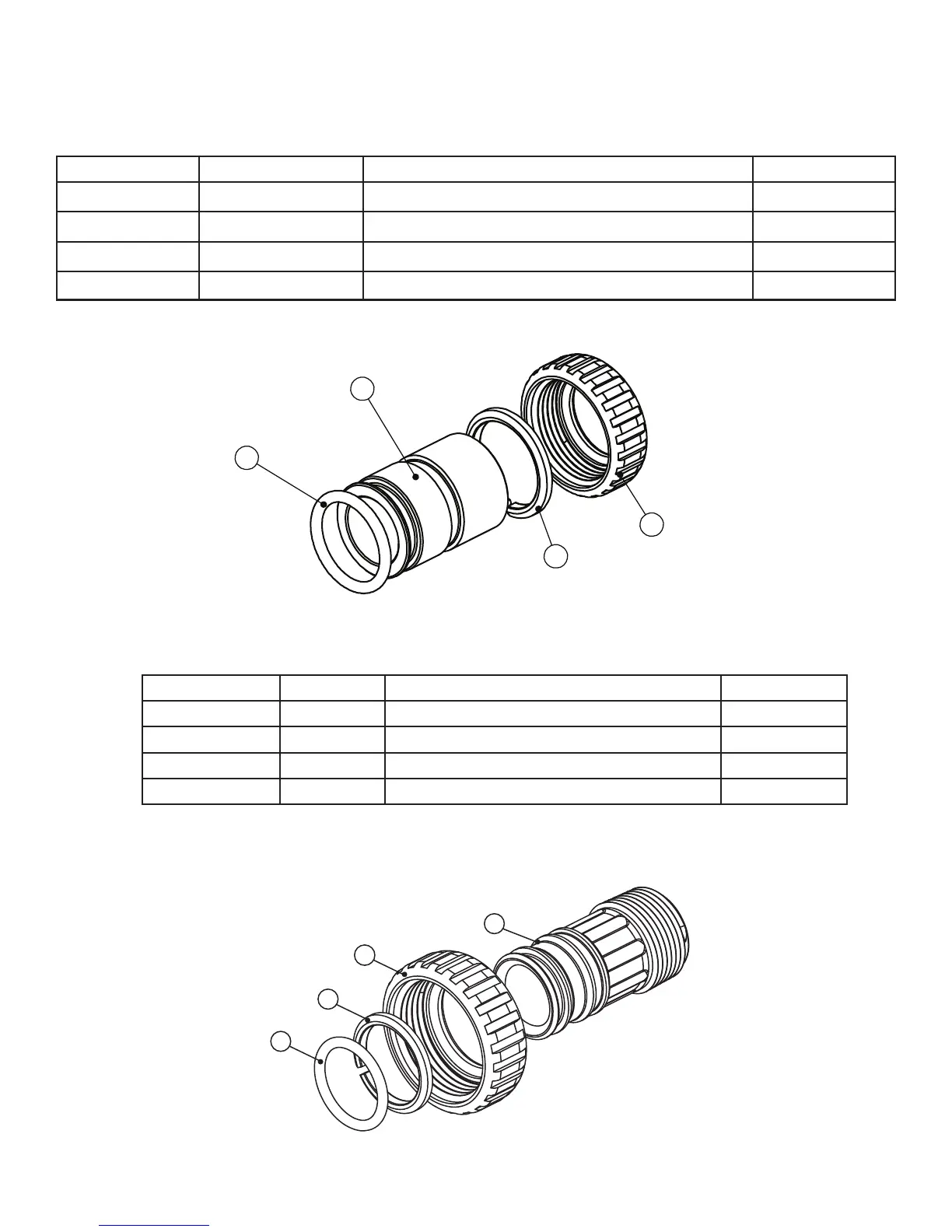

Quick Connect Assemblies
Part # V3007-02
1” Copper Brass Sweat Adapter
Reference No. Part No. Description: 1” Brass Sweat Assembly Quantity
1 V3151 1” Quick Connect Nut 2
2 V3150 1” Quick Connect Split Ring 2
3 V3105 1” Quick Connect O-Ring 215 2
4 V3188 1” Quick Connect Brass Sweat Assembly 2
Part # V3007-04
1” Plastic Male NPT Assembly
Reference No.
Part No. Description Quantity
1 V3151
1” Quick Connect Nut
2
2 V3150
1” Quick Connect Ring
2
3 V3105
1” Quick Connect O-Ring 215
2
4 V3164
1” NPT Quick Connect Plastic Male Assembly
2
1
2
4
3
1
3
2
4
