3M C1060 - Page 22

2 of 2

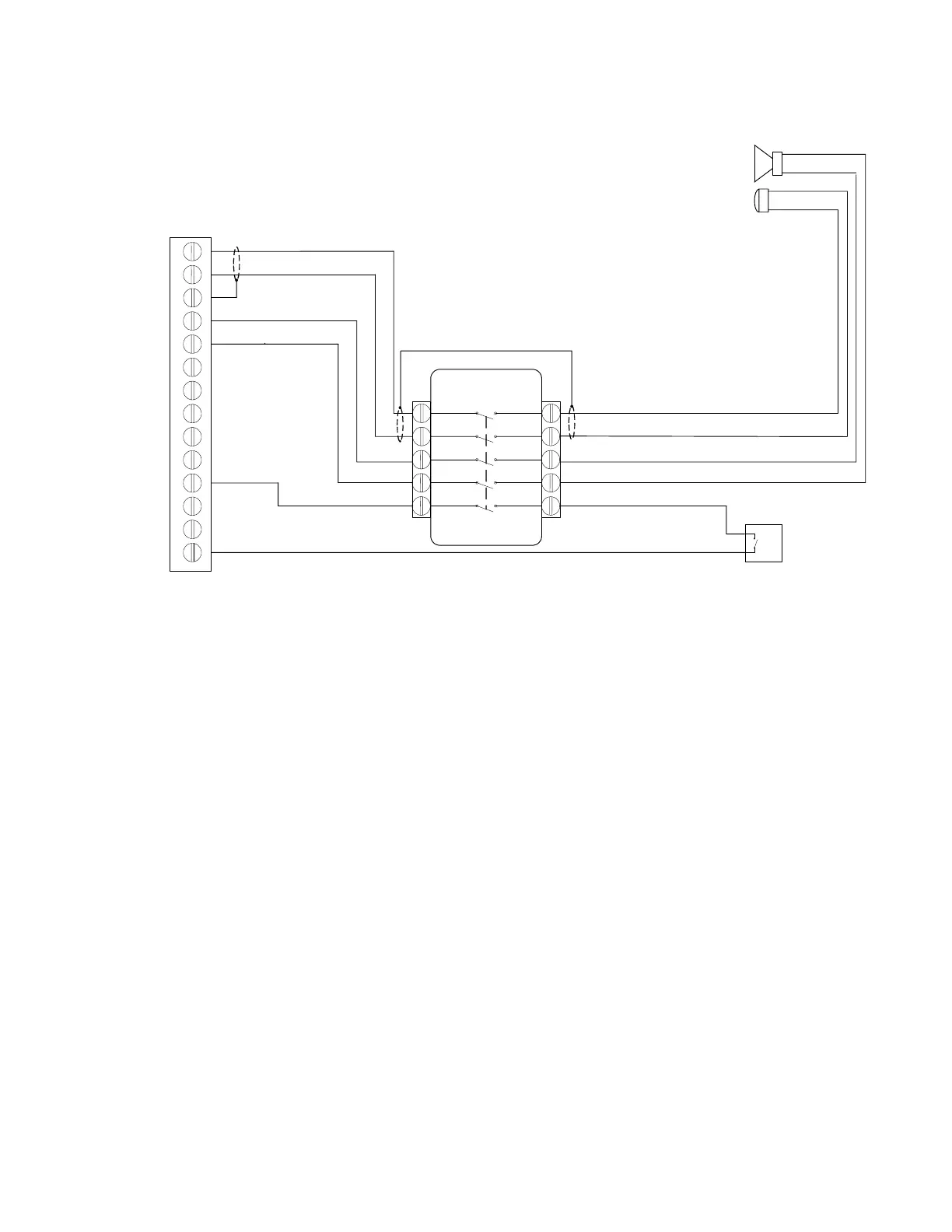

Outside Order Taking using 3M Cross-Lane Module to Disable Menu Post Components
SHIELD
MENU SPKR
MON SPKR
COM
AUDIO IN
ALT ALERT
VEH DET
ALERT OUT
12
VDC
COM
BASE STATION
MIC
AUDIO OUT
MIC
MENU SPKR
MIC
SPKR
LOOP
DET.
AUDIO OUT
CROSS LANE CONTROL
ON
AUDIO IN
ALERT
OUT
ALT ALERT
COMMONCOMMON
ALERT
OUT
ALT ALERT
AUDIO OUT
AUDIO IN
OFF
