4

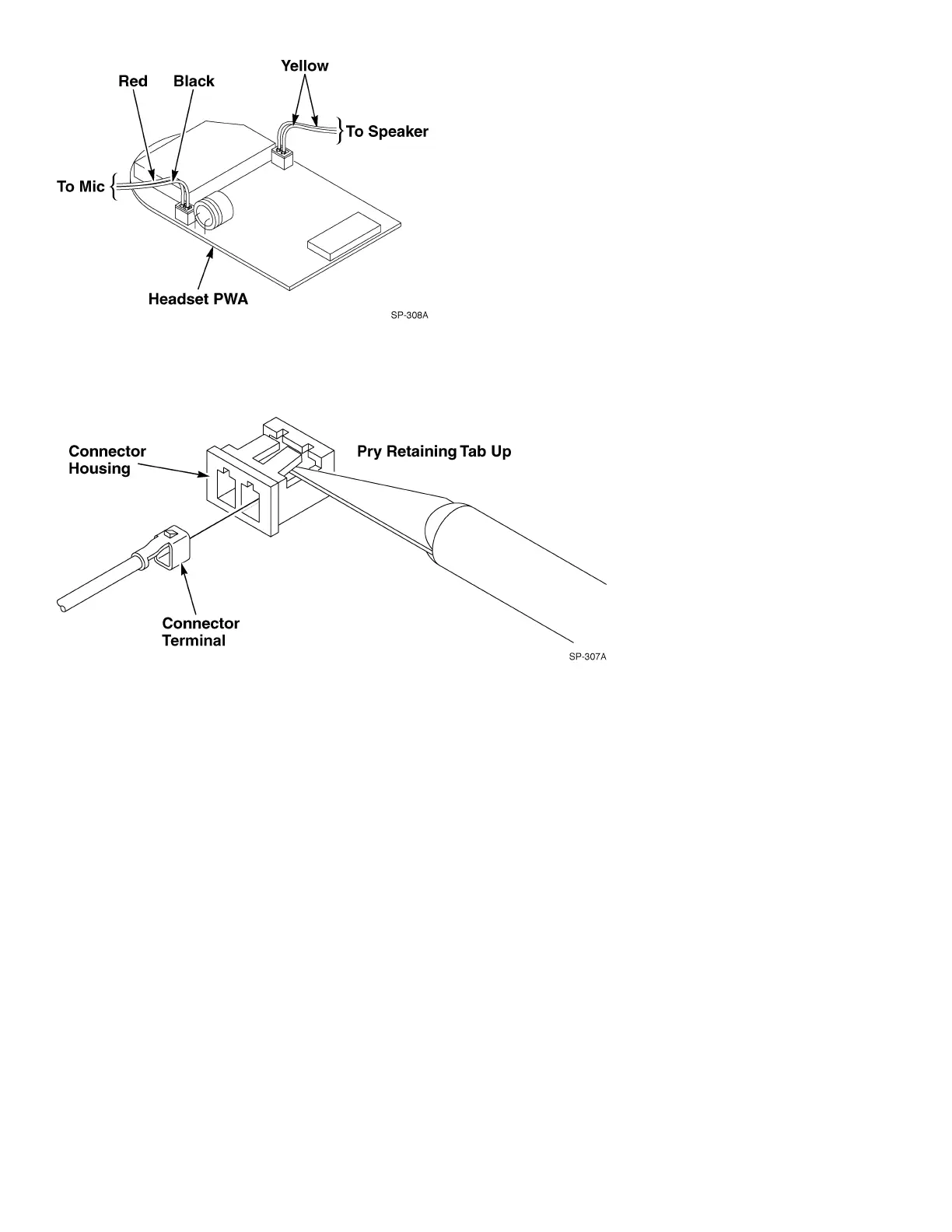

Figure 3-3.
Figure 3-4.
Replacement Hinge for C760/C960 Base Station Cover
A replacement metal hinge (78-8095-0965-2) is now available to repair C760/C960 half-covers with broken
hinge teeth. It is supplied with double-stick tape and requires removal of the original teeth and struts. It is
listed in the May 1, 1999 Service Parts pages.
Battery Contacts for C960 Headsets
A battery contact kit (78-6911-4630-8), containing 5 pairs of contacts is now available. It is listed in the May,
1999 Service Parts pages.
Tips and Tricks
• C960 headbands are made of glass-filled nylon. This type of plastic is susceptible to stretching and re-
forming and may fit loose on the head for a variety of reasons. Here are some headband cautions and
corrections:
ü Avoid resting the headset on your shoulder between orders. Your shoulder is much larger than your
head and this will stretch the headband over time.
