3M™ Multi-Touch Display User Guide
11
3M Touch Systems, Inc. Proprietary Information –
TSD-44310 REV B

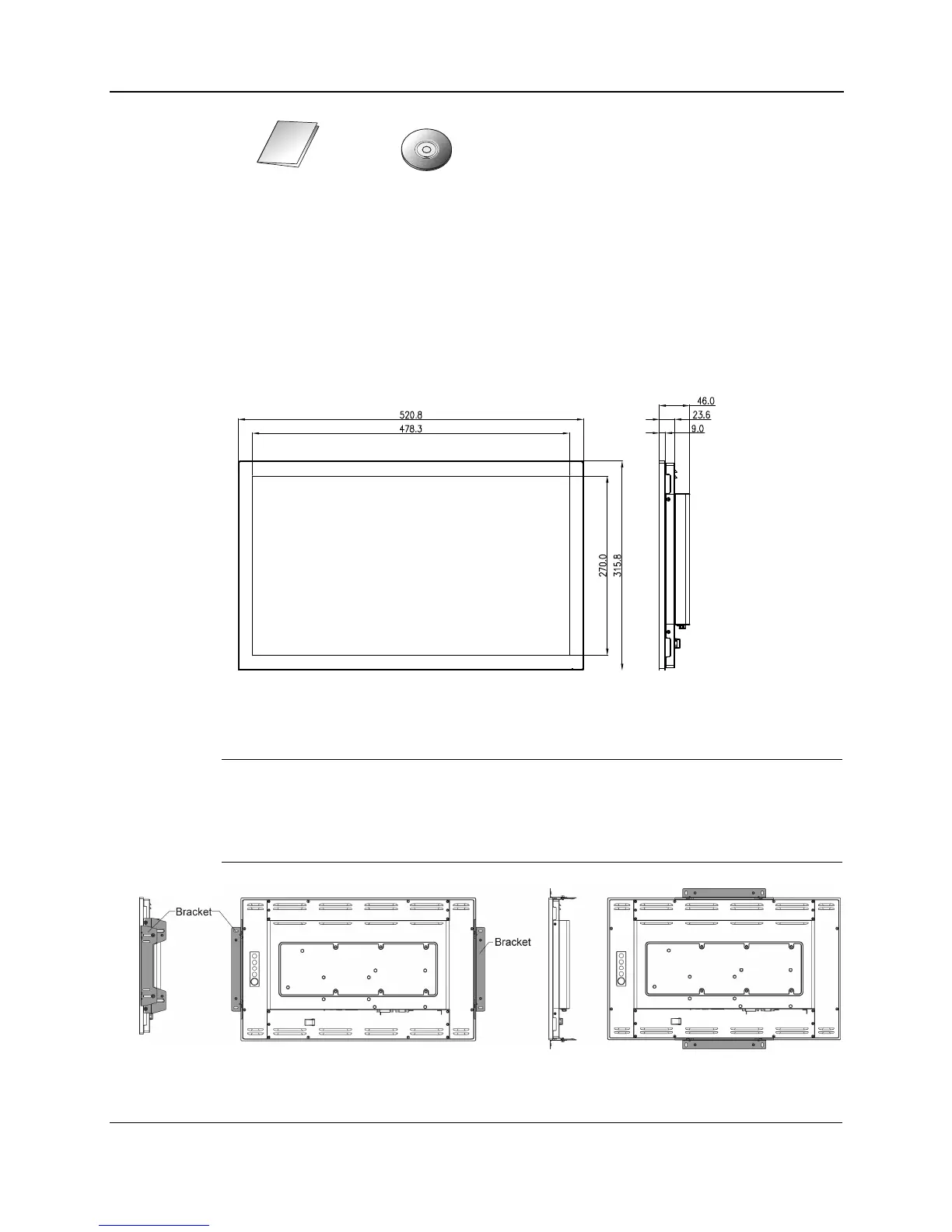

Multi-Touch Chassis Display Dimensions
C2167PW
Attaching the Side Brackets
Depending on your mounting scheme, you may use the side brackets to mount your
displays onto your wall or device. Find a suitable location for attaching side brackets.
Note: You will need a screwdriver to attach the side brackets. Your touch monitor
includes four side brackets (and eight screws, M4x8). This equipment is intended to be
mounted in accordance with the proper hardware and the installation instructions
supplied with the product. Use of mounting brackets or screws other than those specified
in the installation instructions may cause a hazard.
Top and bottom brackets Left and right side brackets
