The 3M-10 can be used with most 24 volt gas, oil or electric heating and air
conditioning systems, heat pump systems with or without auxiliary heat, Normal 2
Stage systems, Zoned Hot-Water, Zoned Forced air systems, or gas millivolt
heating systems. It cannot be used with 120 volt heating systems or. Ask The
Home Depot for other thermostats to control those systems.
The 3M-10 is digital. You can program your desired Heat
and cool temperature by setting the dial. The unit uses
no harmful mercury.
A 5-minute minimum off time in COOL protects your air
conditioning system from being damaged.
Two "AA" batteries (not included) are used to run the
thermostat in some installation. "C" wire installations can
make batteries last many times longer.
3M-10 Features
PG
18
PG
17
STEP 1 -
Connect the
G
wire to
the
G
terminal on the thermostat.
This connects the Fan.
STEP 2 -
Add a jumper wire
between
W
and
Y.
STEP 3 -
Connect the
Y
wire to
the
Y
terminal on the thermostat.
This connects the Compressor.
STEP 4 -
Connect the
O
or
B
wire to the
O
or
B
terminal on the thermostat. (If you have both
O
and
B
wires, use the
O
and tape off the
B
).
This connects the change over valve.
STEP 5 -
Connect the
R
wire to the
RC
terminal on
the Thermostat. This connects to the 24vac power.
STEP 6 -
Connect
W
or
W2
to
W2
on the thermostat.
This connects the AUX heat.
Your HVAC system is now connected to the thermostat.
Return To Page 9

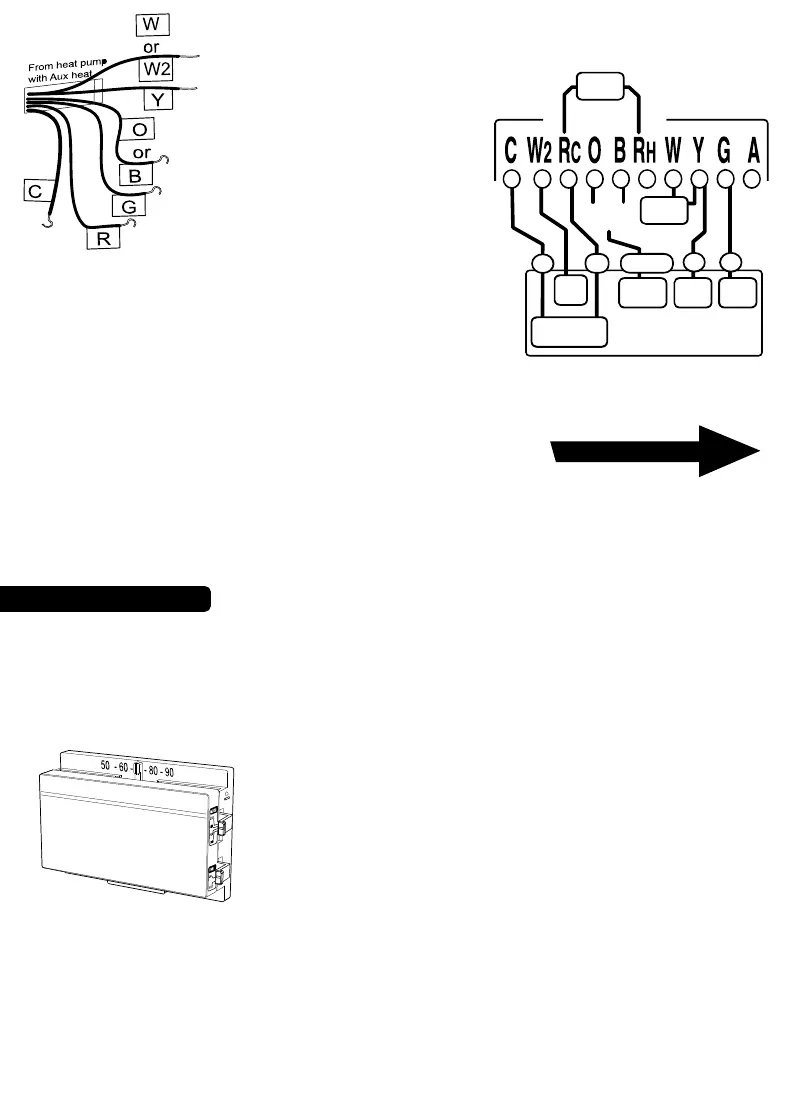

HEAT PUMP
with Auxiliary Heat
NOTE: Wires marked with
the dotted line are optional.
O or B
(not both)
HEAT PUMP
Change
Over
AUX
Heat
G
O or B
R
C
FAN
Y
Comp
24VAC
Power
jumper
wire
jumper
wire
Thermostat
1002-003
Customer Support: 888-607-5824
or Visit our website www.radiothermostat.com/filtrete
Printed in China
