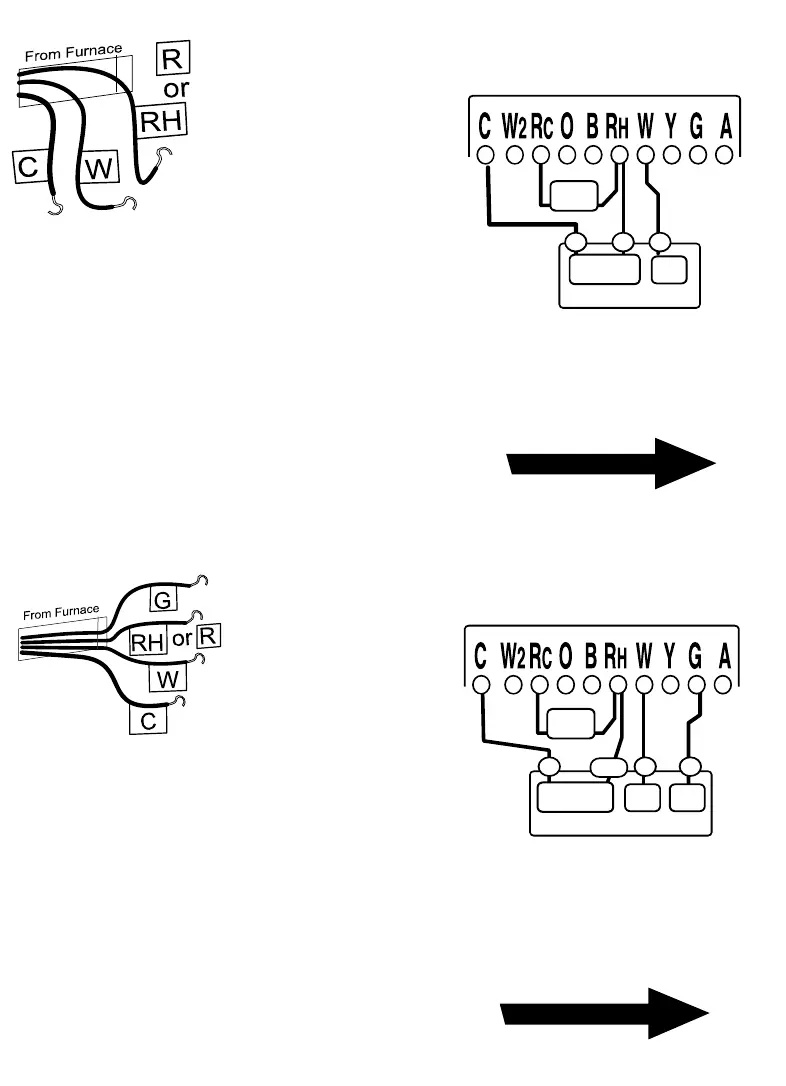

STEP 1 -
Connect the
R
(or RH) wire to the
RH
terminal on the thermostat.
This connects the Heater
Power to the thermostat.
STEP 2 -
Connect the
W
wire
to the
W
terminal on the
thermostat.
This connects the heater control line
to the thermostat.
Your Heater is now connected to the thermostat.
STEP 1 -
Connect the
R
(or RH)
wire to the
RH
terminal on the
thermostat. This
connects to the
Heater Power .
STEP 2 -
Connect the
W
wire to the
W
terminal on the thermostat.
This connects the heater control line to
the thermostat.
STEP 3 -
Connect the
G
wire to the
G
terminal on
the thermostat.
This connects the Fan to the thermostat.
Your system is now connected to the thermostat.
Return To Page 8
Return To Page 8
2 WIRE Heating
(GAS MILLIVOLT or 24vac
NOTE: Wires marked with
the dotted line are optional.
NOTE: Wires marked with
the dotted line are optional.
3 WIRE
jumper
wire
FURNACE
HEAT
Thermostat
R
W
C
HEAT
Power
FURNACE
jumper
wire
Heat
Power
Heat
W G
RH
C
FAN
Thermostat
