STEP 1 -

Connect the

wire to

the

terminal on the thermostat.

This connects to the Cooler

compressor.

STEP 2 -

Connect the

wire to the

terminal on the

thermostat.

This connects the Heater/Cooler

Power.

STEP 3 -

Connect the

wire to the

terminal on the thermostat.

This connects to the heater control line.

STEP 4 -

Connect the

wire to the

terminal on the Thermostat.

This connects to the Fan.

Your HVAC system is now connected to the thermostat.

STEP 1 -

Remove the Jumper wire.

STEP 2 -

Connect the

wire

to the

terminal on the

thermostat. This connects to

the Cooler compressor.

STEP 3 -

Connect the

wire to the

terminal on the thermostat. This connects to the

Heater Power .

STEP 4 -

Connect the

wire to the

terminal

on the thermostat. This connects to the Cooling

Power .

STEP 5 -

Connect the

wire to the

terminal on the thermostat.

This connects to the heater control line.

STEP 6 -

Connect the

wire to the

terminal on the Thermostat.

This connects to the Fan.

Your HVAC system is now connected to the thermostat.

Return To Page 8

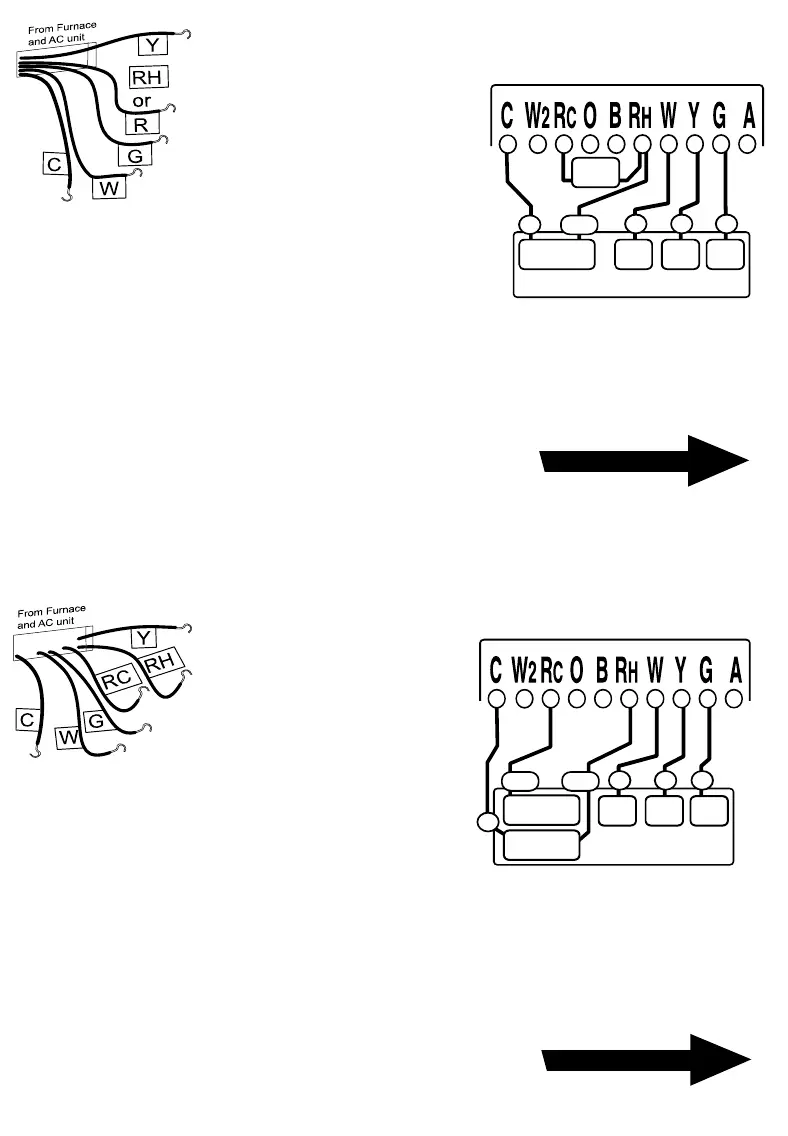

5 WIRE

NON_HEAT PUMP

4 WIRE

NON_HEAT PUMP

NOTE: Wires marked with

the dotted line are optional.

NOTE: Wires marked with

the dotted line are optional.

HVAC SYSTEM

jumper

wire

Heat

Power

Heat

FAN

Cool

Comp

Thermostat

HVAC SYSTEM

Remove

jumper

wire

HEAT

Power

Heat

RHRC

FAN

Cool

Comp

COOL

Power

Thermostat
