3. Re-wire Lane1 - Speaker, Microphone, Induction Loop to G5 Basestation

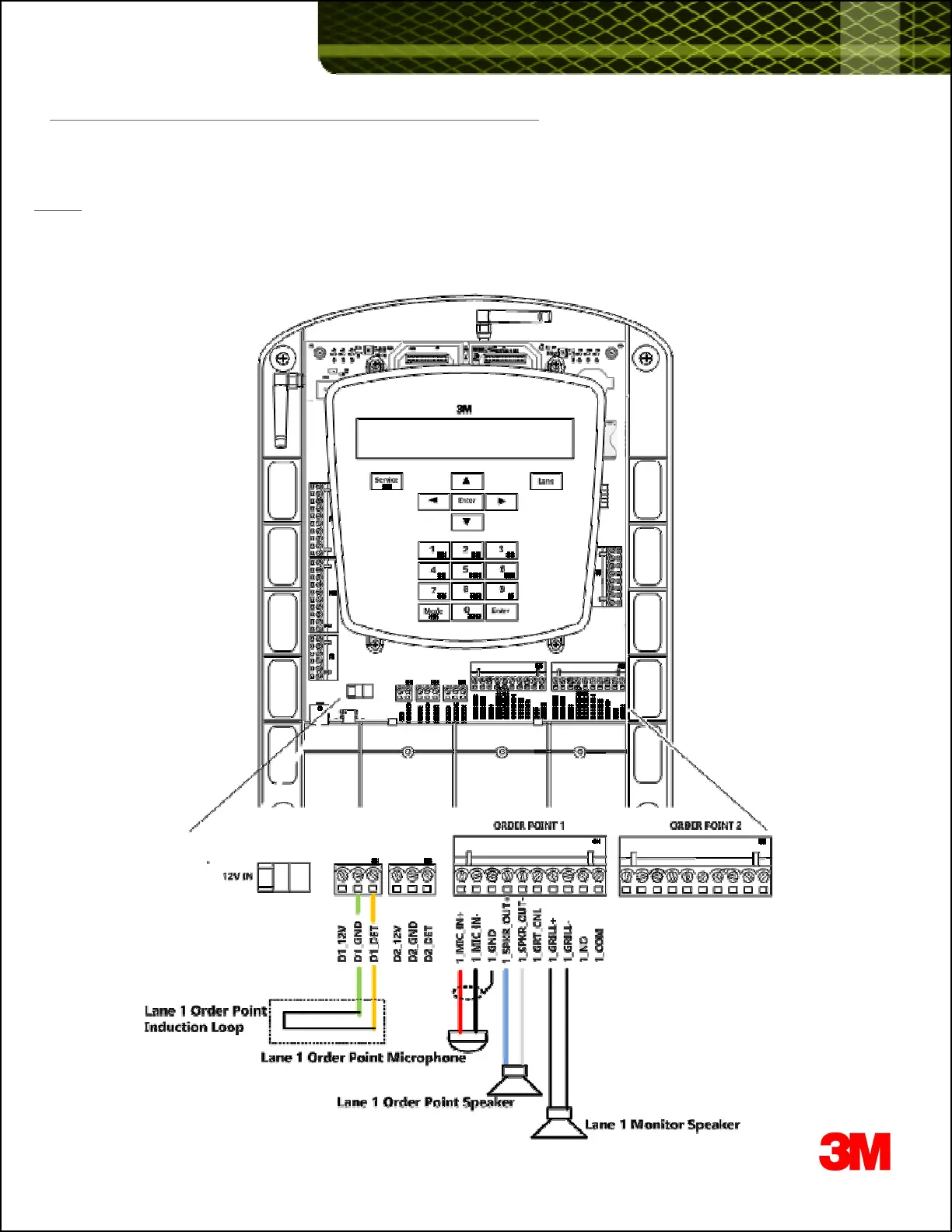

Follow the illustration below to wire the Order Point Speaker, Microphone and Induction Loop, ,and Monitor Speaker (if applicable).
NOTE: If the current wires do not extend out to the terminals on the G5 Basestation, you may splice in sufficient length of wire from an
another spool of 3M Cables.
Make sure the point where you connect the two wires (or splice) is properly insulated with Electrical Insulation Tape and/or securely held
with wire nuts. This ensures against any accidental grounding of the wires.
5
