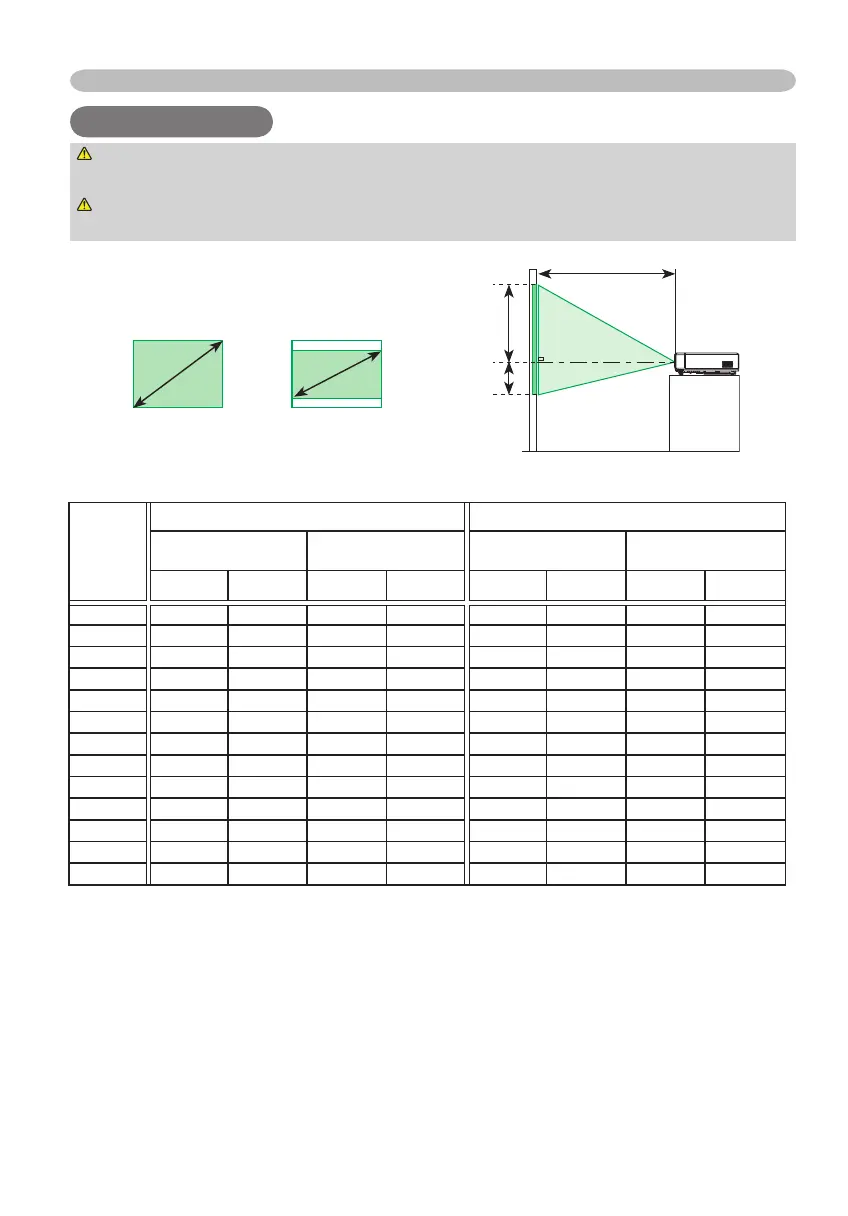

Arrangement
ArrangementArrangement
WARNING ►Install the projector in a suitable environment according to
the instructions in the "User's Manual - Safety Guide".
CAUTION ►This projector has intake vents on the bottom. Avoid blocking
these vents. Do not place objects near bottom of projector.
4:3
(a)
16:9
(a)
(c) up
(b)
(c) down
(calculated for a full size screen, ±10%)
(a) Screen
size
[inch (m)]
At 4 : 3 screen At 16 : 9 screen
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
(b) Projection distance
[m (inch)]
(c) Screen height
[cm (inch)]
min. max. down up min. max. down up
30 (0.8) 0.9 (35) 1.1 (42)
5 (2) 41 (16)
1.0 (38) 1.2 (46)
-1 (0) 39 (15)
40 (1.0) 1.2 (47) 1.4 (56) 6 (2) 55 (22) 1.3 (52) 1.6 (62) -2 (-1) 51 (20)
50 (1.3) 1.5 (59) 1.8 (71) 8 (3) 69 (27) 1.6 (65) 2.0 (77) -2 (-1) 64 (25)
60 (1.5) 1.8 (72) 2.2 (85) 9 (4) 82 (32) 2.0 (78) 2.4 (93) -2 (-1) 77 (30)
70 (1.8) 2.1 (84) 2.5 (100) 11 (4) 96 (38) 2.3 (91) 2.8 (109) -3 (-1) 90 (35)
80 (2.0) 2.4 (96) 2.9 (114) 12 (5) 110 (43) 2.7 (105) 3.2 (125) -3 (-1) 103 (41)
90 (2.3) 2.7 (108) 3.3 (129) 14 (5) 123 (49) 3.0 (118) 3.6 (140) -4 (-1) 116 (46)
100 (2.5) 3.1 (120) 3.6 (143) 15 (6) 137 (54) 3.3 (131) 4.0 (156) -4 (-2) 129 (51)
120 (3.0) 3.7 (144) 4.4 (172) 18 (7) 165 (65) 4.0 (158) 4.8 (188) -5 (-2) 154 (61)
150 (3.8) 4.6 (181) 5.5 (216) 23 (9) 206 (81) 5.0 (197) 6.0 (235) -6 (-2) 193 (76)
200 (5.1) 6.1 (242) 7.3 (288) 30 (12) 274 (108) 6.7 (264) 8.0 (314) -8 (-3) 257 (101)
250 (6.4) 7.6 (303) 9.2 (361) 38 (15) 343 (135) 8.4 (330) 10.0 (393) -10 (-4) 322 (127)
300 (7.6) 9.2 (363) 11.0 (433) 46 (18) 411 (162) 10.1 (396) 12.0 (472) -12 (-5) 386 (152)
© 3M 2004 3M™ Digital Projector X45/SX55
