6.Only one RS232/RS485/RS422 port can be connected at a given
time.
7. 9~36VDC power supply Input(2 bit terminal block)

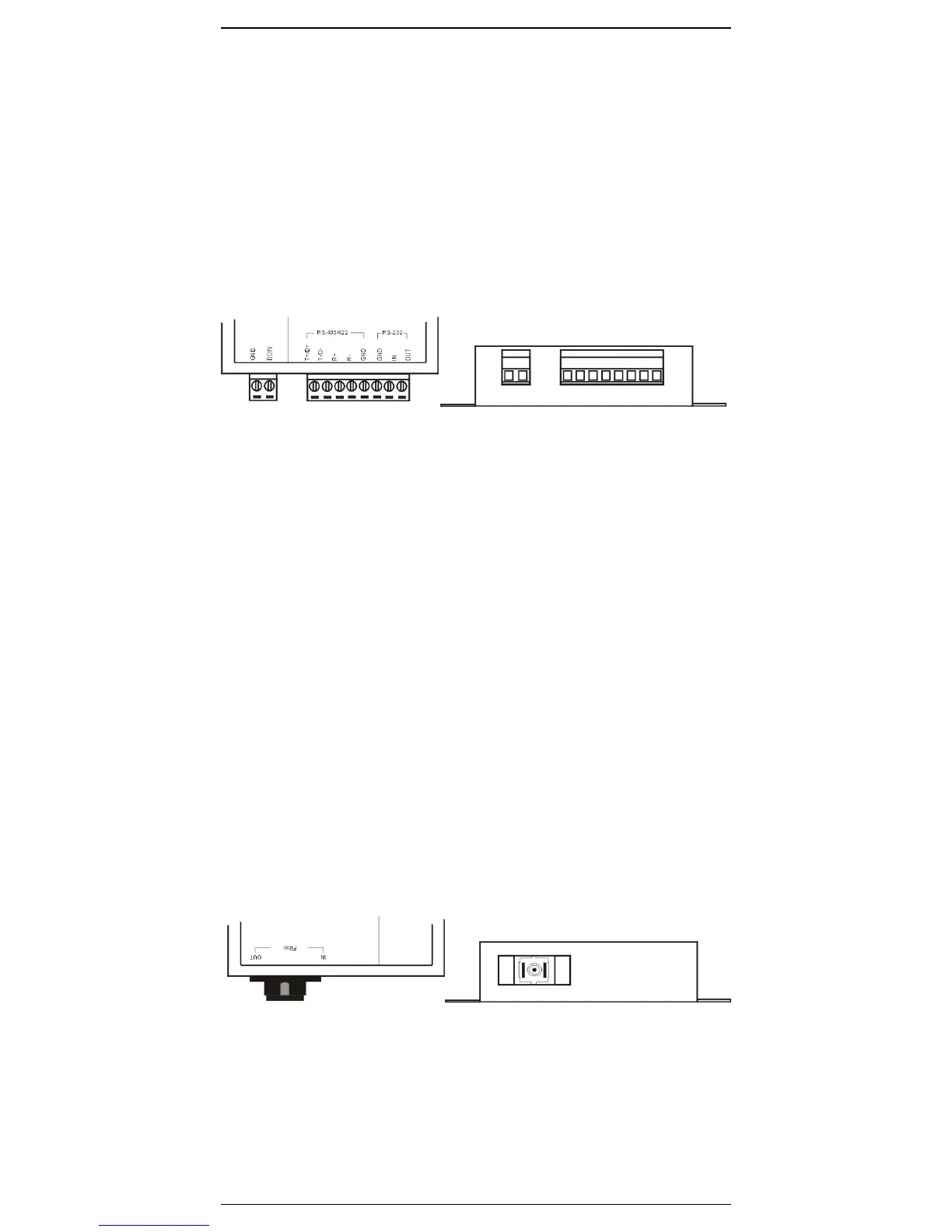

Pinout Configuration:
Power, RS-232/485/422
RS-232/485/422 interface adopt 8 bit terminal block, the power
supply input is 2 bit terminal block.
Power:
DCIN 9~36VDC input
GND power ground
RS-485/422:
T+/D+ RS-422 send+/485+(A)
T-/D- RS-422 send-/485-(B)
R+ RS-422 receive+
R- RS-422 receive-
GND Signal ground
RS-232:
GND Signal ground
IN RS232 input (RXD)
OUT RS232 output (TXD)
Optical fiber interface
The optical fiber connection supports single-mode single fiber
For Link : A-to-B(The mark A device link to the mark B
device)
