Product Overview
PRODUCT OVERVIEW (CONTINUED)

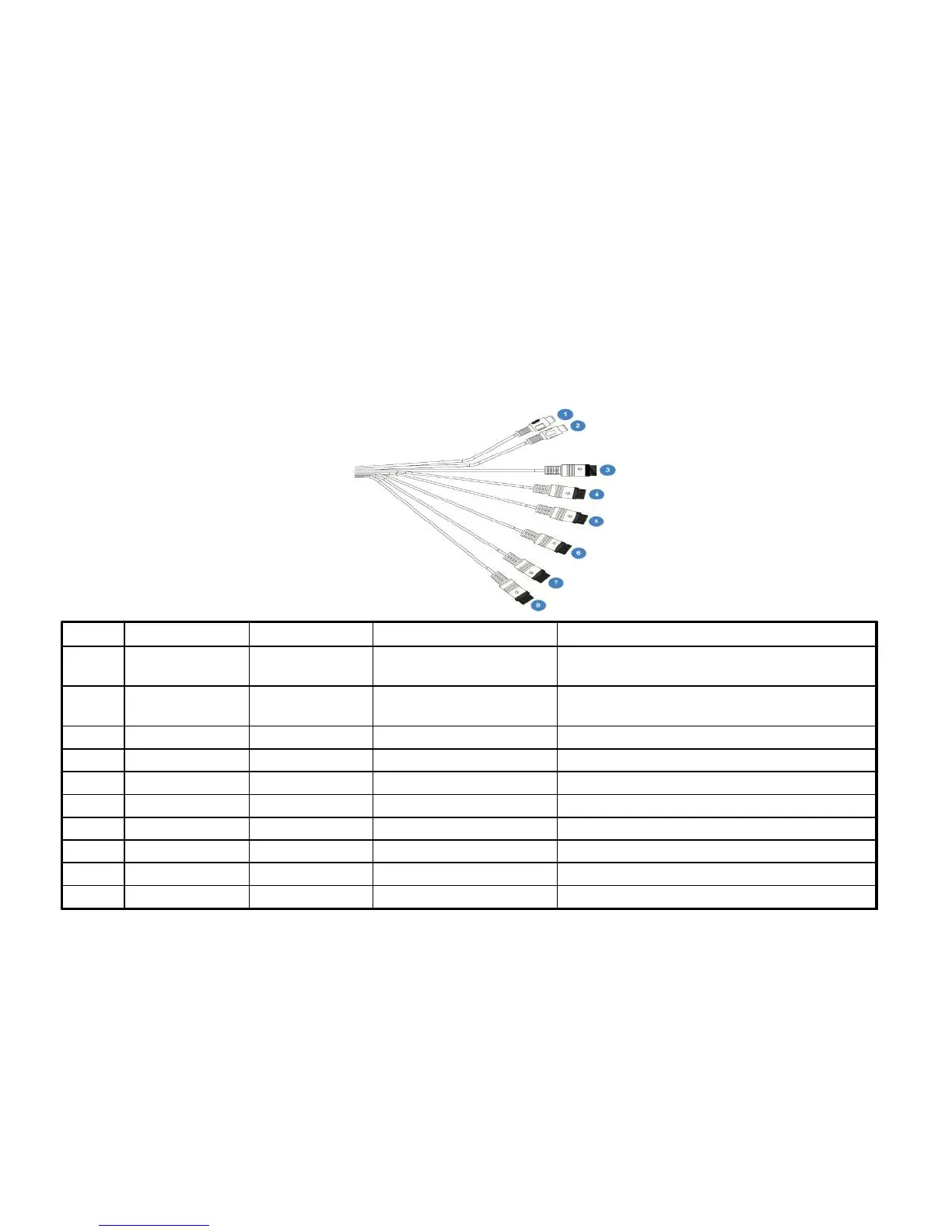

C. Video and Audio Cable Descriptions
NO.
WIRE COLOR
TYPE
DESCRIPTION
REMARK
1
Yellow
RCA
Live Video Out
On screen video loop out (for recording,
second monitor or other device)
2
Red
RCA
Live Audio Out
On screen video loop out (for recording,
second monitor or other device)
3
Black
Mini-Din
Camera R (Rear)
For first camera connection
4
Black
Mini-Din
Camera A (Left)
For second camera connection
5
Black
Mini-Din
Camera B (Right)
For third camera connection
6
Black
Mini-Din
Camera C
For fourth camera connection
7
Black
Mini-Din
Camera 5
For fifth camera connection
8
Black
Mini-Din
Camera 6
For sixth camera connection
9
Black
Mini-Din
Camera 7
For seventh camera connection
10
Black
Mini-Din
Camera 8
For eighth camera connection
