Chapter 2. Installing Your 3ware RAID Controller
22 3ware 9650SE Serial ATA RAID Controller Installation Guide

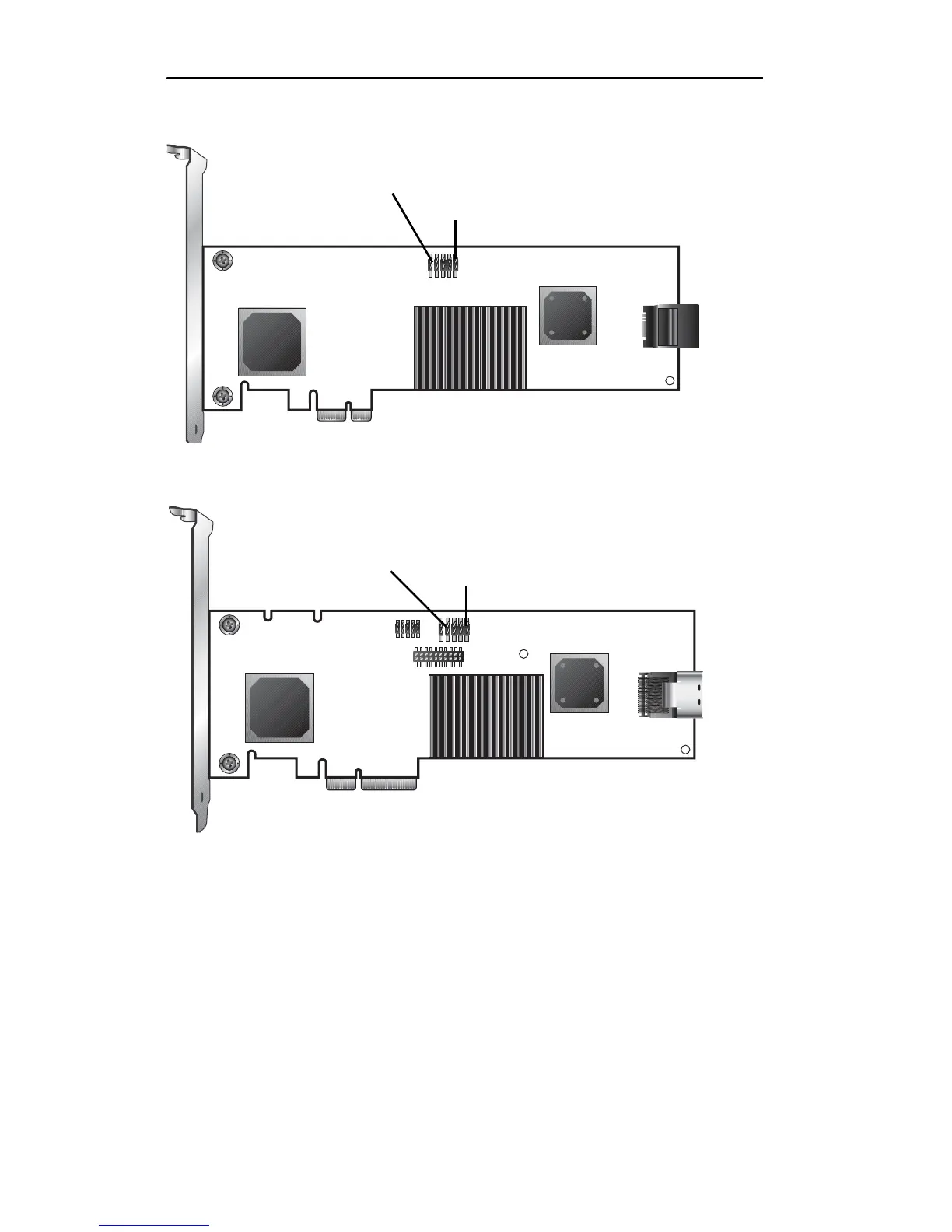

Figure 15. 2-Port 3ware 9650SE-2LP Serial ATA RAID Controller
Figure 16. 4-Port 3ware 9650SE-4LPML Serial ATA RAID Controller
LED indicators for individual
drives on J7: 0 and 1 (left to
right)
Overall LED drive status indicator:
the last two pins of J7. The anode
is the lower of the two pins and
the cathode is the upper.
LED indicators for individual
drives on J7: 0, 1, 2, 3
(left to right)
Overall LED drive status indicator:
the last two pins of J7. The anode
is the lower of the two pins and
the cathode is the upper.
