Chapter 3. Installing the Battery Backup Unit
38 3ware 9650SE Serial ATA RAID Controller Installation Guide
4 While pressing down on the top of the battery module, lift out
the bottom of the battery module slightly.
5 Once the bottom of the module is free, slide the module up to
release the clips on the top.

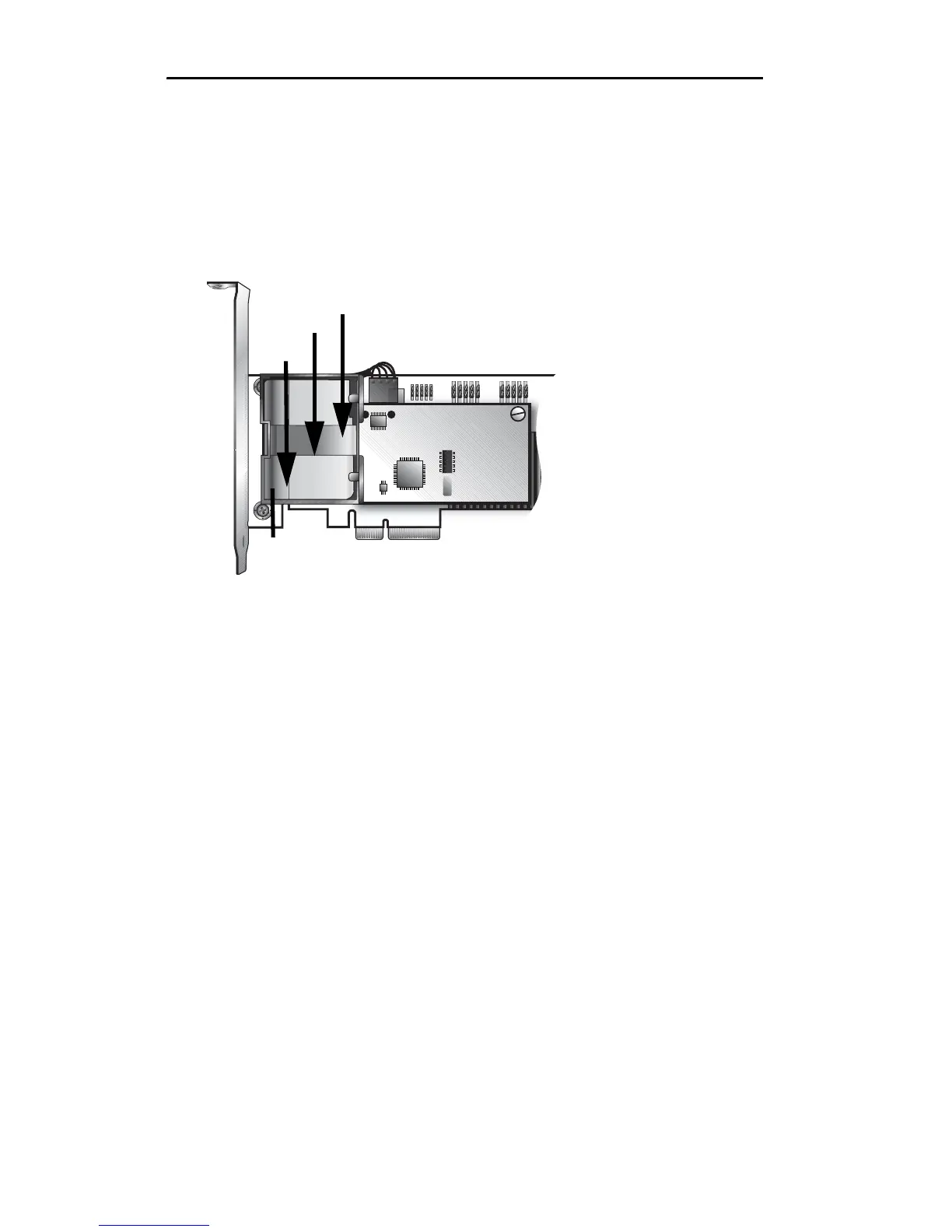

Figure 32. Removing the battery module
6 Disconnect the battery power cable from the BBU.
To do so, press down on the lever-like clip on the battery power
connector and slide it out of the slot.
(If desired, you can remove the BBU control module to
facilitate disconnecting the power cable.)
Bottom clip
a) Push the battery
module down gently.
b) Lift out the bottom
of the battery module
to release the clip on
the bottom edge.
c) Lift up to remove
the clips on the top
edge.
