Assembling the propeller engine

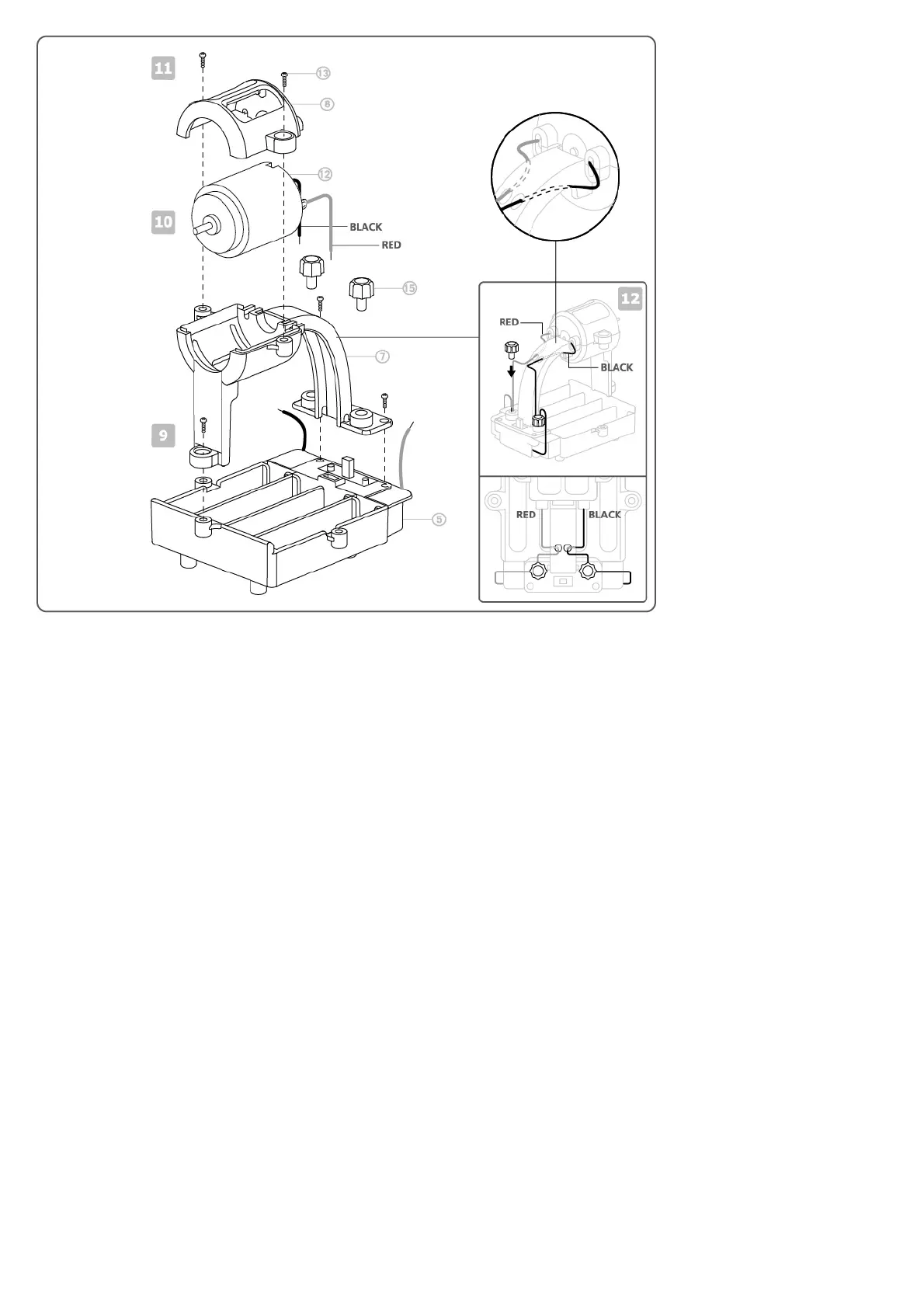

9. Place the motor stand on the battery compartment and secure it with three screws.
10. Place the motor inside the motor stand, with the wires pointing towards the curved leg of the stand. Feed
the wires down through the holes at the top of the stand, and out through the hole at the bottom.
11. Add the motor cover and secure it with two screws.
12. Insert a wire from the motor and the same colour wire from the battery compartment into one of the
terminal holes next to the switch and secure them with a terminal cap. Repeat with the other two wires in the
other terminal hole.
