7th Sense Delta Media Server User Manual

13
Hardware Operation © 2020 7thSense Design
Back / Rear Panel Connections
Back / Rear Panel Connections
Cables and Connectors
To ensure best performance from the server and compliance with relevant EMC regulations, this equipment
should only be used with high-quality shielded data and signal cables.

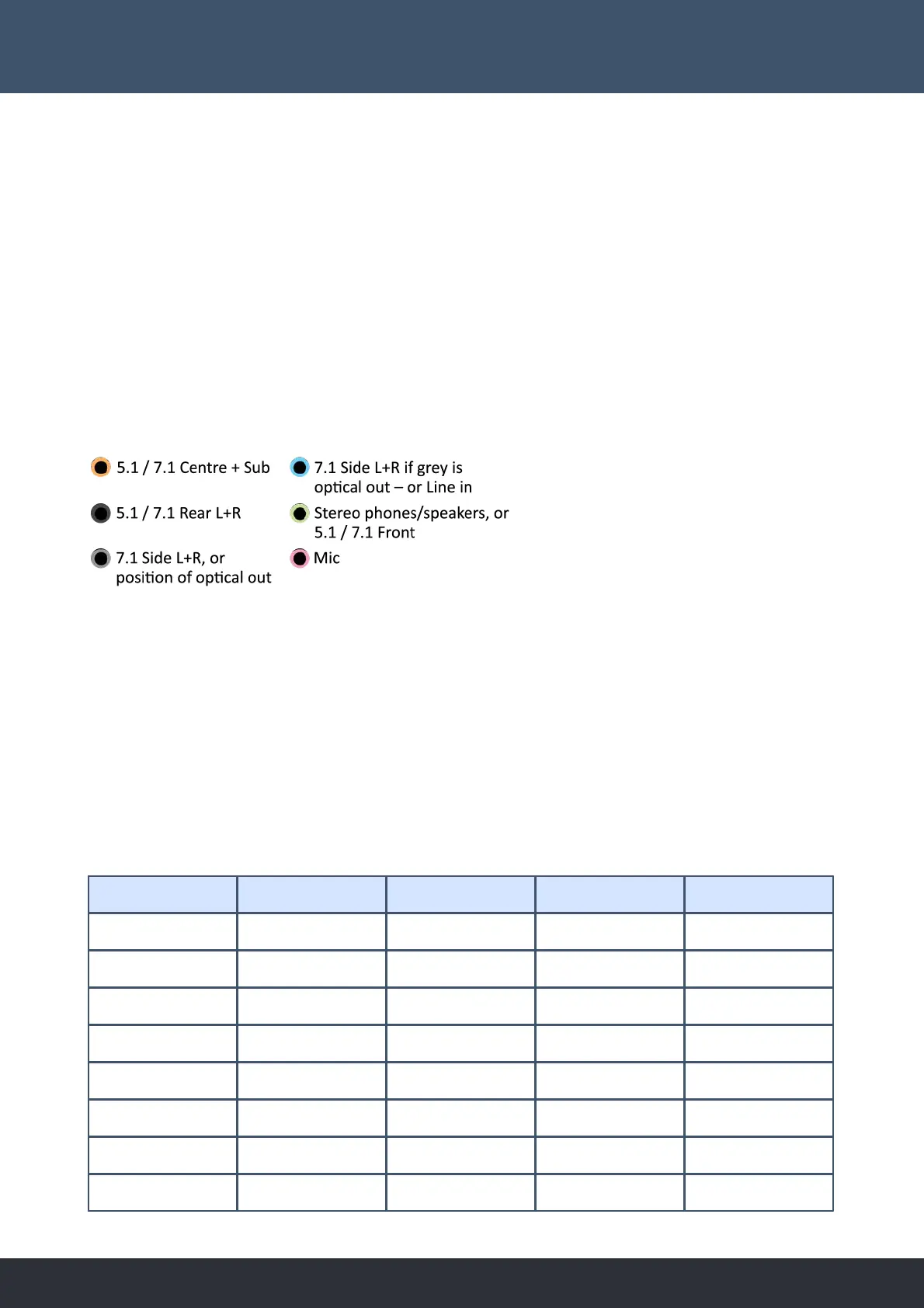

Audio connectors (3.5 mm TRS / mini stereo jack)
These are the Realtek defaults as used in Delta Media Servers.
Double-click a connector’s graphic in Realtek HD Audio Manager to enable the auto pop-up dialog. This
enables you to choose which device has been plugged in, for example to assign the blue socket to ‘Side
Speakers Out’ rather than ‘Line In’.
Audio (stereo) TRS plug connections
Tip = Left channel
Ring = Right channel
Sleeve = Ground (common)
The audio channels as they appear in DeltaGUI are:
Delta channel
Socket colour
TRS connection
7.1 speaker config
5.1 speaker config
1
Green
Tip+Sleeve
Front left
Front left
2
Green
Ring+Sleeve
Front right
Front right
3
Orange
Tip+Sleeve
Centre
Centre
4
Orange
Ring+Sleeve
Sub
Sub
5
Blue
Tip+Sleeve
Side left
(unused)
6
Blue
Ring+Sleeve
Side right
(unused)
7
Black
Tip+Sleeve
Rear left
Rear left
8
Black
Ring+Sleeve
Rear right
Rear right

7th Sense Delta Media Server Specifications

General

Category	Media Server
3D Support	Yes
Power Supply	Redundant power supplies
Video Input	HDMI
Storage	SSD
Operating System	Windows
Form Factor	Rack-mountable
Genlock	Yes
Processor	Intel Xeon
Memory	Up to 128GB
GPU	NVIDIA Quadro
Network	Gigabit Ethernet
