A-dec 500 12 O’Clock Delivery System Installation Guide
86.0466.00 Rev E 3

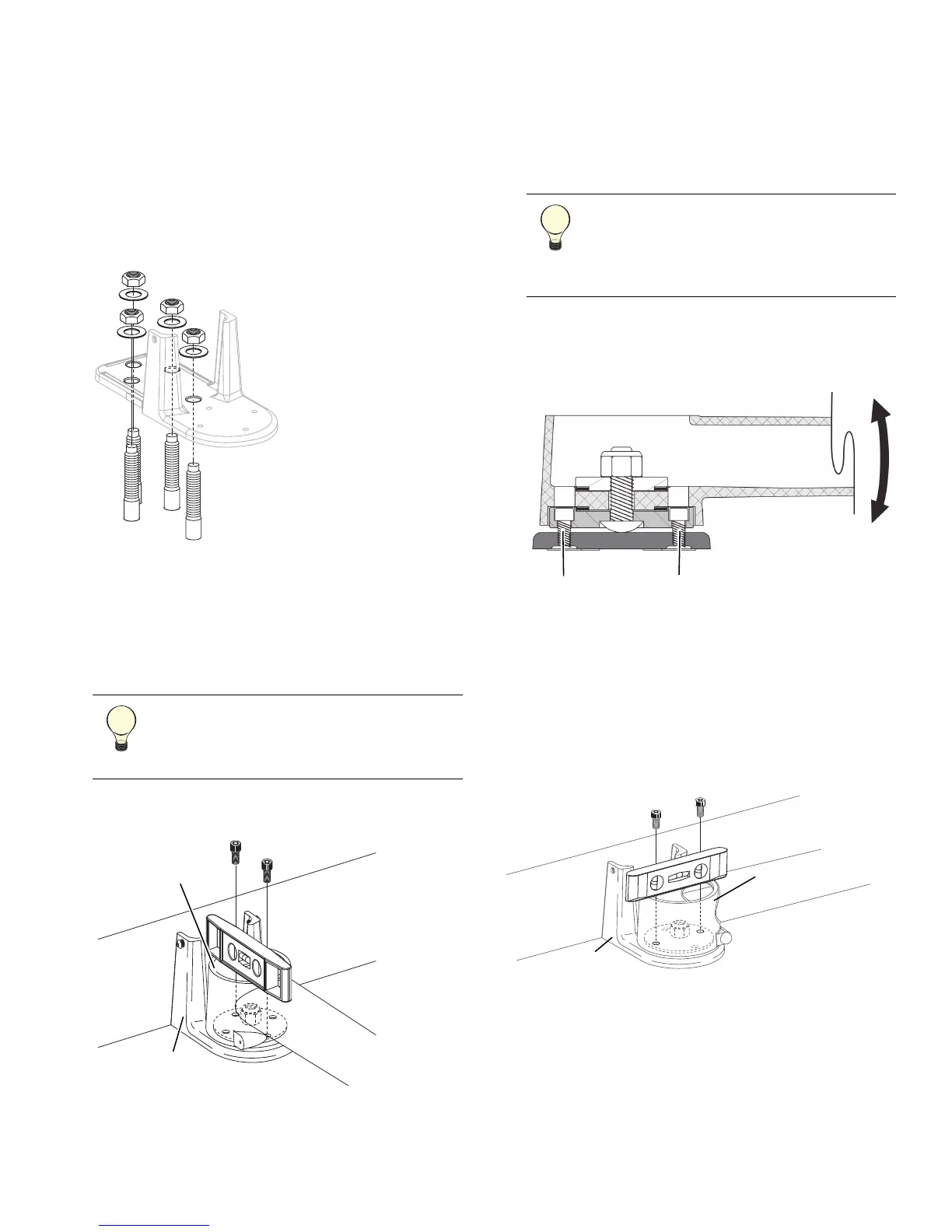

Attach the Mount to a Non-Concrete Floor
1. Drill the mounting holes:
(1) Drill 3/8" (9.5 mm) diameter holes 3-1/4"
(82.5 mm) deep.
(2) Remove debris from the holes.
2. Use four washers and 1/2" x 4" lag screws to secure
the mount.
Install and Level the Arm Assembly
Level the Hub
1. Set the arm assembly on the floor mount and align it
to access the first set of mounting screw holes
perpendicular to the cabinet or wall.
2. Insert the first set of mounting screws and loosely
fasten them.
3. Level the hub by first loosening one mounting screw
and then tightening the other mounting screw, as
necessary. As a guide, place the level on the hub,
parallel to the arm.
Raise the Long End of the Arm
1. Loosen the screw at the front of the hub.
2. Tighten the screw at the rear of the hub.
3. Rotate the assembly parallel to the cabinet or wall to
access the second set of mounting screw holes.
4. Insert the second set of mounting screws and loosely
fasten them.
5. With the second set of mounting screws, level the
hub by first loosening one mounting screw and then
tightening the other mounting screw, as necessary.
Place a level on top of the hub as a guide.
6. If you can jiggle the end of the arm up and down,
tighten the hub locknut. When you rotate the arm,
there should be slight resistance, and the arm should
not drift.
TIP Place the shortest piece of foam
packaging underneath the far end of the arm
assembly as a balance when you set the
assembly on the floor mount.
TIP The support arm balances on a pivot.
To raise or lower the long side of the arm,
adjust the screw nearest the cabinet or wall.
Once the arm is level, tighten the second
screw to hold the arm in place.
Tighten this
screw.
Loosen this
screw.
To Next Page
