A-dec 500 Pre-Installation Guide
85.0052.00 Rev D
9
A-dec 332/333 Radius-Style Delivery System

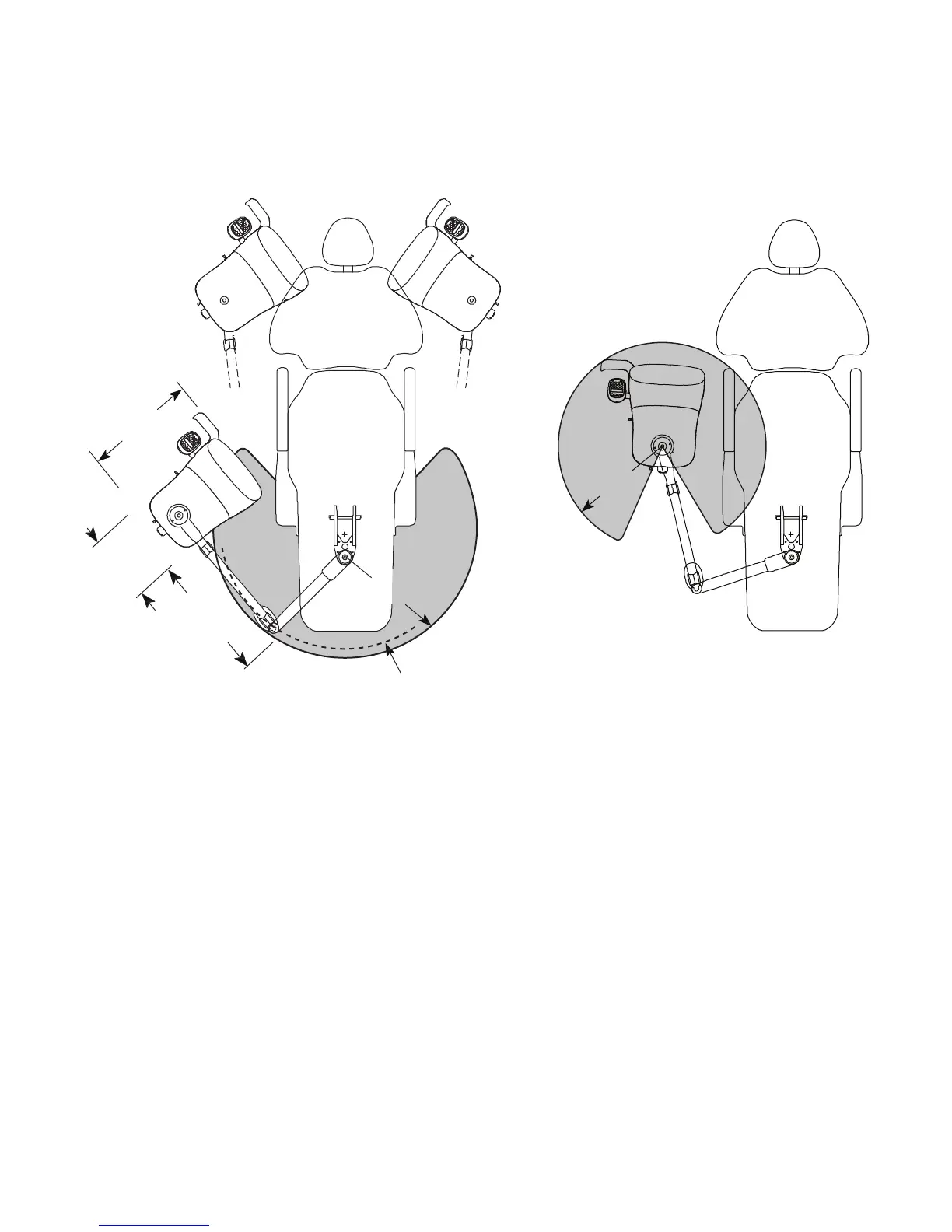

Plan View
(shown with 333 system)
17.25"
447 mm
32.25"
818 mm
27" radius
686 mm
12"
307 mm
24.5" radius to joint
627 mm
13" radius
330 mm
