A-dec 500 Pre-Installation Guide
8 85.0052.00 Rev D
A-dec 532/533 Delivery System

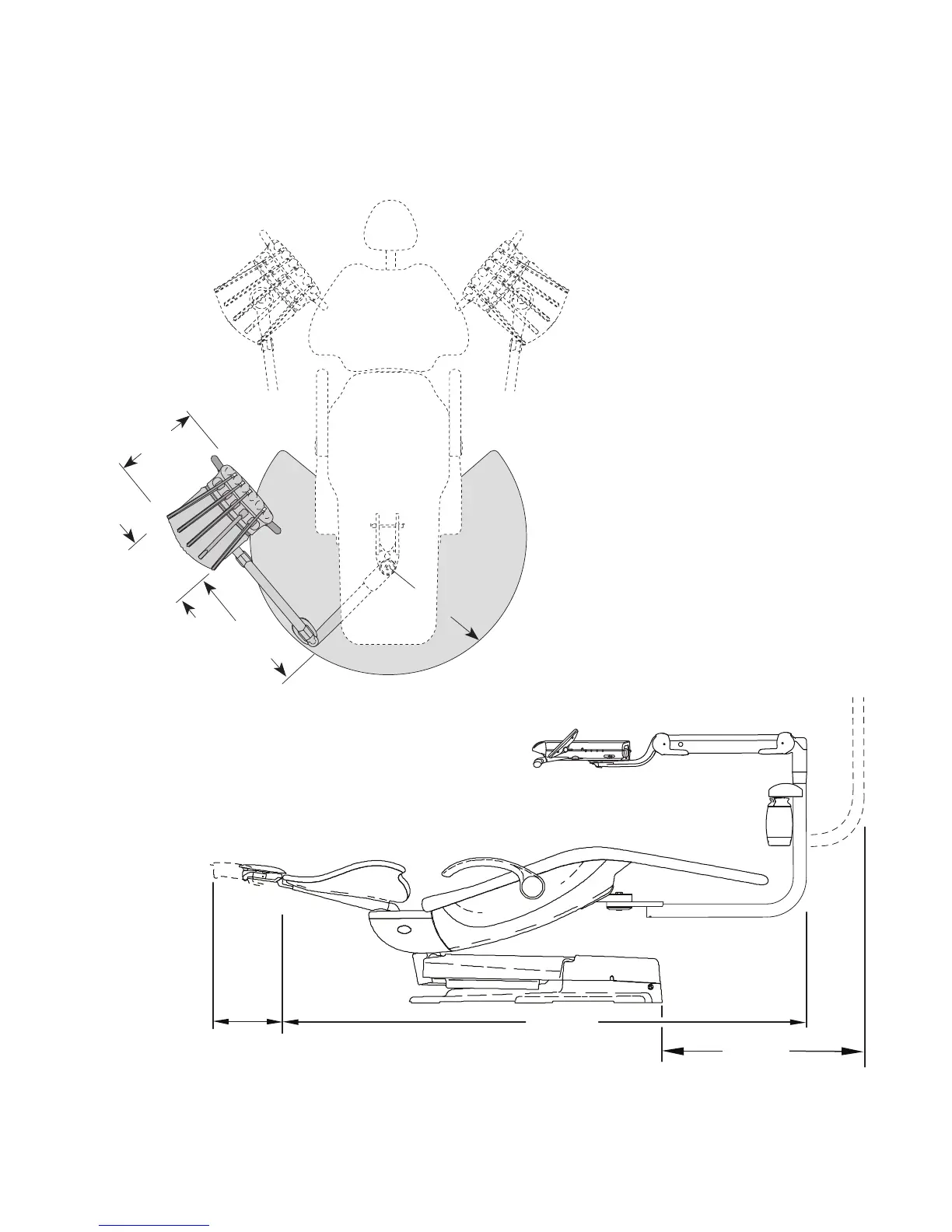

Plan View with Elevation
(shown with 533 system)
18 - 19.5"
457 - 495 mm
14.5"
368 mm
32 - 34"
813 - 864 mm
29" radius
737 mm
9 - 18.5"
229 mm - 470 mm
Range of Headrest
71"
1795 mm
30.5"
775 mm
Full Base Up
(forward chair travel = 10.5" [267 mm])
