A-dec 500 Pre-Installation Guide
85.0052.00 Rev D
7
A-dec 532/533 Delivery System

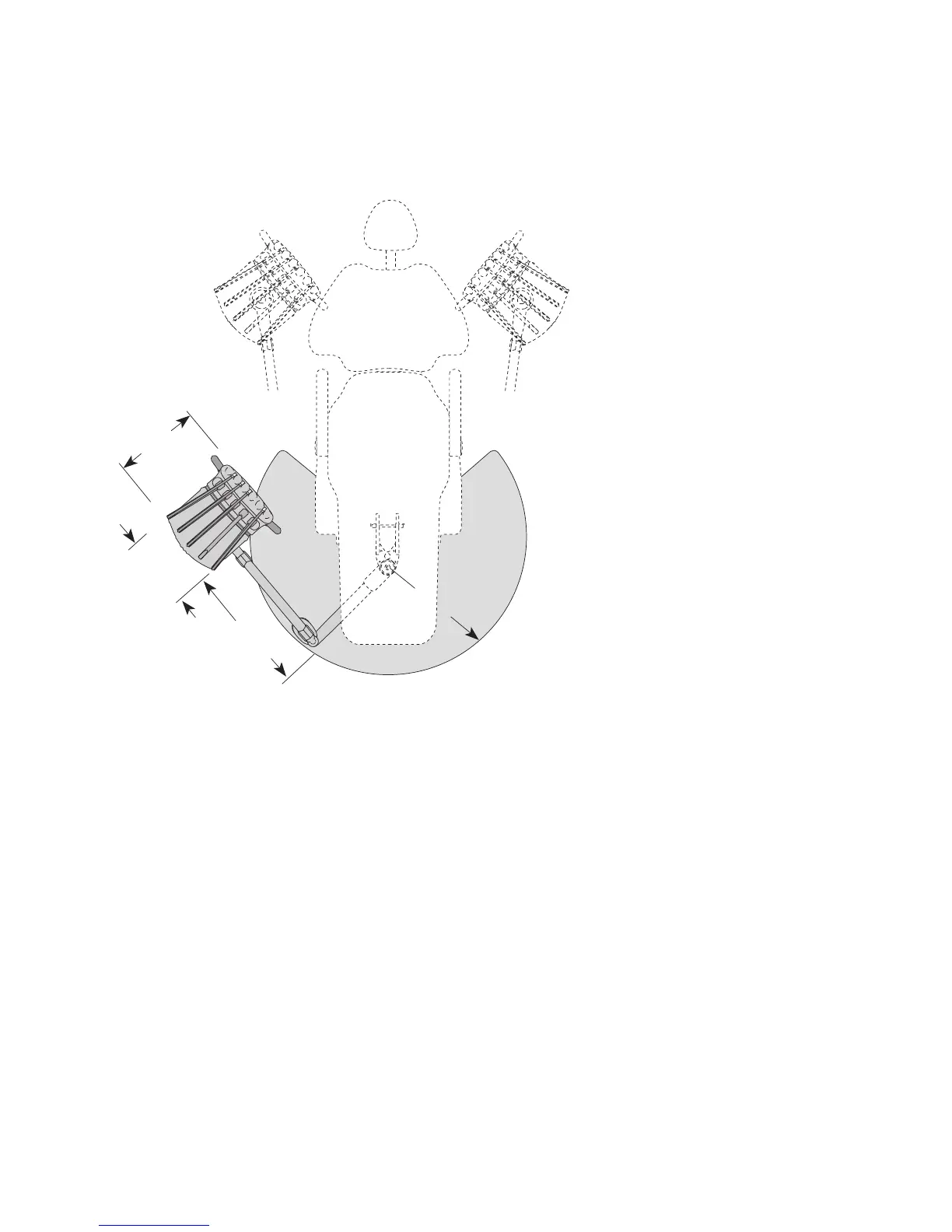

Plan View
(shown with 533 system)
18 - 19.5"
457 - 495 mm
14.5"
368 mm
32 - 34"
813 - 864 mm
29" radius
737 mm
