INTELLI-VENT TROUBLESHOOTING GUIDE
Technical Training Department Ashland City, Tennessee © 2005
15 of 24

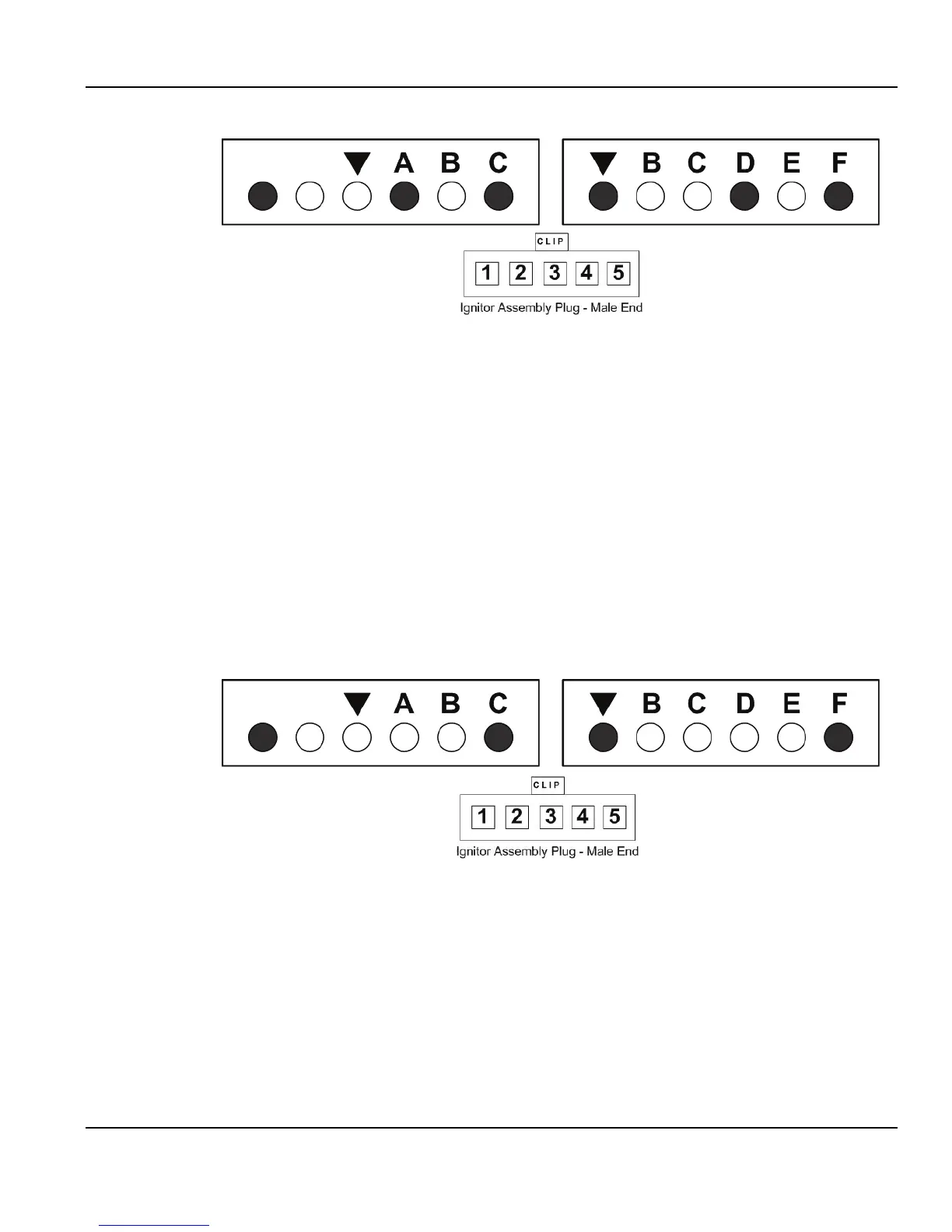

ERROR CODE 14 - RESISTOR WIRE OPEN OR SHORTED
The self-diagnostic test found a problem with the black resistor wire on the ignitor
assembly plug; the resistor wire is open or shorted. (see 6)
Check / Repair:
• Insure the black resistor wire is not cut, missing, and is installed between pins 3 &
4 of the ignitor assembly plug. Replace ignitor assembly if damaged or defective.
• Unplug the ignitor assembly plug from the control. Check the resistance of the
black resistor wire between pins 3 & 4 with an ohm meter.
A If the reading taken is less than 2000 or more than 1.7 million ohms, replace
the ignitor assembly.
B If the reading taken is between 2000 and 1.7 million ohms, replace the Intelli-
Vent™ control.
ERROR CODE 15 - RESISTOR WIRE RESISTANCE OUT OF TOLERANCE
The self-diagnostic test determined the resistance of the black resistor wire on the ignitor
assembly plug is not within tolerance. (see 6)
Check / Repair:
• Unplug the ignitor assembly plug from the control. Check the resistance of the
black resistor wire between pins 3 & 4 with an ohm meter.
A If the reading taken is more than 50,000 ohms replace the ignitor assembly.
B If the reading taken is less than 50,000 ohms replace the Intelli-Vent™ control.
