INTELLI-VENT TROUBLESHOOTING GUIDE
Technical Training Department Ashland City, Tennessee © 2005
4 of 24
TEMPERATURE SETTINGS

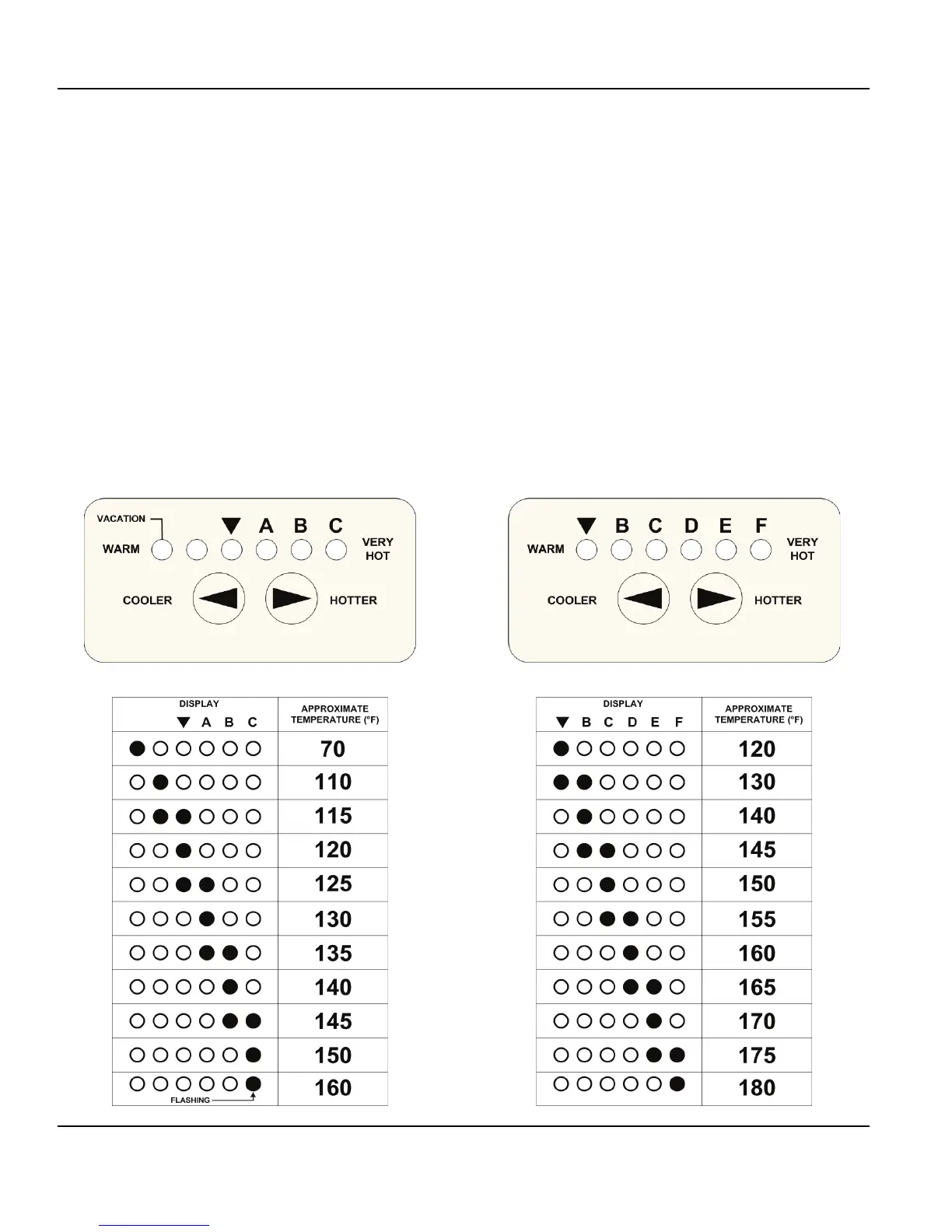

Residential and commercial Intelli-Vent controls differ in appearance:
• The far left LED light is green on the residential control and the remaining 5 LEDs
are yellow.
• On the commercial control all six LEDs are yellow.
• The residential control has a “vacation’ temperature setting (70°F) and it is
referenced on the display.
• There is no vacation setting on a commercial control.
• The residential control uses an inverted triangle (delta symbol) above the third
LED and uses A, B, and C as temperature set point references.
• The commercial control places the inverted triangle above the far left LED and
uses B, C, D, E, and F for temperature set point references.
Residential
Commercial
