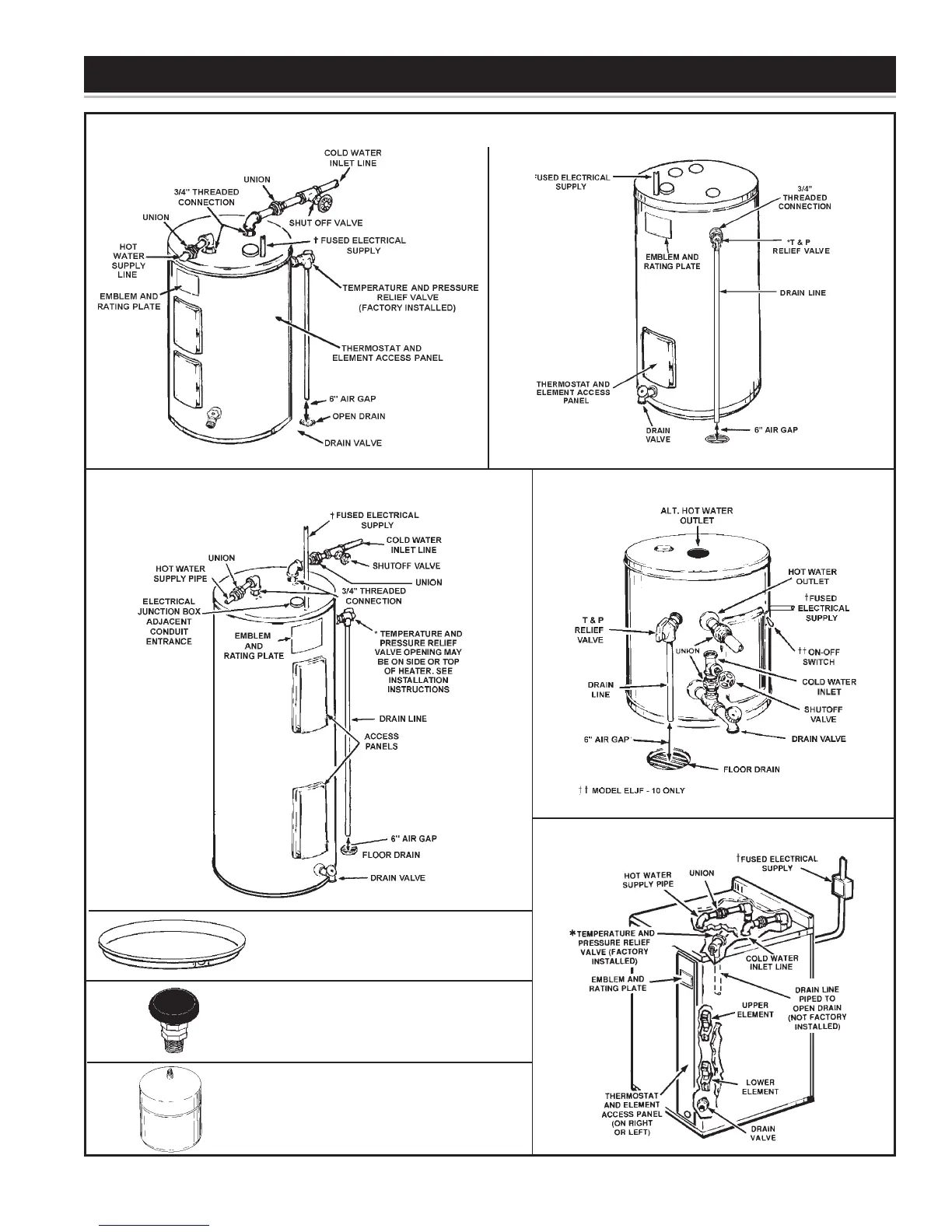

TYPICAL INSTALLATION
FIGURE 1.
UPRIGHTS
COMPACTS
TABLE TOPS
INSTALL VACUUM RELIEF IN COLD WATER
INLET LINE AS REQUIRED BY LOCAL CODES.
INSTALL SUITABLE DRAIN PANS UNDER HEATERS
TO PREVENT DAMAGE DUE TO LEAKAGE. REFER
TO WATER HEATER LOCATION ON PAGE 8.
INSTALL THERMAL EXPANSION TANK OR DEVICE
IF WATER HEATER IS INSTALLED IN A CLOSED
WATER SYSTEM.
