Embedded Controller AEC-6850
Chapter 1 General Information 1-8

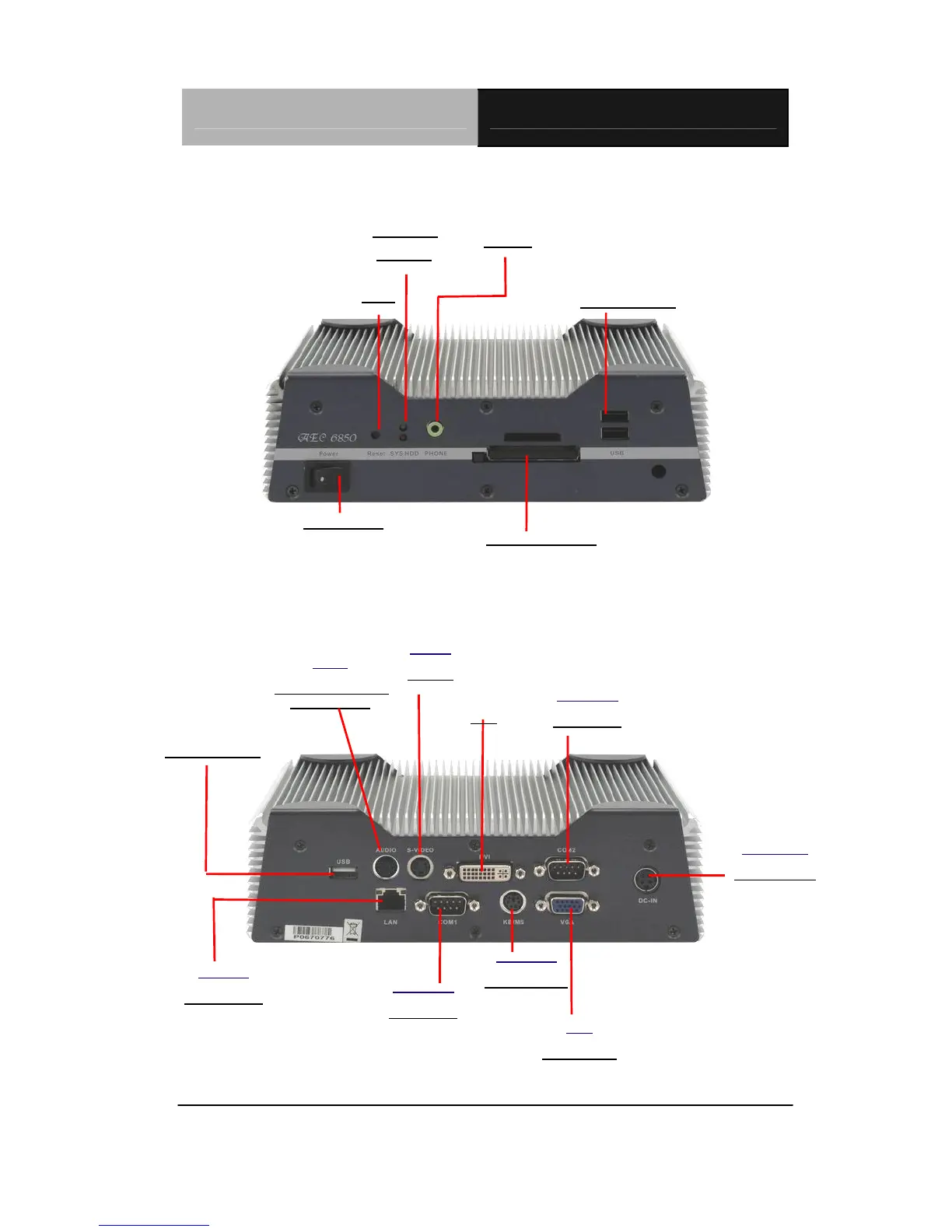

Front Side
Rear Side
TV-Out
S-Video
Ethernet
RJ-45, 10/100
Audio
Mini-Din 9-pin Line
Out/In, MIC In
Line out
USB 2.0 Port x 2
HDD LED
Reset
Power Switch
4-in-1 Card Reader
DVI
KB/Mouse
Mini-DIN 6-pin
VGA
D-sub 15-pin
Serial port
D-sub 9-pin
Serial port
D-sub 9-pin
USB 2.0 Port x 1
Power LED
Power Inlet
Mini-Din 4-pin
