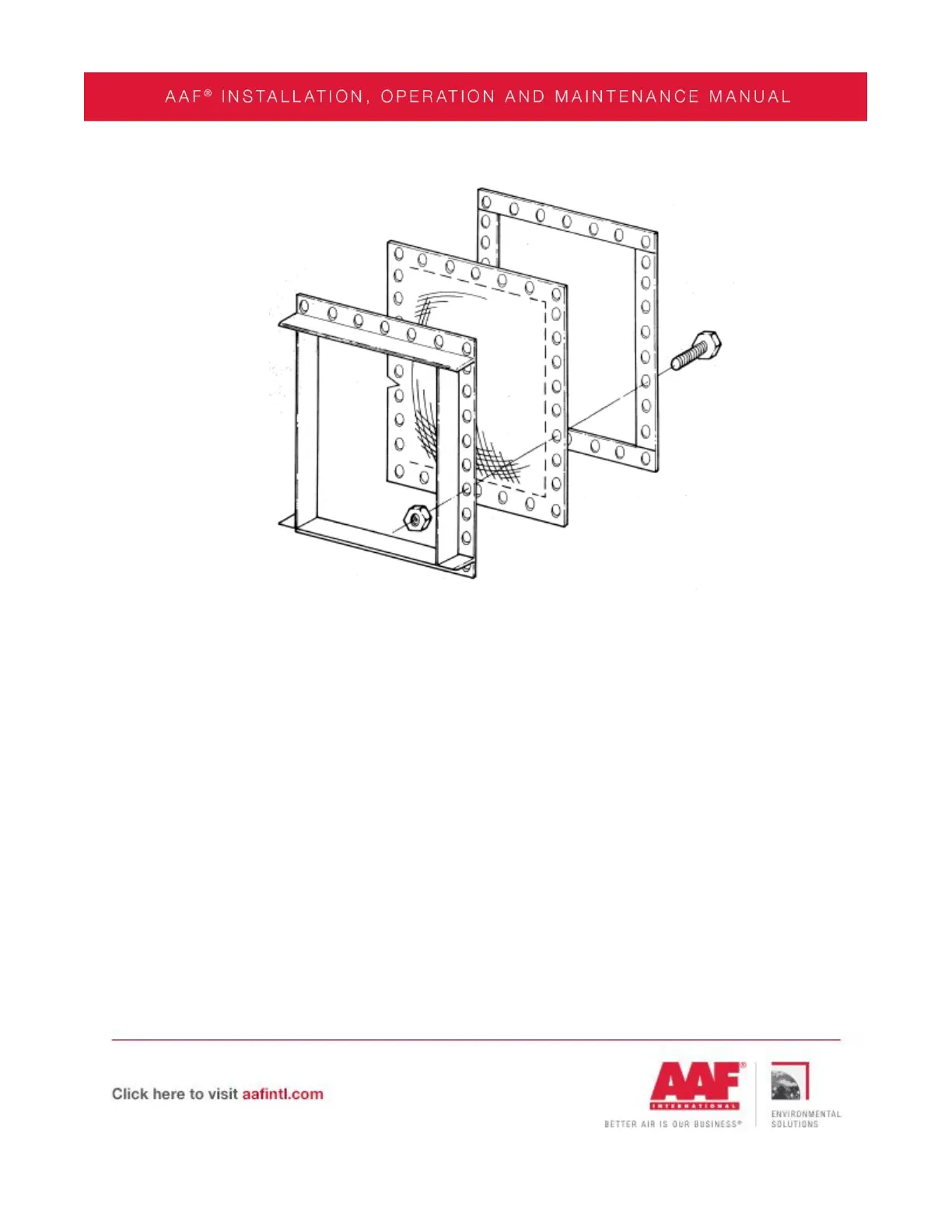

Typical Explosion Vent Installation.
To ensure proper installation of your explosion vent, carefully read the separate
manufacturer’s explosion vent installation guide.
WARNING: personal injury, death, and/or property damage can result from material
discharge during venting.
10.3 Explosion Vent Burst Sensor
All standard explosion vents come with a burst sensor. This can be connected to an
AAF Control Center or to the customer’s controls to shut down the unit when an event
occurs.
The magnetic sensor is suitable for use in Class I and II, Division I, Groups A to G.
Under normal operation, when the disk is closed, the switch is closed. When the disk
opens, the switch opens (no electrical flow).
The connection cable is two wire, 3 feet long and has a voltage of 30VDC and current
of 10 mA. This cable will be wired on site.
