OIL/AIR REGULATION . OM5560_95#A.2

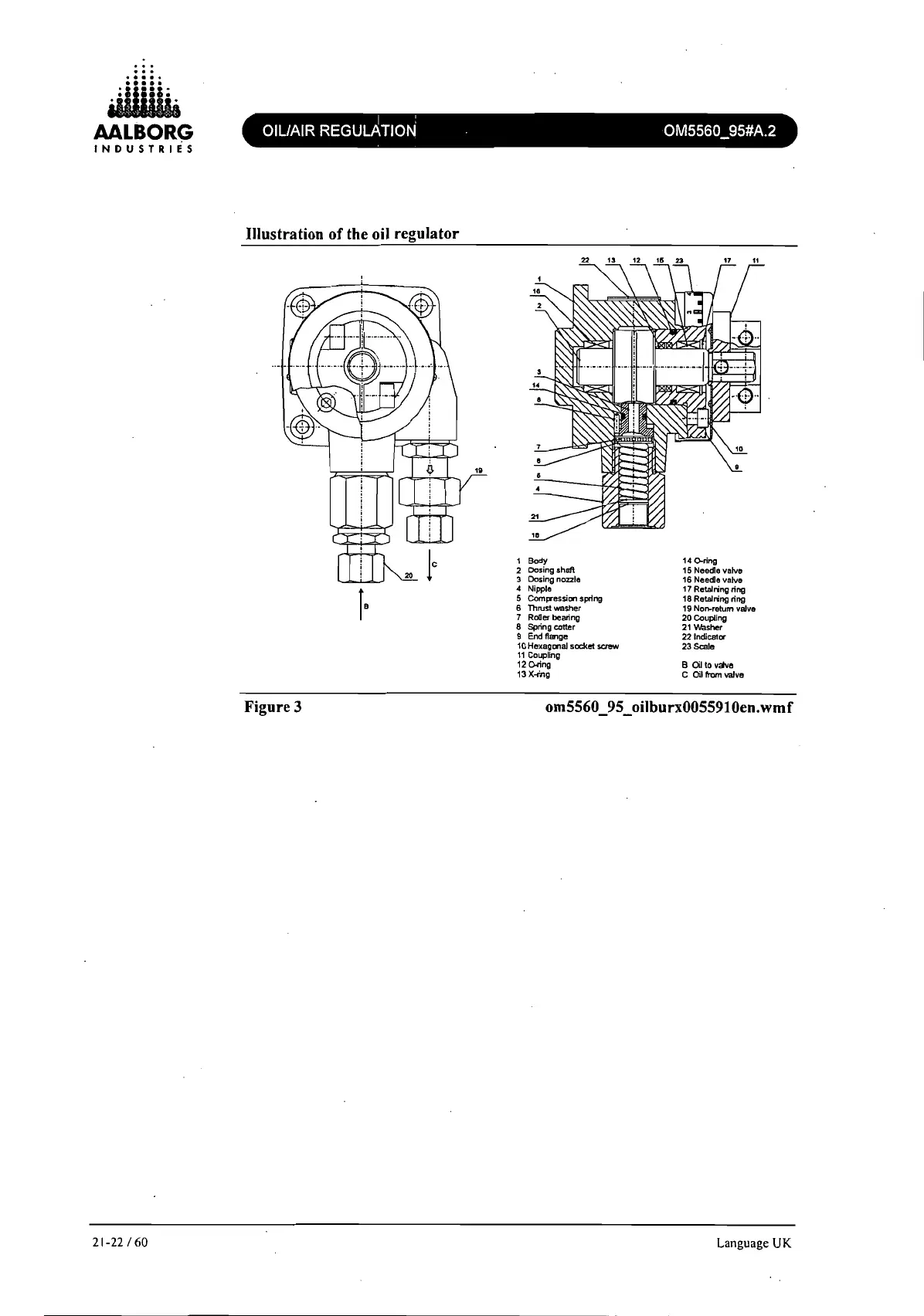

Illustration of the oil regulator
Figure 3
1 Body
2 Dosing shaft
3 Dosing nozzle
4 Nipple
5 Compression spring
6 Thrust washer
7 RoUer bearing
8 Spring cotter
9 Endflange
10 Hexagonal secket screw
11 Coupling
12 C-ring
13X-ting
14 O-ring
15 Needle valve
16 Needle valve
17 Retaining ring
18 Retaining ring
19 NOll-retum valva
20 Coupling
21 'Mlsher
221ndicatcr
23 Scale
B Oil to valve
C Oil from valve
