BURNER OPERATION OM5560_98#A.2

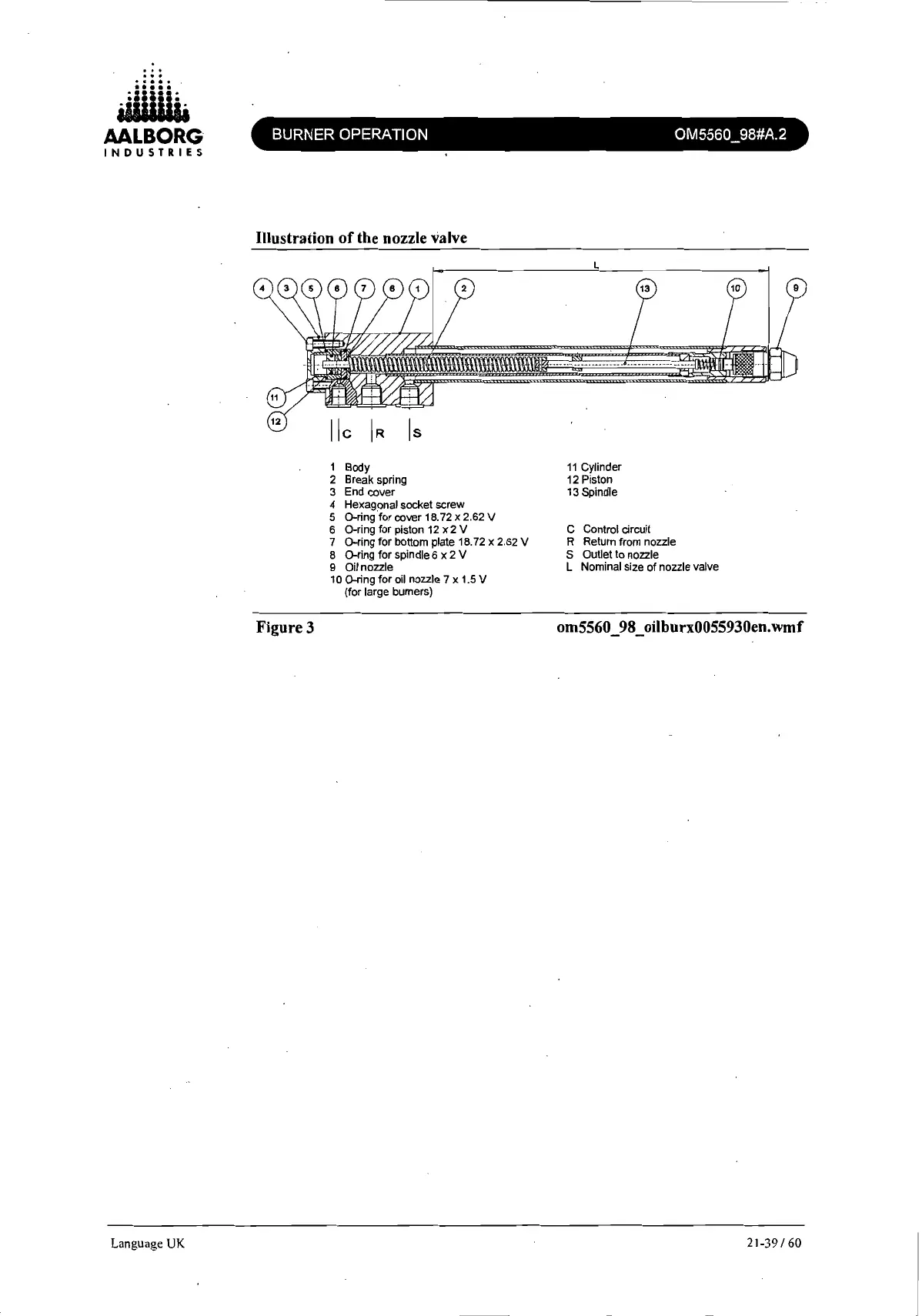

Illustration
of
the nozzle valve
Figure 3
1 Body
2 Break spring
3 End cover
4 Hexagonal socket screw
5 O-ring 'for cover 18.72 x 2,62 V
6
O-ring for piston 12 x 2 V
7 O-ring for bottom plate 18.72 x 2.62 V
8
O-ring for spindle 6 x 2 V
9 Oilnozzle
10 O-ring for oil nozzle 7 x 1.5 V
(for large bumers)
11
Cylinder
12 Piston
13 Spindle
C Control circuit
R Retum from nozzle
S Outlet to nozzle
L Nominal size of nozzle valve
