6
aux
4 5 6
7 8 9 10 11 12
1 2 3
2 1
3

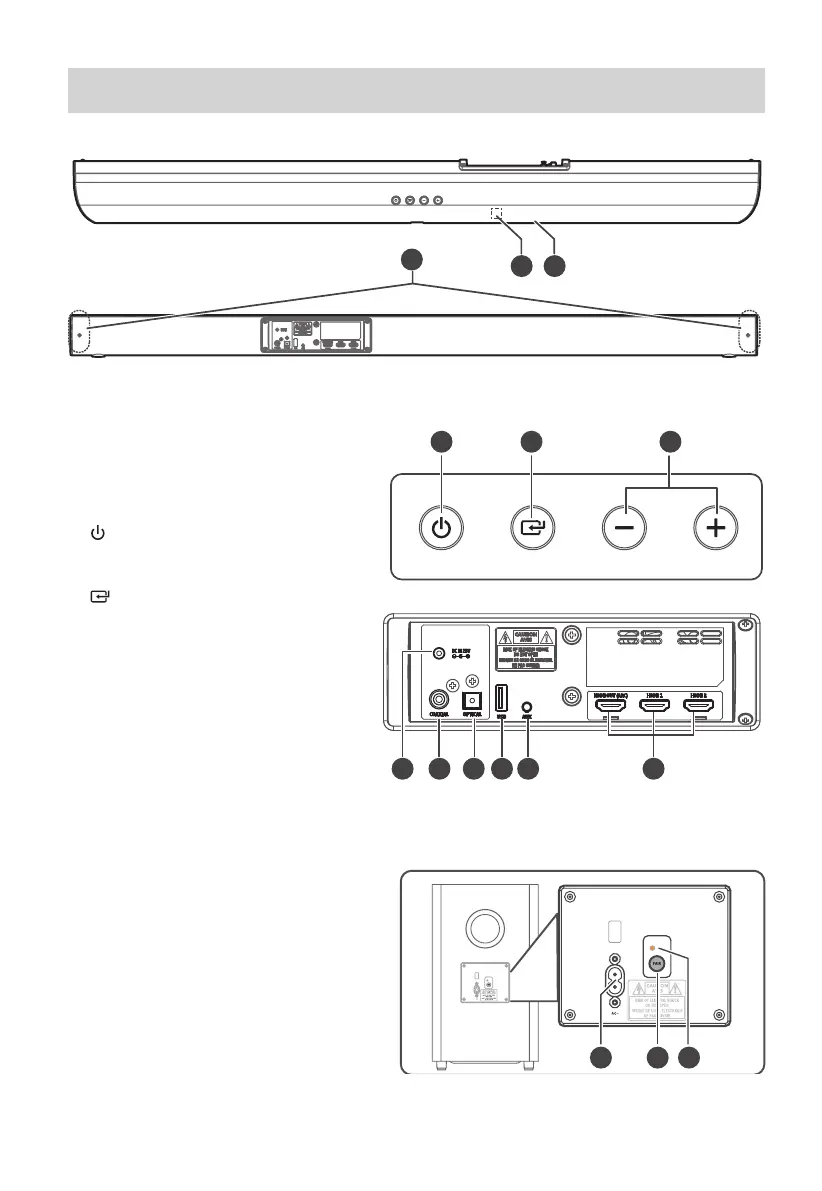

Identifying the Parts
Main Unit
1 Display Window
Show the current status.
2 Remote Control Sensor
Receive signal from the r
emo
te control.
3 Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
4 (ON/OFF) button
Switch the unit between ON and Standby
mode.
5 (SOURCE) button
Select the play function.
6 VOL+/VOL- buttons
Increase/decrease the volume level.
7 DC IN 23V Socket
Connect to adapter.
8 COAXIAL Socket
9 OPTICAL Socket
10 USB Socket
Insert the USB device to play music.
11 AUX Socket
Connect to an external audio device.
12 HMDI Sockets
Connect to a TV via HDMI cable.
Wireless Subwoofer
1 AC~ Socket
Connect to power.
2 PAIR button
Press activate the pairing function between
the main unit and the subwoofer.
3 PAIR Indicator
Light up solidly when the pairing succeed.
