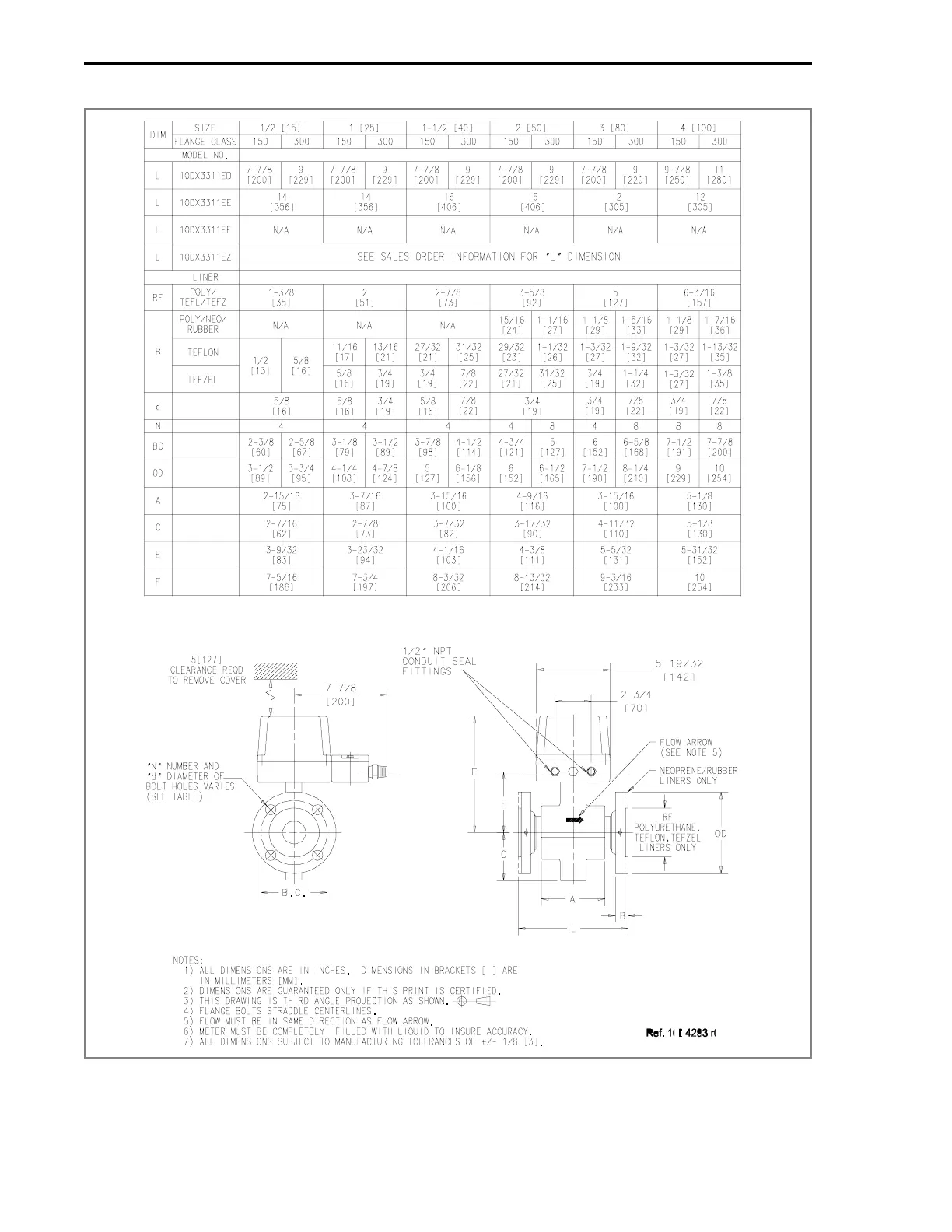

FIGURE 2-3. OUTLINE DIMENSIONS, 1/2-4 INCH INTEGRAL
CONVERTER WITH ANSI FLANGES
Ref. OD-10D-4293 r0
Series 10DX3000 Magnetic Flowmeter Instruction Manual
2-6
