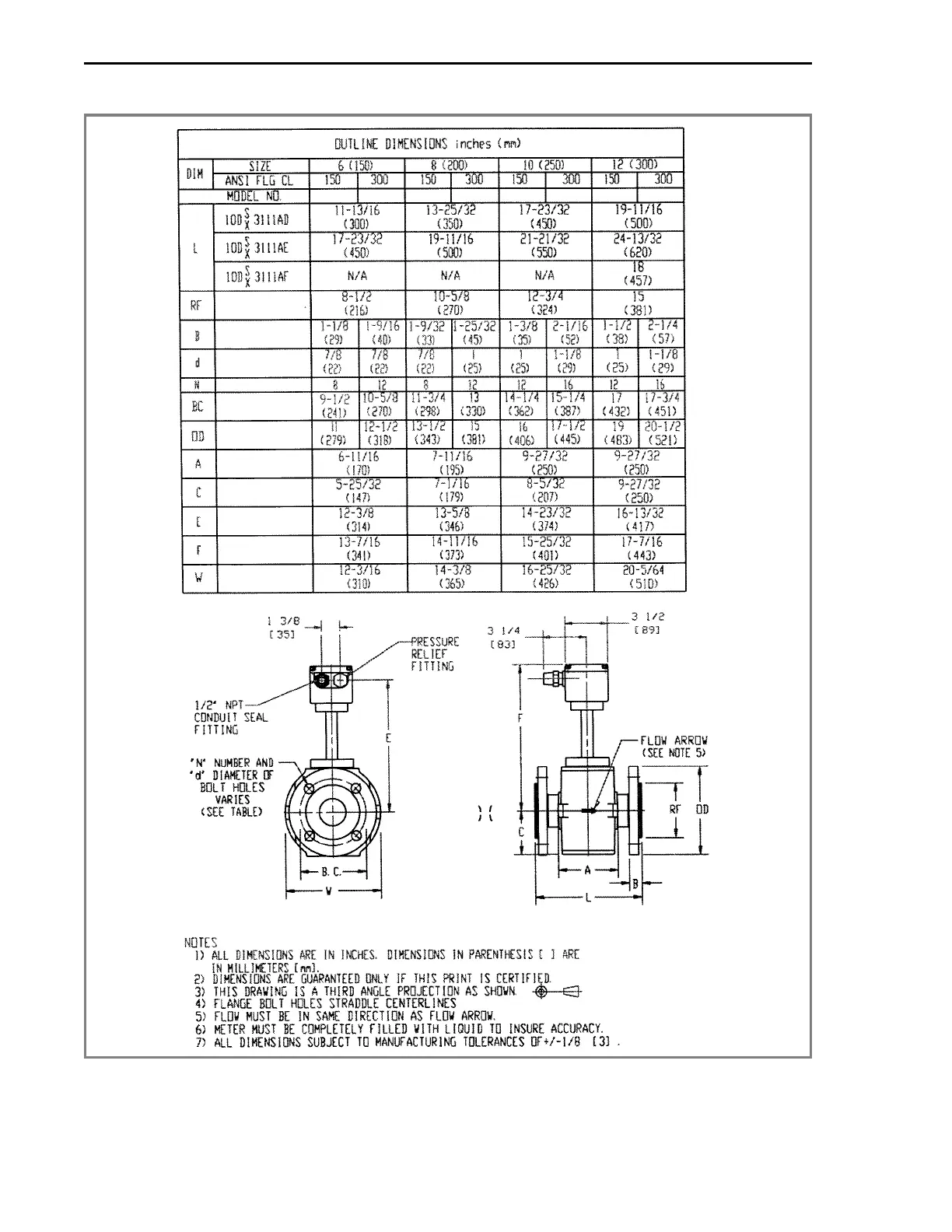

FIGURE 2-9. OUTLINE DIMENSIONS, 6-12 INCH REMOTE CONVERTER
WITH ANSI FLANGES, HI-TEMP
Ref. OD-10D-4127 r3
Series 10DX3000 Magnetic Flowmeter Instruction Manual
2-12
